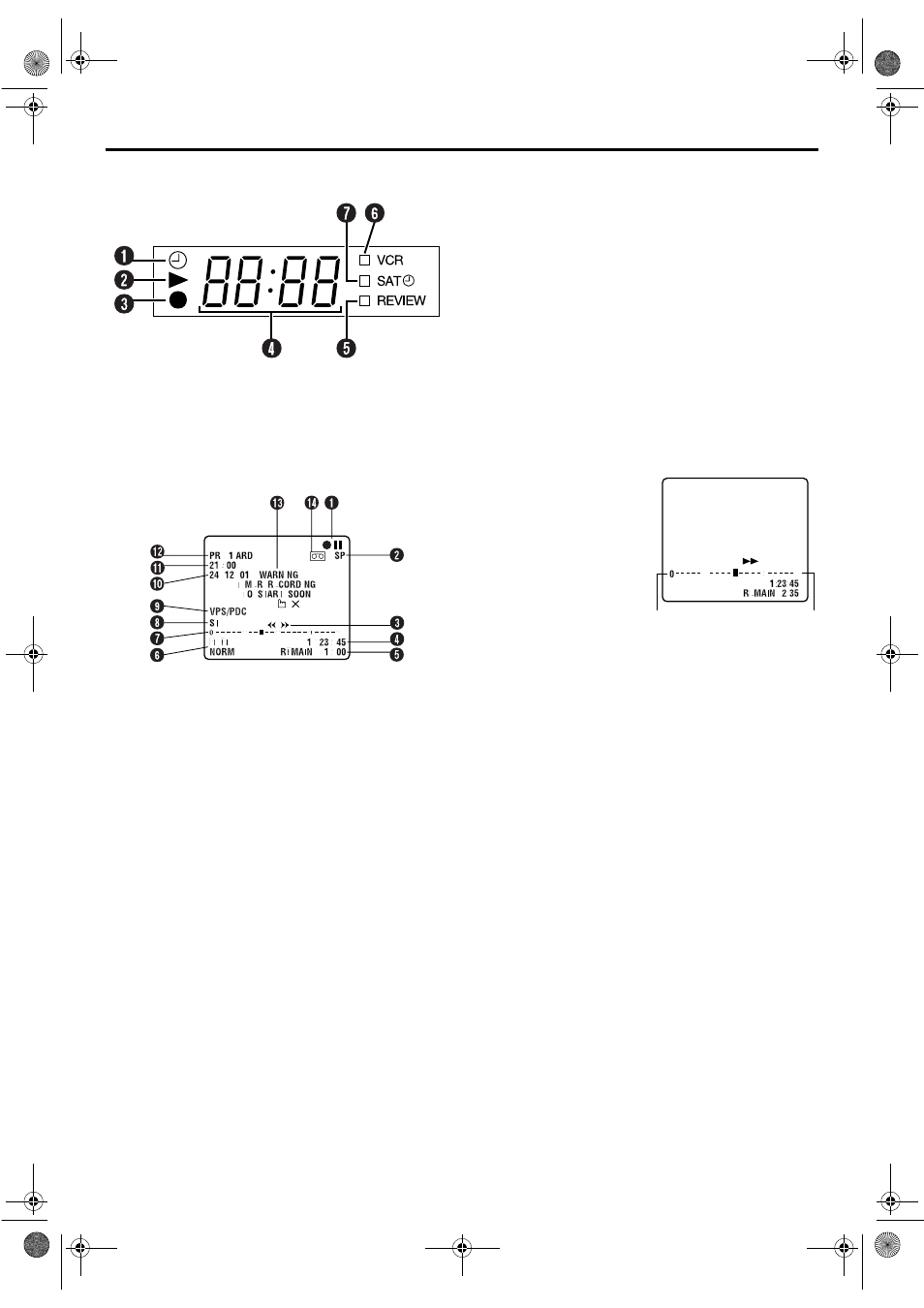

FRONT DISPLAY PANEL
A “Timer” Indicator ੬ pg. 25, 27
B Play Indicator
C Record Indicator
D Channel/Clock Display ੬ pg. 11
To switch display, press – –:– –. Channel position is not
displayed during playback.
Mode Display (L-1, L-2 or SAt*)
* When “L-2 SELECT” is set to “SAT” (
੬
pg. 39 ), “SAt” appears
instead of “L-2”.
E Instant REVIEW Indicator ੬ pg. 18
F VCR Indicator ੬ pg. 21
G SAT # Indicator ੬ pg. 30
ON-SCREEN DISPLAY
When “O.S.D.” is set to “ON” (
੬
pg. 37), various
operational indicators appear on the TV screen.
A Operation mode indicators
B Tape speed SP/LP/EP
* EP is for NTSC playback only.
C Tape direction
D Counter display ੬ pg. 22
E Tape remaining time indicator ੬ pg. 22
F Audio mode display ੬ pg. 19
G Tape position indicator
The tape position indicator
appears on the TV screen
when you press
3 or
5 from the Stop mode
or perform an Index Search
(
੬
pg. 19). The position of
“ q ” in relation to “0”
(beginning) or “+” (end)
shows you where you are
on the tape.
NOTE:
Depending on the type of tape used, the tape position
indicator may not appear correctly.
H Type of broadcast ੬ pg. 22
I VPS/PDC Indicator ੬ pg. 25, 27
J Current day/month/year
K Clock display
L Channel position number and station name/
Auxiliary input indicator (L-1, L-2 or SAT*)
* When “L-2 SELECT” is set to “SAT” (
੬
pg. 39), “SAT” appears
instead of “L-2”.
M Timer warning display
A warning appears on the TV screen to tell you that the
timer-recording is to start in 5 minutes if you’re not in the
Timer mode at that time. The warning blinks for the entire 5
minutes leading up to the start of timer recording. To clear
the display, press
& .
N Cassette loaded mark
Beginning End
