40
EN
INDEX (cont.)

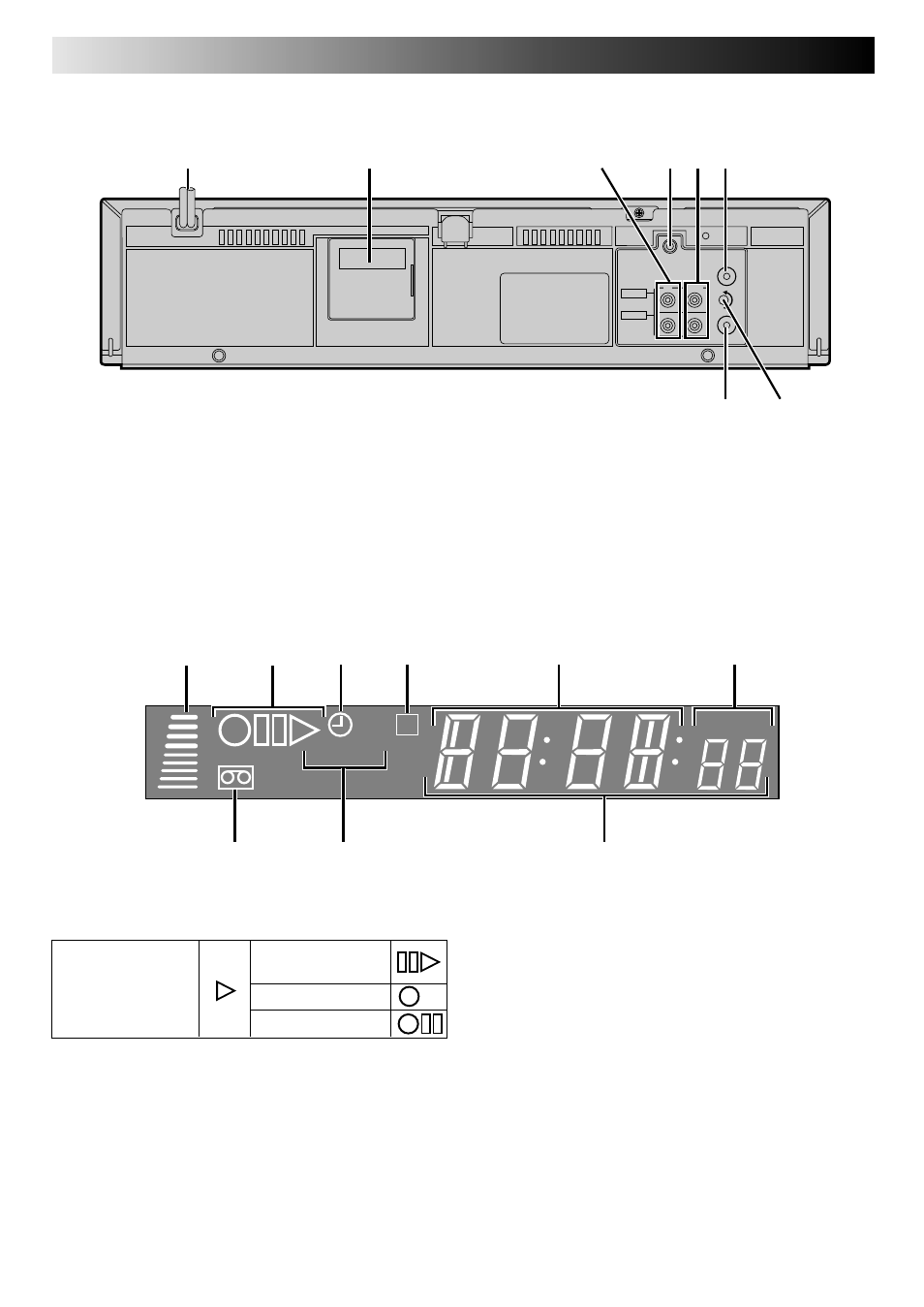

REAR VIEW
ANT. IN
RF OUT
IN OUT
AUDIO
VIDEO
32
40
PAUSE
6 4 3 2
8 7
1 5
5 VIDEO/AUDIO Output Connectors ੬ pg. 3, 26
6 ANT. IN Connector ੬ pg. 3
7 RF OUT Connector
੬ pg. 3
8 RF Output Channel Adjustment Screw ੬ pg. 5
1 Mains Power Cord ੬ pg. 3
2 Lithium Battery Compartment ੬ pg. 5
3 VIDEO/AUDIO Input Connectors
੬ pg. 26, 27
4 Remote PAUSE Connector
੬
pg. 27
(HR-J448EE only)
DISPLAY PANEL
SPLPEP
REVIEW M
3 4 2 1
9 7 8
5 6
1 B.E.S.T. Picture System Display ੬ pg. 16
2 Symbolic Mode Indicators
3 "Timer" Indicator ੬ pg. 23
4 Counter Memory Indicator ੬ pg. 13
5 Channel*/Mode Display ੬ pg. 14
*Channel position 1 will be displayed as "CH
1".
Clock Display
੬ pg. 8
6 Instant REVIEW Indicator ੬ pg. 13
7 "Cassette Loaded" Mark
8 Tape Speed Indicators
੬ pg. 14
9 Counter Display ੬ pg. 15
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
