2 | JL Audio - C5-525x Owner’s Manual
C5 -52 5x • U .S. Pat ent #6,229,902 • Assem ble d in Ge rm an y
A F
B
G
E
D
C
C
B
A

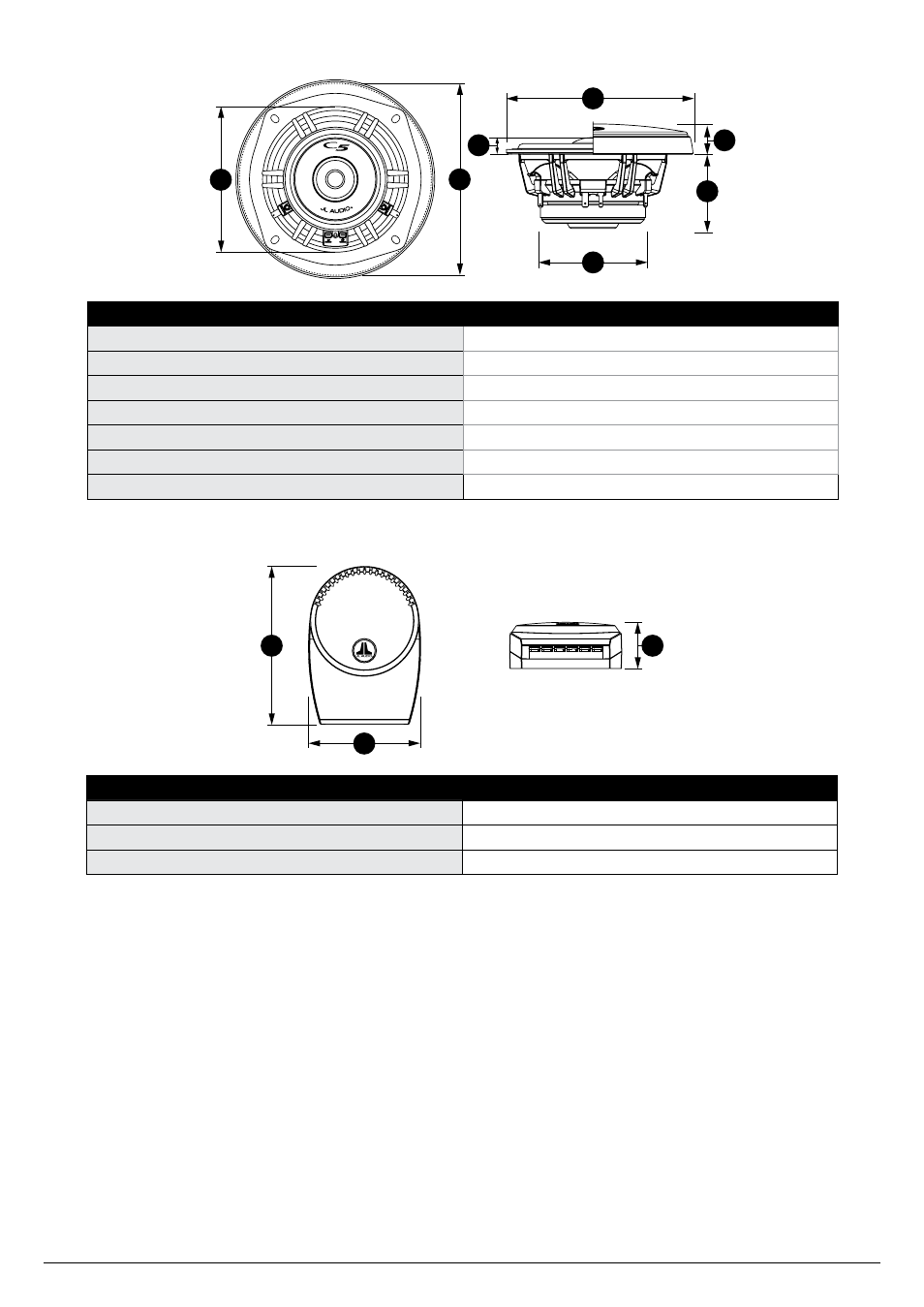

Crossover network Physical Dimensions
Height (a) 4.72 in. / 119.9 mm
width (B) 3.36 in. / 85.3 mm
Depth (C) 1.44 in. / 36.6 mm
woofer Physical Dimensions
Frame outer Diameter (a) 5.80 in. / 147.3 mm
Grille Tray outer Diameter (B) 6.02 in. / 152.9 mm
magnet outer Diameter (C) 3.15 in. / 80.0 mm
Frontal Tweeter Protrusion (D) 0.54 in. / 13.7 mm
Frontal Grille Protrusion (e) 0.92 in. / 23.5 mm
mounting Hole Diameter (F) 4.48 in. / 113.8 mm
mounting Depth (G) 2.28 in. / 57.9 mm
