15
Video device connections
Composite video connection
Plug the composite video cable’s (not included) yellow connector into the
video-out connector on your video device. Plug the other yellow connector
into the yellow Video In connector on the projector. Plug the included audio
adapter’s white connector into the left audio out connector on your video
device; plug the audio adapter’s red connector into the right audio out con-
nector on the video device. Plug the included audio cable into the black con-
nector on the audio adapter. Plug the other end of the audio cable into the
blue Audio In connector on the projector.
Keep in mind that video output from composite connections are not as high
quality as S-video or component.
S-video connection
If your video device uses a round, four-prong S-video connector, plug an S-
video cable into the S-video connector on your video device and into the S-
video
connector on the projector. Use the audio cable and the audio adapter
as described above.
Keep in mind that S-video delivers higher quality video output than com-
posite, but not as high quality video output as component.

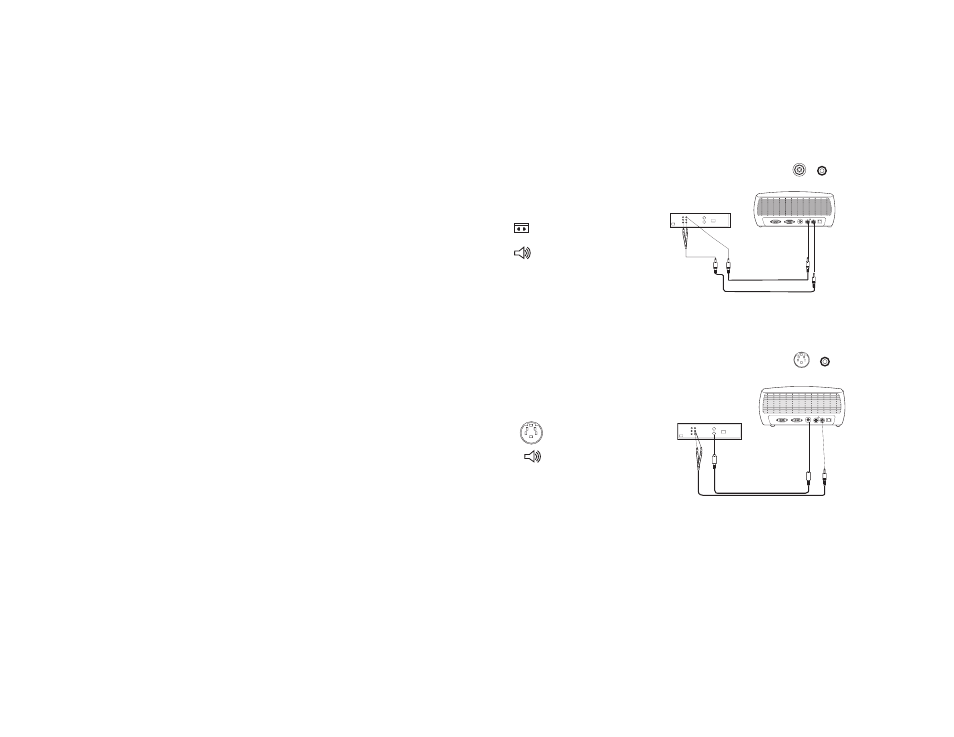

connect
video
cable and audio cable (via
the audio adapter)
connect S-video and audio
cable (via
audio adapter)
