1.2. MiniTower Pro
TM
Components
1

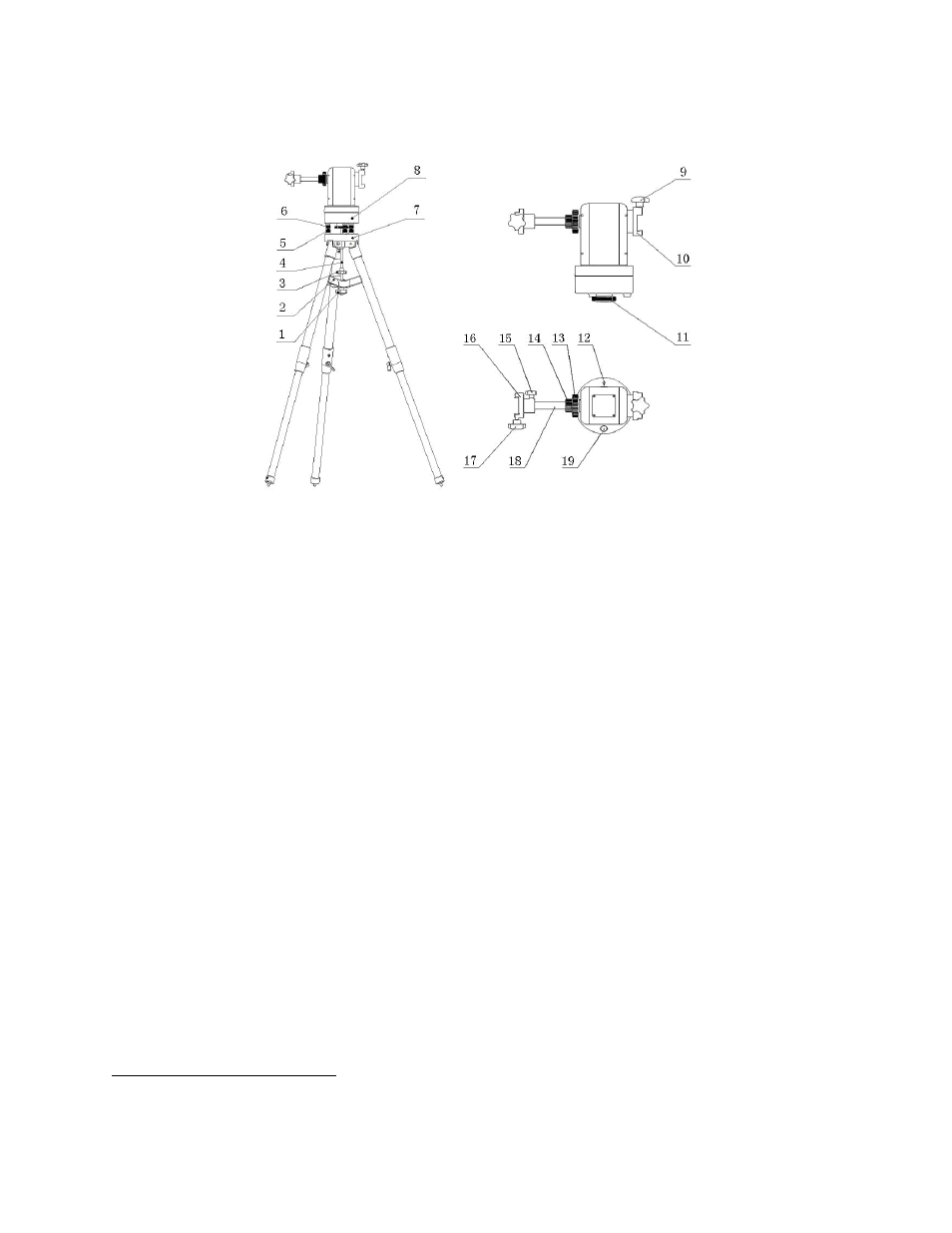

Figure 4. MiniTower Pro Components
Shown in the picture:
1. Tripod Lock
2. Tripod Support
3. Tripod Knob
4. Tripod Rod
5. Level Adjustment Lock
(not included
with MiniTower Pro)
6. Level Adjustment Screw
7. Tripod
8. Mount Base
9. Primary Dovetail Lock
10. Primary Dovetail Holder
11. Azimuth Clutch Lock
12. South Alignment Mark
13. Altitude Clutch Lock
14. Counter Balance Shaft Lock
15. Secondary Dovetail Holder Lock
16. Secondary Dovetail Holder
17. Secondary Dovetail Lock
18. Retractable Counter Weight Shaft
19. Bubble Level Indicator
Not shown in picture:
• 8401 Hand Controller
• Controller
Cable
• AC Adapter
• 12V DC Adapter with Car Lighter Plug
• USB Cable
• Counter Weight
• Counter Weight Lock Pin
• Counter Weight Lock
• Hard Travel Case
1 The contents may vary slightly by generation.
