Page 107
101
Using Local Management
C
H
A
P
T
E
R
5
Local Management

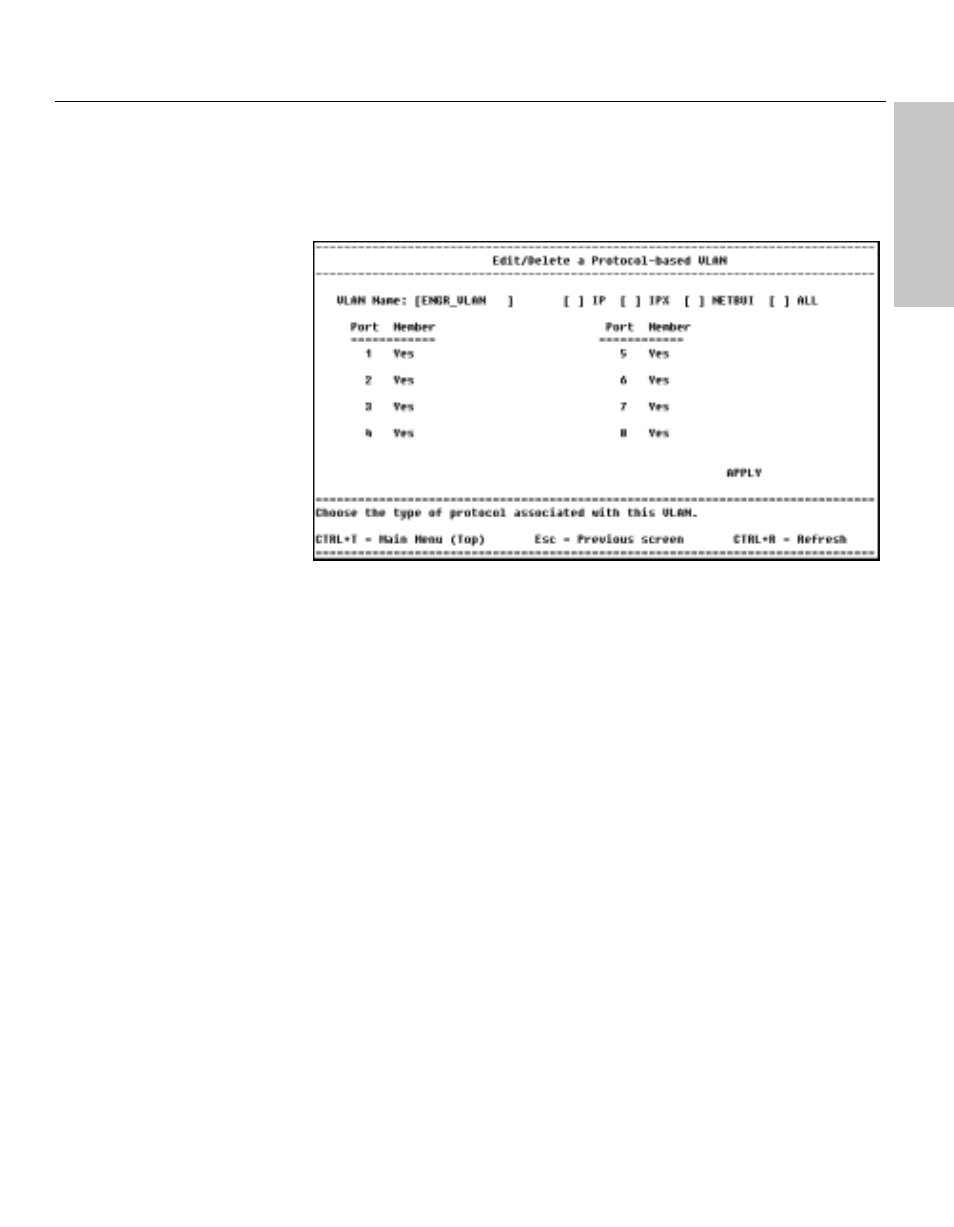

Edit a Protocol-based VLAN (Configure
Membership)
Description
Use this screen to identify which ports are members of the VLAN.
VLAN Name: Displays the name of the VLAN you are editing.
Protocol: Displays the protocol assigned to the VLAN.
Member: Determines which ports are part of the VLAN being created.
Press
z to toggle the following options:
The port is a member of the VLAN.
The port is not a member of the VLAN.
–
The port is part of an aggregated link.
