5 TSS-SAT1200

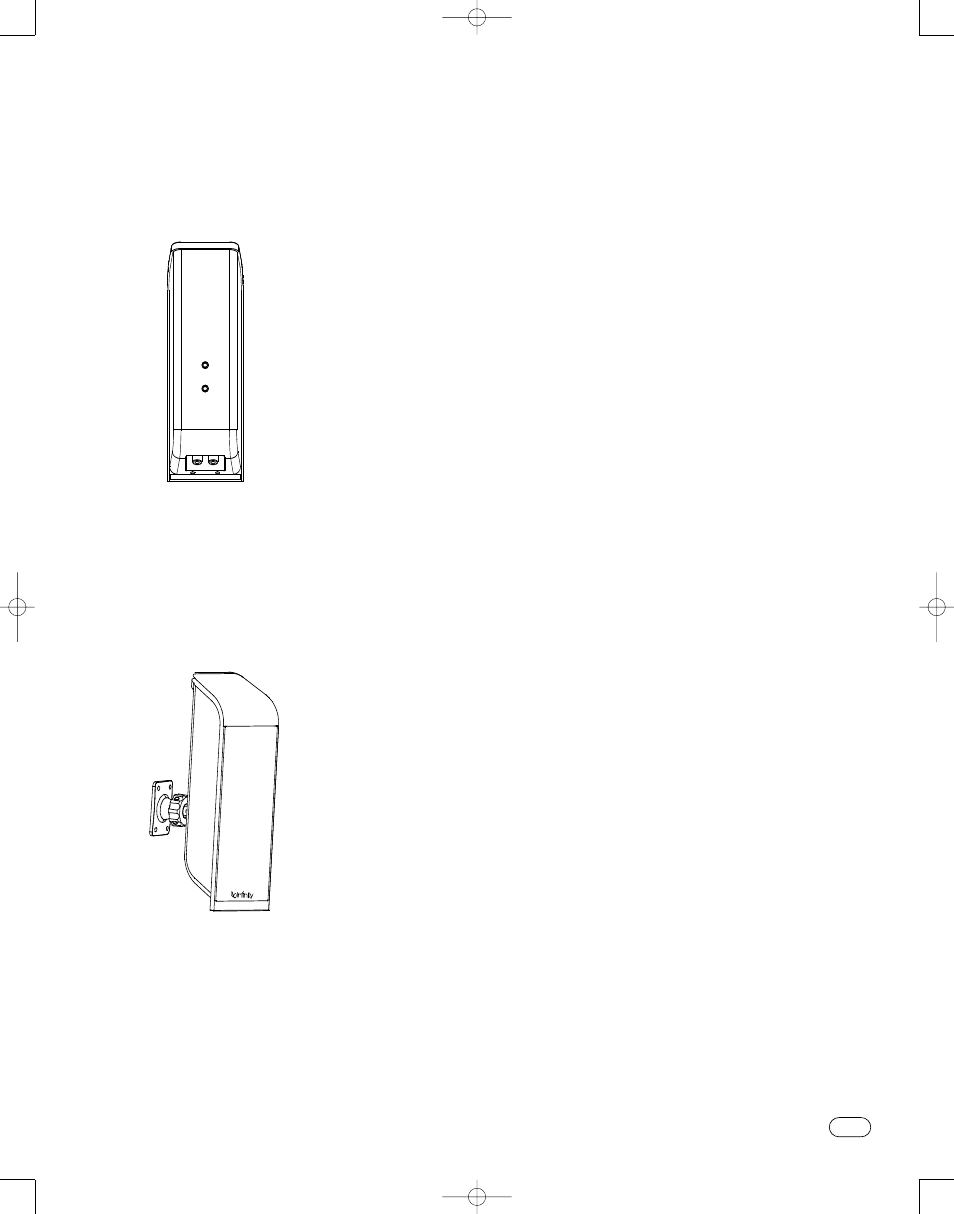

Step 5. Screw the ball and shaft assembly (B) to the lower 1/4"-
20 insert on the rear of the satellite, until it is fully seated. Back
out 1/2 of a turn and tighten the nut against the speaker. Securely
tightening this nut against the speaker enclosure is very important;
otherwise, performing Step 7 may dislodge the threaded insert on
the speaker enclosure, rendering it unusable.
Step 6. Attach speaker wire as shown on page 7.
Step 7. Drop round collar (C) over ball and shaft assembly (B)
that is mounted to the speaker with the finished side of the collar
facing the rear of the speaker.
Step 8. Carefully push the ball straight into the socket mounted
on the wall, angle the speaker as desired and tighten the collar
using the enclosed metal bar.
Figure 3. Bracket on wall.
®
®
