Operator’s manual, Pd10p-x, 1” diaphragm pump

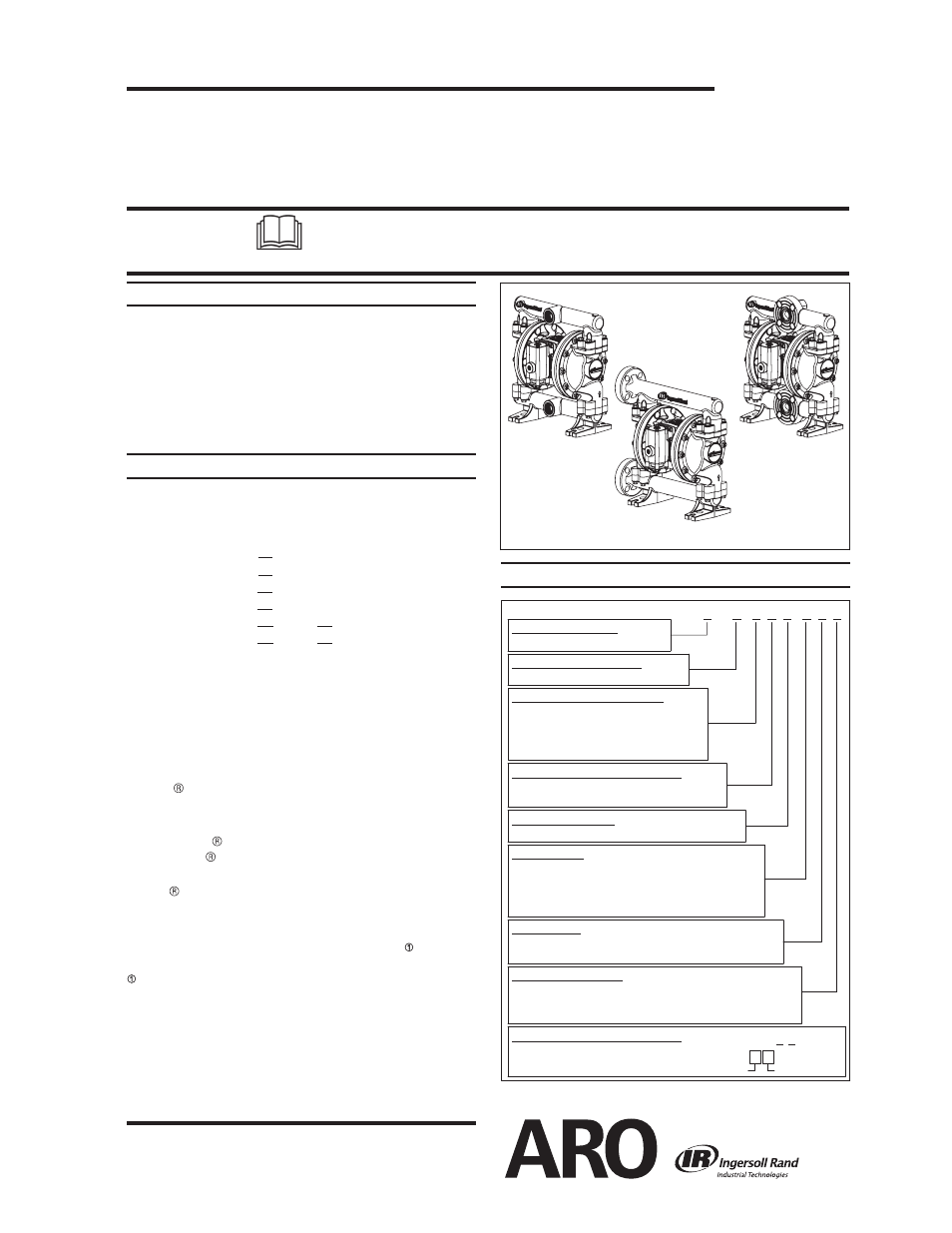

background image

INGERSOLL RAND COMPANY LTD

209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 276-4658

y

FAX (800) 266-7016

© 2010

CCN 15206378

OPERATOR’S MANUAL

INCLUDING: OPERATION, INSTALLATION & MAINTENANCE

RELEASED:

11-10-03

REVISED:

8-13-10

(REV. 12)

1” DIAPHRAGM PUMP

1:1 RATIO (NON-METALLIC)

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

PD10P-X

PE10P-X

SERVICE KITS

Refer to Model Description Chart to match the pump material
options.
637397 for air section repair (see page 6).
637396-XX for fluid section repair (see page 4). NOTE: This
kit also contains several air motor seals which will need to be
replaced.
637395-7 major air valve assembly (see page 7).

PUMP DATA

Models . . . . . . see Model Description Chart for “-XXX”.
Pump Type . . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart.
Weight . . . . . . . PX10P-FKS-XXX . . . . . . . 27.15 lbs (12.32 kgs)
PX10P-FPS-XXX . . . . . . . 19.87 lbs (9.01 kgs)
PX10P-YKS-XXX . . . . . . . 26.72 lbs (12.12 kgs)
PX10P-YPS-XXX . . . . . . . 19.59 lbs (8.89 kgs)
PX10P-AKS-XXX, -BKS . . 25.83 lbs (11.72 kgs)
PX10P-APS-XXX, -BPS . . 19.35 lbs (8.78 kgs)
Maximum Air Inlet Pressure . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Flow Rate (fl ooded inlet) . . . 53.0 g.p.m. (200.6 l.p.m.)
Displacement / Cycle @ 100 p.s.i.g. . . 0.226 gal. (0.86 lit.)
Maximum Particle Size . . . . . . . . . . . . 1/8” dia. (3.2 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . -60

0

to 280

0

F (-51

0

to 138

0

C)

Hytrel . . . . . . . . . . . . . . . . . . . . . -20

0

to 150

0

F (-29

º

to 66

0

C)

Nitrile . . . . . . . . . . . . . . . . . . . . . . 10

0

to 180

0

F (-12

º

to 82

0

C)

Polypropylene . . . . . . . . . . . . . . 35

0

to 175

0

F (2

0

to 79

0

C)

PVDF

(Kynar ) . . . . . . . . . . . . . 10

0

to 200

0

F (-12

0

to 93

0

C)

Santoprene . . . . . . . . . . . . . . . -40

0

to 225

0

F (-40

0

to 107

0

C)

PTFE

. . . . . . . . . . . . . . . . . . . . . . . . . 40

0

to 225

0

F (4

0

to 107

0

C)

Viton . . . . . . . . . . . . . . . . . . . . . -40

0

to 350

0

F (-40

0

to 170

0

C)

Dimensional Data . . . . . . . . . . . . . . . . see page 8
Mounting Dimension . . . . . 5.032” x 10.050” (127.8 mm x 255.3 mm)
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . 79.7 db(A)

The pump sound pressure levels published here have been updated to an Equivalent

Continuous Sound Level (L

Aeq

) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP

S5.1 using four microphone locations.

NOTICE: All possible options are shown in the chart, however,
certain combinations may not be recommended, consult a
representative or the factory if you have questions concerning
availability.

MODEL DESCRIPTION CHART

P X 10 P - X X S - X X X

PX10P - XXS - X X X

637396 - X X

Diaphragm

Ball

FLUID SECTION SERVICE KIT SELECTION

EXAMPLE: MODEL # PD10P-FPS-PAA
FLUID SECTION SERVICE KIT # 637396-AA

Seat Material
H - Hard 440 Stainless Steel
K - PVDF (Kynar)
P - Polypropylene

A - Santoprene

M - Medical Grade Santoprene

G - Nitrile

V - Viton

Diaphragm Material
A - Santoprene
C - Hytrel

T - PTFE / Santoprene

G - Nitrile

V - Viton

Hardware Material
S - Stainless Steel

Fluid Caps & Manifold Material
K - PVDF (Kynar)
P - Polypropylene

Fluid Connection / Location
A - 1" N.P.T.F. - 1
B - Rp 1 - 11 BS
F - 1" A.N.S.I. / DIN Flange / End
Y - 1" A.N.S.I. / DIN Flange / Center

Center Section Material

P - Polypropylene

Ball Material

C - Hytrel

T - PTFE

Electronic Interface
D - None

E - Available

PX10P-AXS-XXX
PX10P-BXS-XXX

PX10P-YXS-XXX

PX10P-FXS-XXX

Figure 1
