OPERATOR’S MANUAL

650484-X

RELEASED:

1-5-96

REVISED:

6-1-10

(REV. D)

TWO BALL PUMP SERIES

4-1/4” AIR MOTOR
22:1 RATIO
6” STROKE

INCLUDE MANUALS: 66301-X LOWER PUMP END (PN 97999-647) &
S-632 GENERAL INFORMATION MANUAL (PN 97999-624)

SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING

650484-XXX

300 SERIES STAINLESS STEEL

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

x

Use only genuine ARO

R

replacement parts to assure compatible

pressure rating and longest service life.

x

61268 for repair of Air Motor section.
Service Note: The Air Motor Service/Parts Manual is not shipped
with the pump but it is included with each Service Kit. If this Service /
Parts Information is needed, request the Air Motor Operator’s Manu-
al from ARO. (Manual 6544X-X, PN 97999-64).

x

637306-X43 for repair of Lower Pump section.
Refer to the chart on page 2 for description of -XXX options.

SPECIFICATIONS

Model Series

(Refer to option chart)

650484-XXX

. . . . . . . .

Type

Air Operated, Two Ball

. . . . . . . . . . . . . . . . . . . . . . . . . .

Ratio

22:1

. . . . . . . . . . . . . . . . . . . . . . . . . .

Air Motor

65465-B

. . . . . . . . . . . . . . . . . . . . . . .

Motor Repair Kit

61268

. . . . . . . . . . . . . . . .

Motor Diameter

4-1/4” (10.8 cm)

. . . . . . . . . . . . . . . . .

Stroke

6”

. . . . . . . . . . . . . . . . . . . . . . . .

Air Inlet (female)

1/2 - 14 N.P.T.F. - 1

. . . . . . . . . . . . . . . .

Air Exhaust (female)

1-1/4 - 11-1/2 N.P.T.F. - 1

. . . . . . . . . . . . .

Lower Pump End Series

66301-XXX

. . . . . . . . . . .

Lower Pump Repair Kit

637306-X43

. . . . . . . . . . .

Material Inlet (female)

1 - 11-1/2 N.P.T.F. - 1 &

. . . . . . . . . . . .

(male)

2 - 11-1/2 P.T.F. (short)

. . . . . . . . . . . . .

Material Outlet (female)

1 - 11-1/2 N.P.T.F. - 1

. . . . . . . . . . .

Weight

42.9 lbs (19.5 kgs)

. . . . . . . . . . . . . . . . . . . . . . . . .

PERFORMANCE

Air Inlet Pressure Range

30 - 150 p.s.i. (2 - 10.3 bar)

. . . . . . . . . .

Fluid Pressure Range

660 - 3

412 p.s.i. (46 - 235 bar)

. . . . . . . . . .

Maximum Rec’d Cycles / Minute

60

. . . . .

Displacement In

3

Per Cycle

7.5

. . . . . . . . .

Volume / Cycle

4.1 oz. (121 ml)

. . . . . . . . . . . . . . . . . . .

Cycles Per Gallon

30.9

. . . . . . . . . . . . . . . .

Flow @ 60 Cycles / Minute

1.9 g.p.m. (7.2 l.p.m.)

. . . . . . . . . .

Noise Level @ 60 p.s.i. - 40 c.p.m.

81.8 db(A) *

. . . .

* The pump sound pressure level has been updated to an Equivalent Continuous Sound

Level (L

Aeq

) to meet the intent of ANSI S1. 13-1971, CAGI-PNEUROP S5.1 using four

microphone locations.

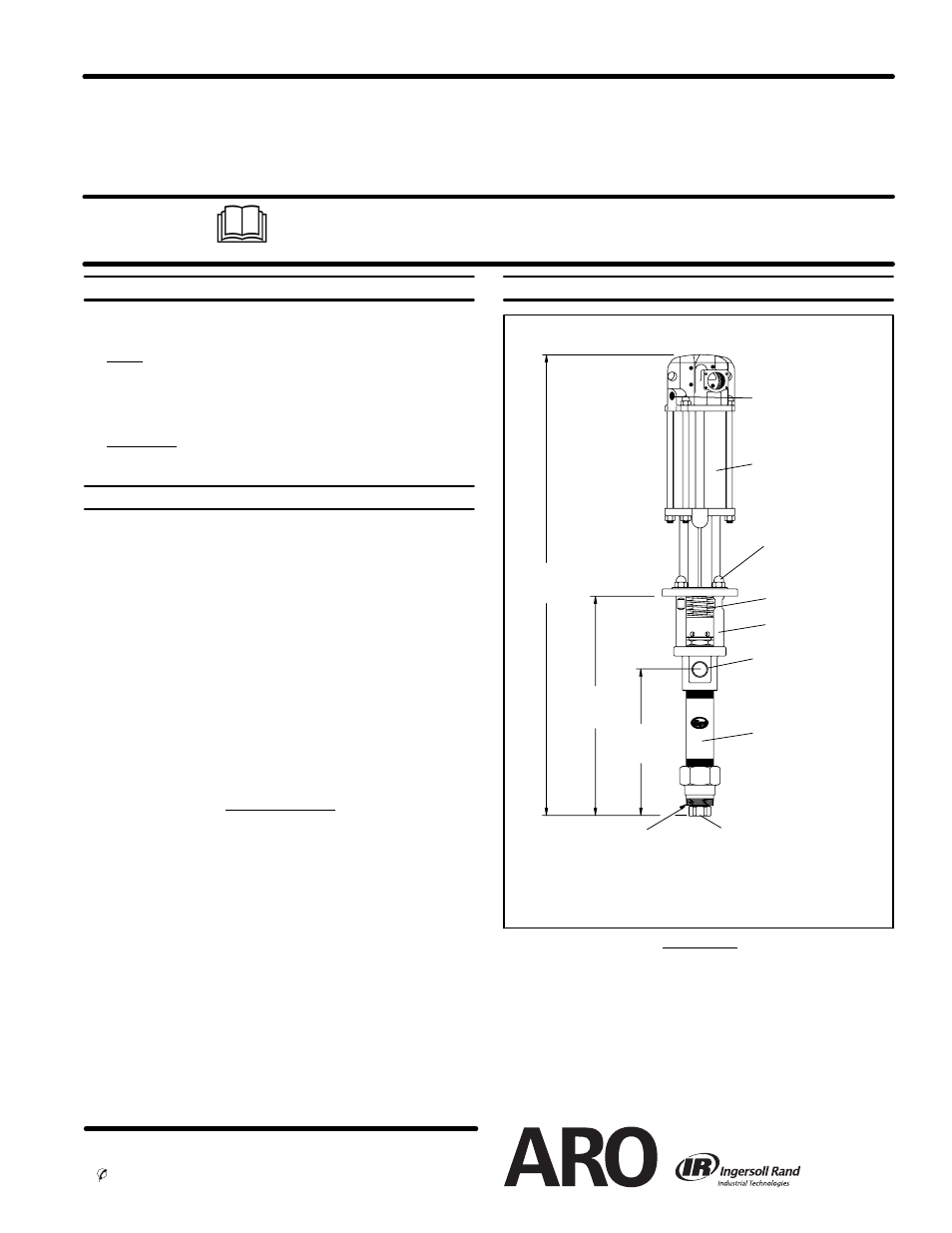

PUMP DATA

Air Motor 65465-B

(See Manual 6544X-X)

FIGURE 1

Material Outlet (female)
1 - 11-1/2 N.P.T.F. - 1

Material Inlet

Lower Pump
66301-XXX

Air Inlet (female)
1/2 - 14 N.P.T.F. - 1

Spacer Section

12-11/16

(322 mm)

1 - 11-1/2 N.P.T.F. - 1
(female inlet)

2 - 11-1/2 P.T.F. SAE
SPEC. SHORT (male inlet)

32

_ FROM AIR EXHAUST

Accessories Available: 91790 Silencer, 66101 Wall Bracket.

NUT Y85-29-C (3)

SPACER ROD 94209 (3)

CONNECTOR
See Figure 2

(See Manual 66301-X)

MODEL 650484-XXX

39-3/4

(1009 mm)

18-15/16

(481 mm)

SPRING 94674

IMPORTANT

This is one of the four documents which support the pump. Re-
placement copies of these forms are available upon request.

= 650484-X MODEL OPERATOR’S MANUAL

- GENERAL INFORMATION - INDUSTRIAL PISTON PUMPS

- 66301-X LOWER PUMP END OPERATOR’S MANUAL

- 6544X-X AIR MOTOR OPERATOR’S MANUAL

www.ingersollrandproducts.com

CCN 99434656

5-19-11

F)

Tested with 91790 silencer installed .

*
