Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in the computer. It provides basic computer functions and supports a variety
of devices that are IBM-installed or that can be installed later.

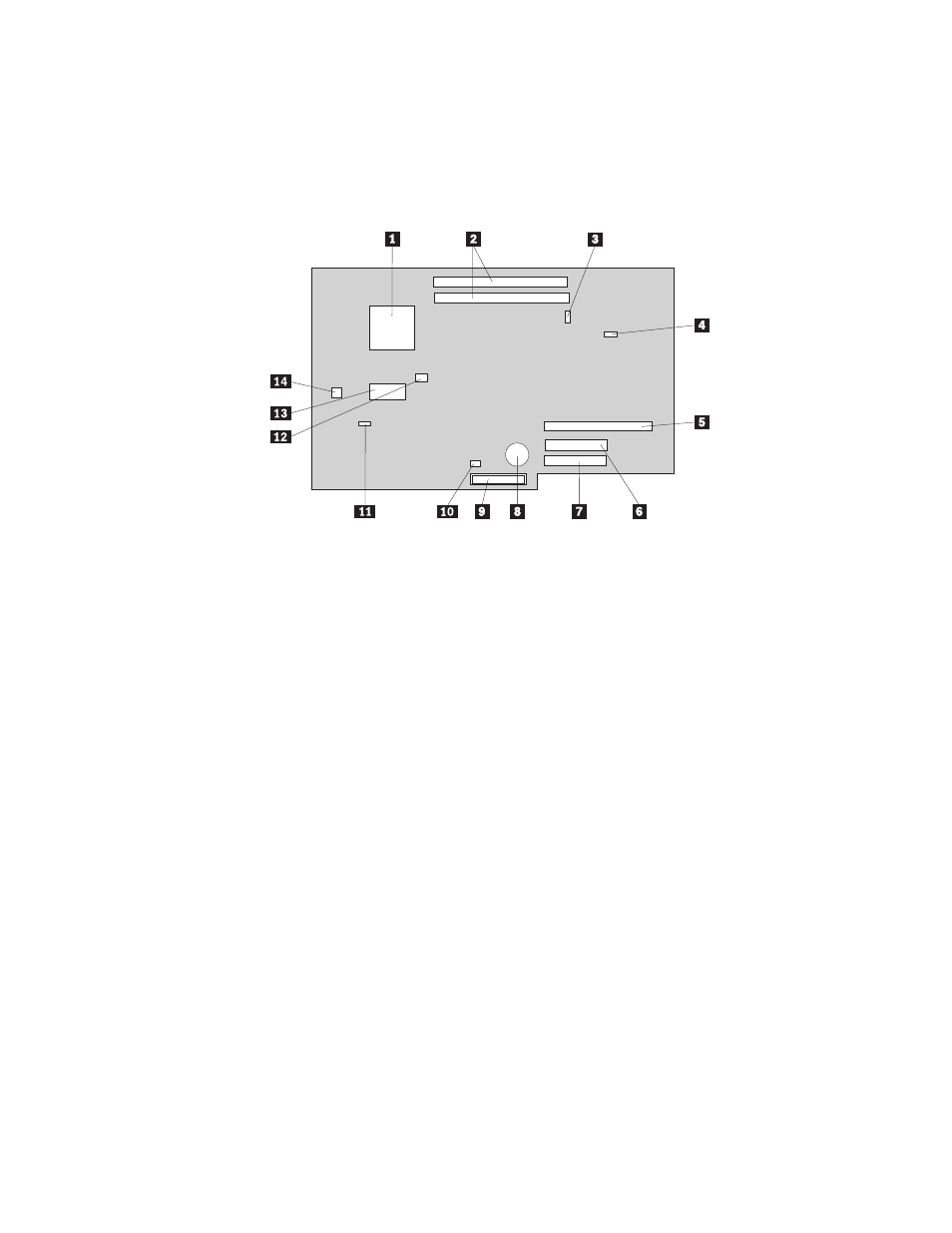

The following illustration shows the locations of parts on the system board.
1
Microprocessor
8
Battery
2
DIMM connectors
9
Diskette drive connector
3
Front panel connector
10
Clear CMOS/BIOS recovery jumper
4
CD audio connector
11
System fan connector
5
PCI riser connector
12
Microprocessor fan connector
6
Secondary IDE connector
13
Main power
7
Primary IDE connector
14
Microprocessor power connector
