Infinity CC-2 Center-Channel Speaker Owner’s Manual ◆ 5
T
ESTING
T
HE
S
PEAKER
After placing and wiring the speakers, turn on audio system power.
Follow the instructions (packed with your A/V preamplifier or receiver)
to calibrate the Dolby
® Pro Logic channels. Most components include a
built-in test tone to help you balance the sound levels to all speakers in
your system.
During calibration, verify that the CC-2 center-channel speaker
reproduces the test tone. If not, check the wiring connections and see
the Troubleshooting chart (on the next page) for help.
Once calibration is complete, audition a variety of home theater
selections and listen to the sound quality of the dialogue reproduced by
the CC-2. If you feel the CC-2 is too bright, you can reduce it by
adjusting the VOICE MATCHING control (see Figure 6) from the
normal “
° ” center position towards the “–” setting. Conversely, if you
want more brightness, rotate the level control towards the “+” setting.

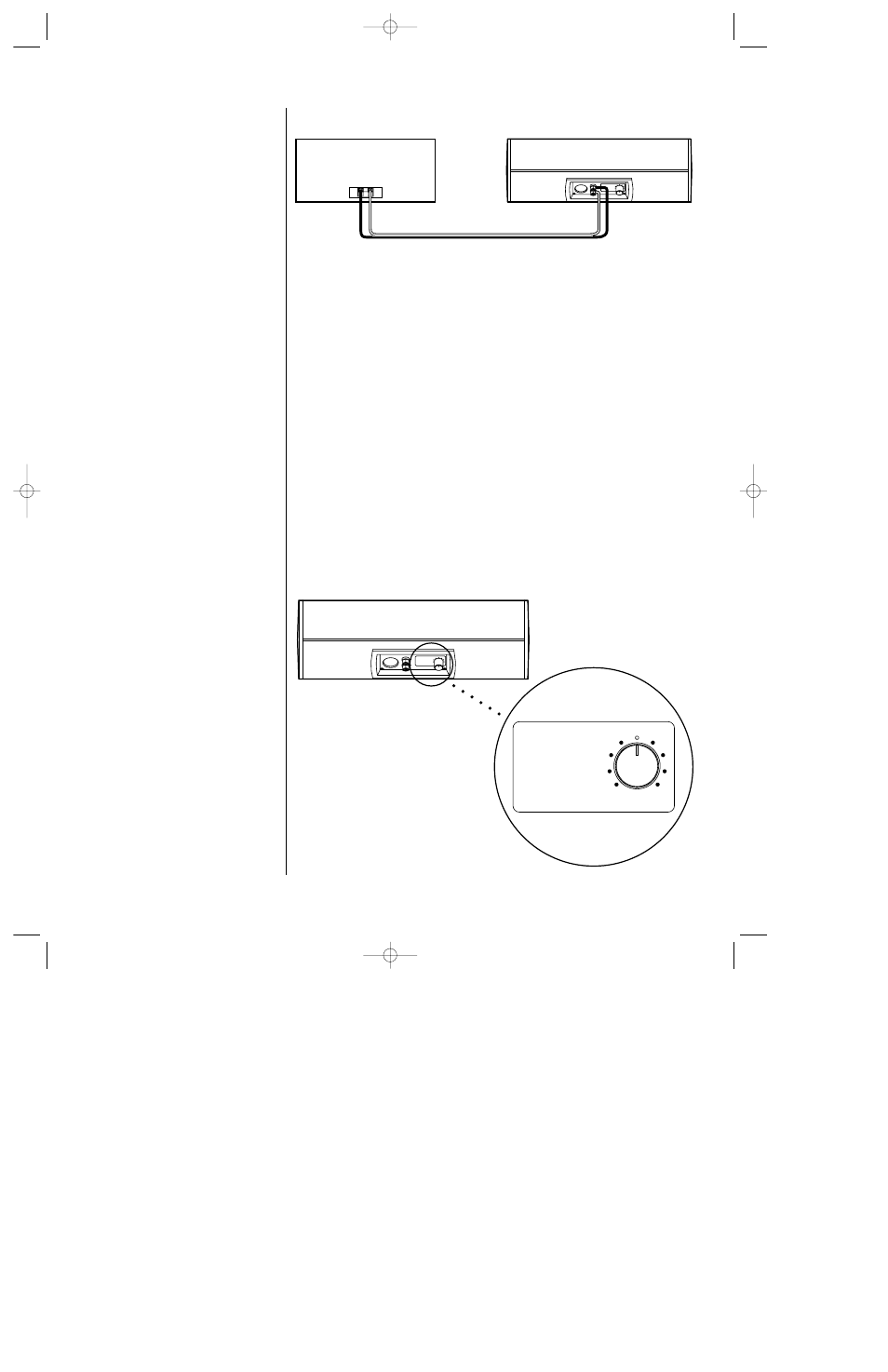

Figure 5. This wiring diagram shows
polarity connections for a center
channel connection (also see the
owner’s manual that came with your
amplifier, receiver, or television).
V ERIFY T EST T ONE ...
A DJUST V OICE M ATCHING ...
Figure 6. The CC-2 includes a VOICE
MATCHING control (on the rear) to
help match the sound coming from
the front left and right speakers.
NOTE: The normal “ ° ” center
position is typically the best match
when using other Infinity speakers in
your home theater system.
CC-2
(rear view)
Receiver or Amplifier
(rear view)
Center Out
+ –
red terminal = +
black terminal = –
CC-2
(rear view)
CC-2
VOICE MATCHING
CONTROL
– HIGH
VOICE MATCHING
+
