6 ◆ HPS-1.5/Center – Owner’s Manual

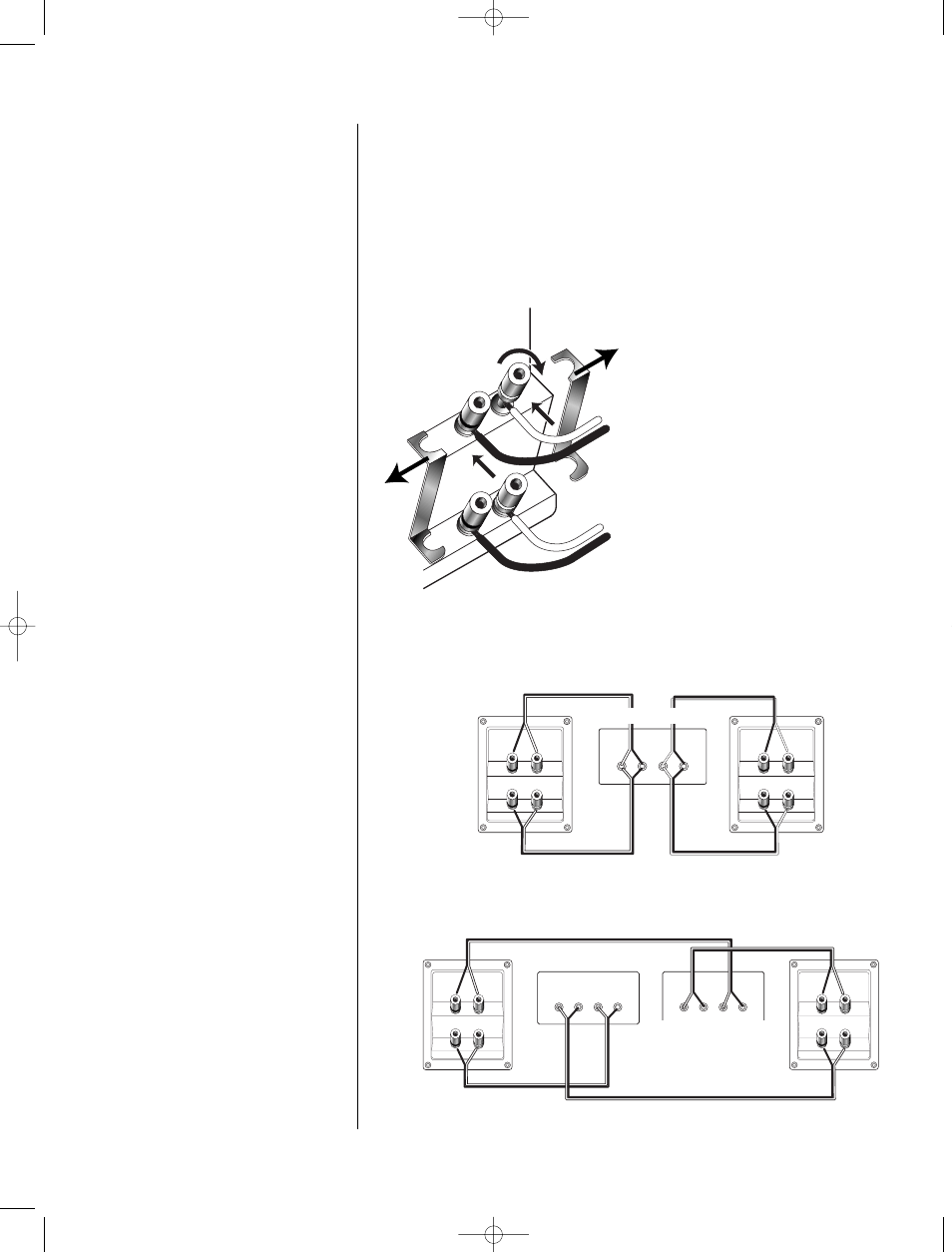

Bi-Wiring
The HPS-1.5 outer connection panel and internal dividing network are designed so that
separate sets of speaker cables can be attached to the low-frequency transducer and
midrange/high-frequency transducer portions of this dividing network. This is called bi-wiring.
Bi-wiring can provide several sonic advantages and considerably more flexibility in power
amplifier selection.
+
+
+
–
–
–
1. Loosen the terminals and remove
Strapping Bars.
2. Insert the Speaker Wire for the
high frequencies into the top set
of terminals and tighten.
3. Insert the Speaker Wire for the
low frequencies into the bottom set
of terminals and tighten.
+
+
–
–
Right
Speaker
HF
LF
+
+
–
–
Left
Speaker
HF
LF
Right Left
+ + – –
+
+
–
–
Right
Speaker
HF
LF
+
+
–
–
Left
Speaker
HF
LF
Right Left
+ + – –
Right Left
+ + – –
Single-Stereo Amplifier
Dual-Stereo Amplifier
Receiver/Amplifier
Amplifier 1
Amplifier 2
