Overview of IBM Networking
CMCC Adapter Hardware
BC-246
Cisco IOS Bridging and IBM Networking Configuration Guide

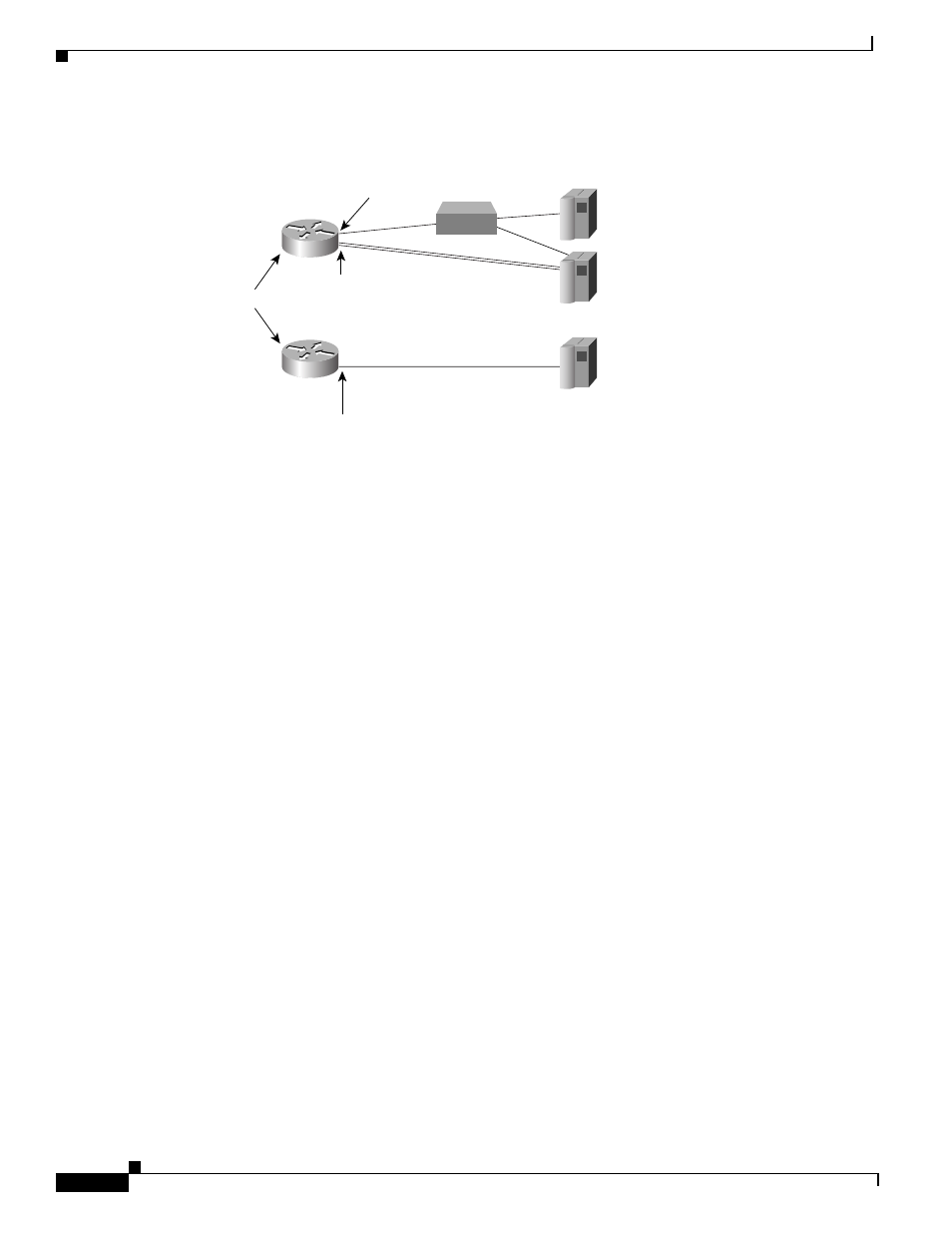

Figure 112 Cisco Mainframe Channel Connection Adapters
Channel Interface Processor
The CIP for the Cisco 7000 with RSP7000 and Cisco 7500 series routers is designed for high-end
network environments that demand high-performance, high-port density, and high-capacity solutions.
The CIP provides support for IBM ESCON and bus-and-tag parallel channel attachment using the
following types of interfaces:
• ESCON Channel Adapter (ECA)
• Parallel Channel Adapter (PCA)
A single CIP can support up to two physical channel interfaces in any combination of either PCA or
ECA. Each CIP is pre-configured with the appropriate channel adapters at manufacturing time.
The Cisco 7000 with RSP7000 and Cisco 7500 series routers support online insertion and removal
(OIR), which allows you to install or remove CIPs while the system is operating.
Channel Port Adapter
The CPA is available for the Cisco 7200 series routers. The CPA expands the value of Cisco’s IBM
channel solution by providing channel connectivity to mid-range mainframe configurations.
The CPA is a standard, single-width port adapter that provides support for IBM ESCON and bus-and-tag
parallel channel attachment using the following types of interfaces:
• ESCON Channel Port Adapter (ECPA)
• Parallel Channel Port Adapter (PCPA)
Each CPA provides a single channel interface (with a single I/O connector) for Cisco 7200 series routers.
In some situations, this eliminates the need for a separate front-end processor (FEP).
The only differences between CMCC software applications running on the CIP and a CPA are
performance and capacity. The performance difference is based upon differences in the internal bus
architecture of a CIP and a CPA, and the capacity difference is based on the difference in maximum
memory configurations (128 MB for CIP and 32 MB for CPA). For more information about differences
between the CIP and CPA, see the “Differences between the CIP and CPA” section on page 247.
Channel 1/0
IP
SNA
APPN
HPR
TN3270
Channel 1/1
7500
with CIP
7200
with CPA
Parallel channel
(Bus-and-Tag)
Channel 1/0
TCP/IP
SNA
13337
APPN
HPR
LPAR1
LPAR2
ESCON or Parallel
ESCON
