20
CCoonnttrrooll M Maaiinntteennaannccee
Ikelite controls are designed to provide years of reliable service
with minimal maintenance.
1. Push button controls require no maintenance other than rinsing
in fresh water after saltwater use. If a push button control
becomes difficult to push or if it sticks when depressed, soak the
housing in luke warm fresh water. After a few minutes operate
the push button. If this does not correct the problem, return the
housing to Ikelite for maintenance.

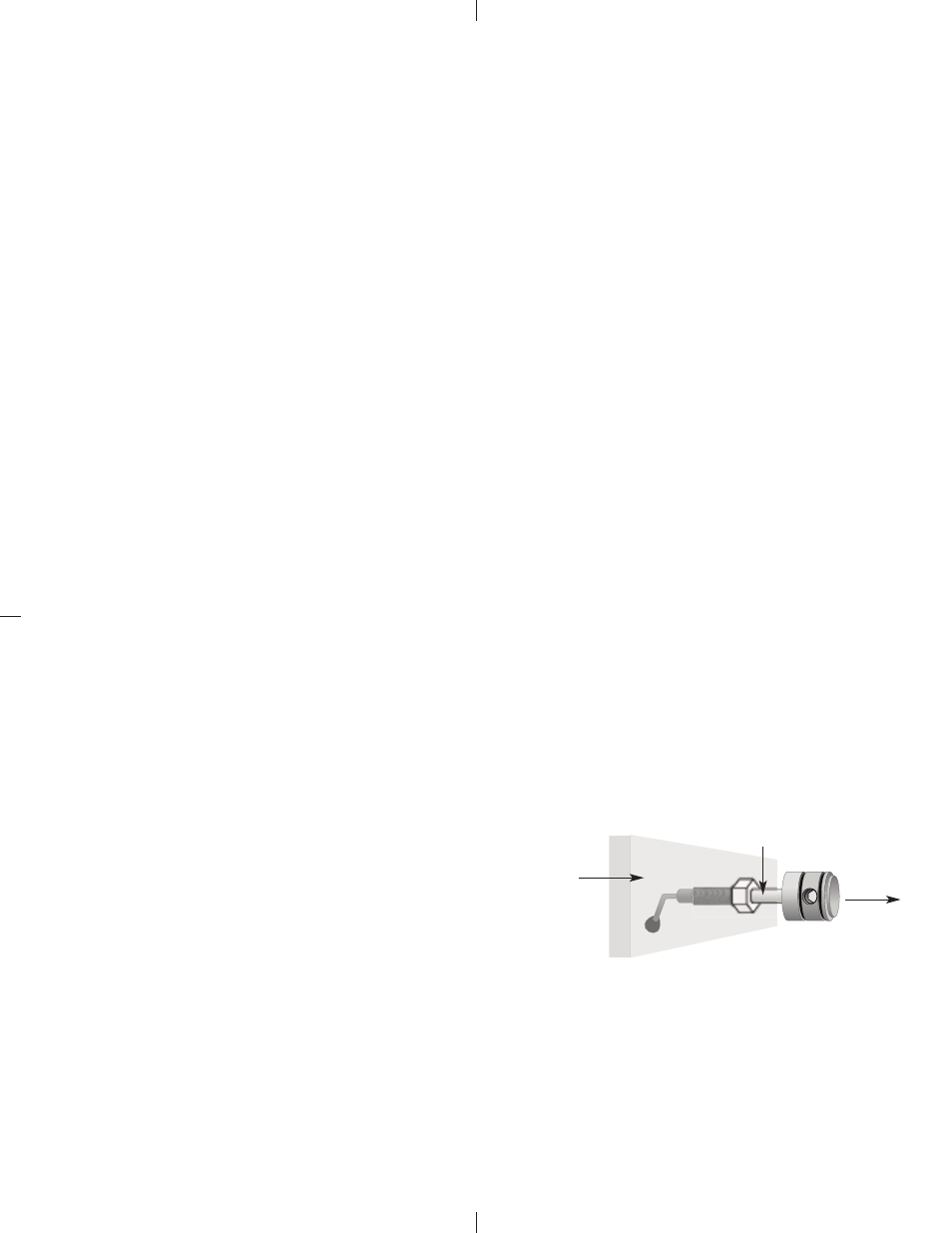

2. Some of the controls have long shafts. These controls can be
pulled out, exposing the shaft (see drawing).
To lubricate the control, gently pull on the knob until the
stainless steel shaft is exposed. Lightly lubricate the shaft, then
move the shaft in and out several times. This will lubricate the
x’ring in the Ikelite control gland. This should be done before
using the housing after a prolonged storage period, or once a
week when the housing is in use.
housing
lubricate shaft
pull out to
expose shaft
19
M Maaiinntteennaannccee
The Ikelite Housing should be given the same care and attention
as your other photographic equipment. In addition to normal
maintenance we recommend that the housing be returned to
Ikelite periodically to be checked and pressure tested.
1. D
Doo N Noott leave the camera and housing in direct sunlight for
prolonged periods. Heat may damage the camera.
2. D Doo N Noott ship the camera in the housing.
3. Before using the housing, always check the tightness of the
sseett ssccrreew w in each control knob.
Check each ccoonnttrrooll ggllaanndd penetrating the housing to make sure
they are tight. There is a slight chance that either could vibrate
loose during travel.
4. Keep the back and port o-ring clean and lightly lubricated. To
lubricate remove the o-ring from the back. Put a small amount
of lkelite lubricant on your fingers. Draw the o-ring through
your fingers to apply a light coating of lubricant. Only apply
enough lubricant to make the o-ring feel slick. D Doo N Noott ssttrreettcchh
tthhee oo--rriinngg. This light coating of lubricant will help to keep the
o-ring from drying out and will help to show a dark sealing line
when the housing back is properly sealed.
5. Keep the area where the o-ring fits and the sealing surface clean.
6. Rinse the housing exterior thoroughly in fresh water after each
salt water use. Depress push buttons several times during rinse.
Dry with a soft cloth. Dry port to eliminate water spotting.
After several uses in salt water soak the housing in a mild soap
solution, rinse and dry.
CCAAU UTTIIO ON N:: N Neevveerr uussee sspprraayy lluubbrriiccaannttss aass tthhee pprrooppeellllaanntt
i innggrreeddiieenntt ccaann ccaauussee tthhee ppllaassttiicc hhoouussiinngg ttoo ccrraacckk..
17
LLeennss & & PPoorrtt RReeccoom mm meennddaattiioonnss
For the latest information on Lens & Port recommendations visit
our web site at www.ikelite.com or contact Ikelite.
S Soonnyy....................................................................................................................66”” DDoom mee....FFllaatt PPoorrtt....FFllaatt((w w//ffooccuuss)) ....88”” DDoom mee
*18-70mm f3.5-5 ......................................5503.50 ................................................5510.16
18-200mm.........................."Throw" of lens prevents proper operation in port system.
100mm Macro f2.8 ..................................................5505.58 (1) .......................................
S SIIGGM MAA AAFF ((SSoonnyy))........................................................................66”” DDoom mee....FFllaatt PPoorrtt....FFllaatt((w w//ffooccuuss)) ....88”” DDoom mee
14mm f/2.8 EX & SM..............................5503.50 ................................................5510.16 **
15mm FE ..................................................5503......................................................5510.10 **
50mm Macro ............................................................5505.................................... (2)
70mm f/2.8 EX DG macro ........................................................5508.70 ............ (2)
105mm (3) f/2.8 EX DG Macro ................................5505.58 .............................. (2)
105mm (3) f/2.8 EX macro ......................................5505.58 .............................. (2)
10-20mm 1:4-5.6 EX DC HSM ................5503.51 (4) ..........................................5510.16
?*12-24mm 1:4.5-5.6 DG HSM...Lens diameter is too large to operate in port system.
?*15-30mm 1:3.5-4.5 DG.............Lens diameter is too large to operate in port system.
?*17-70mm Macro ..................................5503.80 ................................................5510.24
?*18-50mm 1:3.5-5.6 DC..........................5503.55 ................................................5510.24
*24-70mm F3.5-5.6 HF............................5503......................................................5510.16
*28-70mm F2.8-4 ....................................5503......................................................5510.16
*28-70mm (1) 1:2.8 D EX DF..................5503.80 ................................................5510.24
*28-80mm F3.5-5.6
Aspherical Macro HF
......5503.50 ................................................5510.16
*28-80mm F3.5-5.6
Mini Zoom Macro Aspherical
5503.50..............................................5510.16
*28-105mm AF ........................................ 5503.80 ..............................................5510.24
*28-135mm (1) F3.8-5.6 Aspherical AF macro 5503.80 ..............................................5510.24
T TAAM MRRO ON N ((SSoonnyy)) ........................................................................66”” DDoom mee....FFllaatt PPoorrtt....FFllaatt((w w//ffooccuuss)) ....88”” DDoom mee
*19-35mm 1:3.5-4.5 AF ............................5503......................................................5510.16
*28-75mm (1) 1:2.8 XR DI CD IF ............5503.80 ................................................5510.24
*28-80mm................................................5503.50 ................................................5510.16
90mm Macro 1:2.8....................................................5505.58 .............................. (2)
continued on next page
18
LLeennss & & PPoorrtt RReeccoom mm meennddaattiioonnss (continued)
(**) Recommended. Dome assembly required for 8" Port Body #s
(*) Zoom Lenses require addition of a +4 diopter close-up to the lens for
full range operation underwater behind a dome port.
(?*)This zoom lens will focus close enough that adding a + diopter close-up
to the lens is NOT required. Longer port may be required to stack filters
or close-up lenses.
dSLR housings are supplied with two size zoom sleeve and clamp sets:
Standard zoom sleeve & #9059.8 clamp set and #5509.28 zoom & clamp
set for larger diameter lenses.
Lenses indicated with a (1) require the #5509.28 set. Lenses without this
designation will operate with the standard set. Zoom sleeves and clamps
are NOT interchangeable between sets.
(1) Requires #5509.28 zoom and clamp set that is now included with all
dSLR housings.
(2) Flat port recommended for macro lenses.
(3) Auto Focus only.
(4) No Zoom control provided. Lens must be used at fixed focal length.
SSttoorriinngg tthhee H Hoouussiinngg
When the housing is going to be stored for a prolonged period
the exterior of the housing should be soaked in a mild soap
solution, rinsed and dried thoroughly. Then remove the back and
port from the housing. Remove the back and port o-rings, lightly
lubricate them and place them in a plastic zip-lock bag. Place the
plastic bag inside the housing for storage.
