Congratulations on your purchase of an Ikelite Digital Camera

Housing. Ikelite has over 40 years of experience in the underwater

photographic and lighting market. Our products are designed and

built in the USA by Ikelite for both the professional and amateur

photographer.

The clear housing permits instant visual inspection of the camera

and all sealing surfaces as well as complete monitoring of controls

and camera LCD screens.

Ikelite Digital Housings are slightly negative in salt water for

stability. This housing has been water pressure tested at the

factory. Housing is pressure tested to 200’ (60m).

Ikelite Digital Housing

i n s t r u c t i o n

m a n u a l

#6154.50 for Fujifilm FinePix F50fd

2

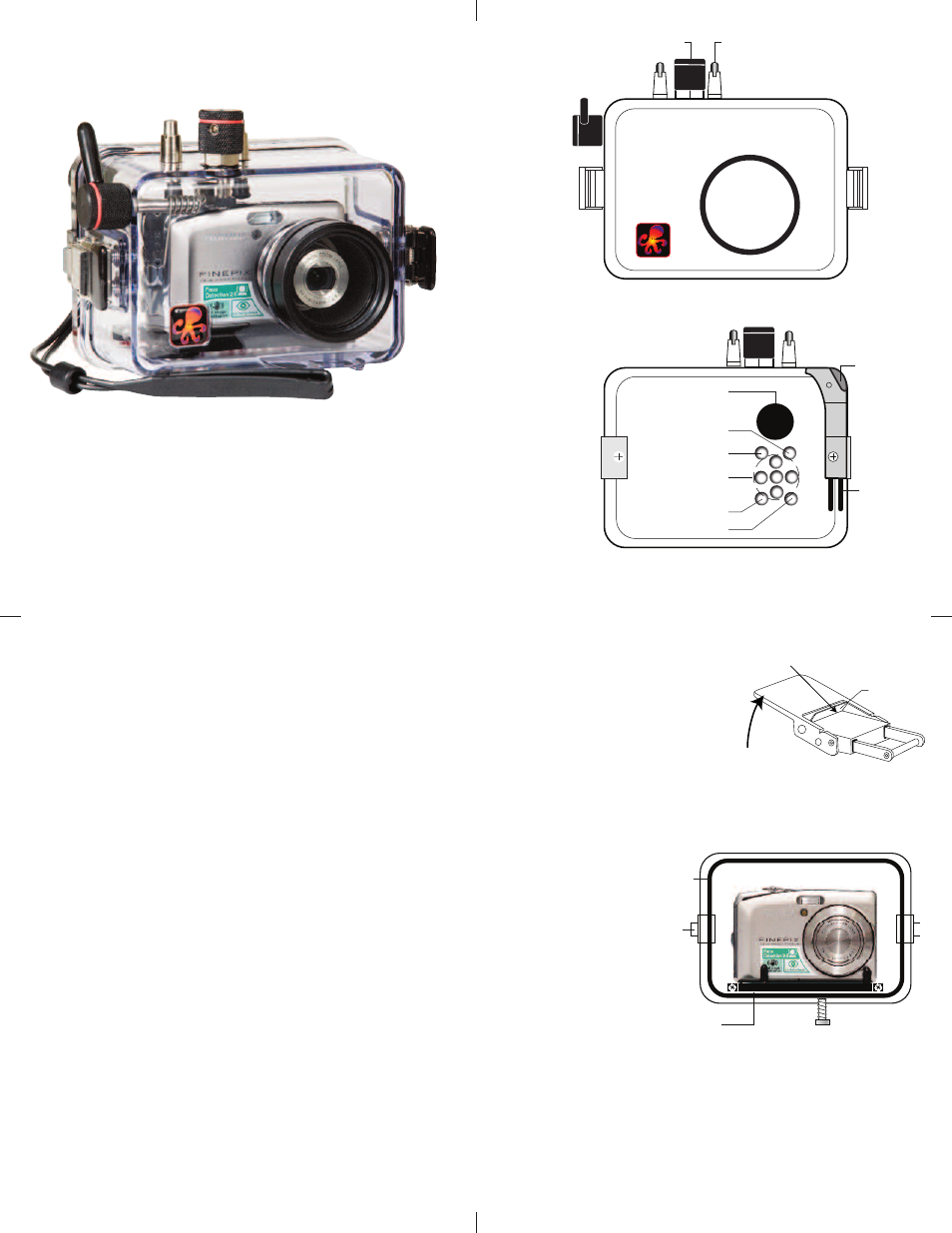

Front View

Shutter
Release

Power

Lid
Snap

Display

Face Detection

Mode

Photo Mode

Playback

Lid
Snap

Lens
Port

Back View

Zoom

Control Button

Dual IS Selector

Lanyard

Thumb
Rest

4

O

Oppeenniinngg tthhee H

Hoouussiinngg

1. Lid Snaps have a LLoocckk.

To open, push Lid Snap Lock

forward and lift as shown.

Keep pressure on the Lid

Snap so it does not fly open

quickly.

Some lid snaps have a lot of

spring tension once they go over center, have a firm grip on the

lid snap. Lid Snaps may be opened one at a time.

IInnssttaalllliinngg tthhee CCaam

meerraa

1. Remove the back

from the housing.

The mounting tray

for the camera is

secured to the

housing back.

Position the camera

on the tray and

secure it with the

mounting bolt which

threads into the

camera’s tripod

socket.

CCAAU

UTTIIO

ON

N::

Some camera tripod socket threads are plastic. The mounting

tray bolt is metal. Do not cross thread or over tighten as you

may damage the camera tripod socket threads.

2. Pull out on each housing control until it stops. This will get the

controls out of the way for installing the camera.

Lift

Push Forward

Lid Snap Lock

CAMERA / MOUNT

Lid
Hook

O' Ring

Mounting Bolt

Mounting
Tray
