Assembly
Pop Pin
WASHER 9*22*2
ALLEN BOLT M8*15
Step

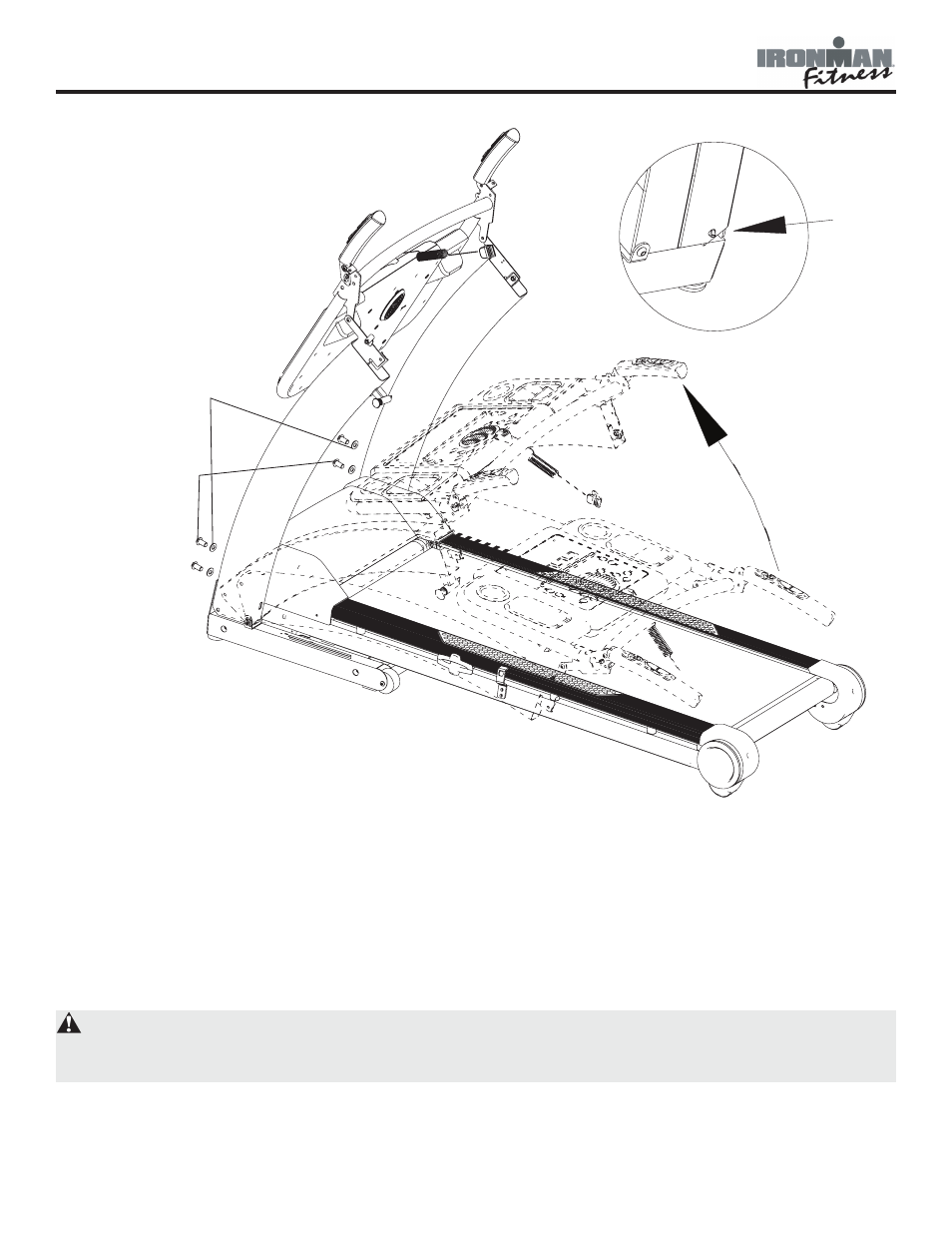

While standing on the treadmill, hold onto the center cross bar located on the console. Carefully
lift up and backwards, lifting the uprights into place.
Do so until you hear the pop pin click. This clicking sound signifies that the left upright is locked
into place. This is done to prevent any injury while proceeding to the following steps.
Align the holes on the treadmill to the holes on the uprights. Secure the uprights by using two
washers 9*22*2 and two allen bolts M8*15 on each side. Note: Do not overtighten bolts.
WARNING!
The uprights are only being held in place by a pop pin. To prevent personal injury or damage to
the unit, do not lean on the uprights or use excessive force when assembling.
