Page 27
19
Chapter 2 Installation
2.15 ATX power control connector (CN3, CN5)
2.15.1 ATX feature connector (CN3) and soft power
switch connector (CN5)
The PCI-6871 can support an advanced soft power switch function, if an
ATX power supply is used. To enable the soft power switch function:
1.
Get the specially designed ATX-to-EBX power cable
(PCI-6871 optional item, part no. 1703200100)
2.
Connect the 3-pin plug of the cable to CN3 (ATX feature connec-
tor).
3.
Connect the power on/off button to CN5. (A momentary type of
button should be used.)
Important
Make sure that the ATX power supply can take
at least a 10 mA load on the 5 V standby lead
(5VSB). If not, you may have difficulty power-
ing on your system.

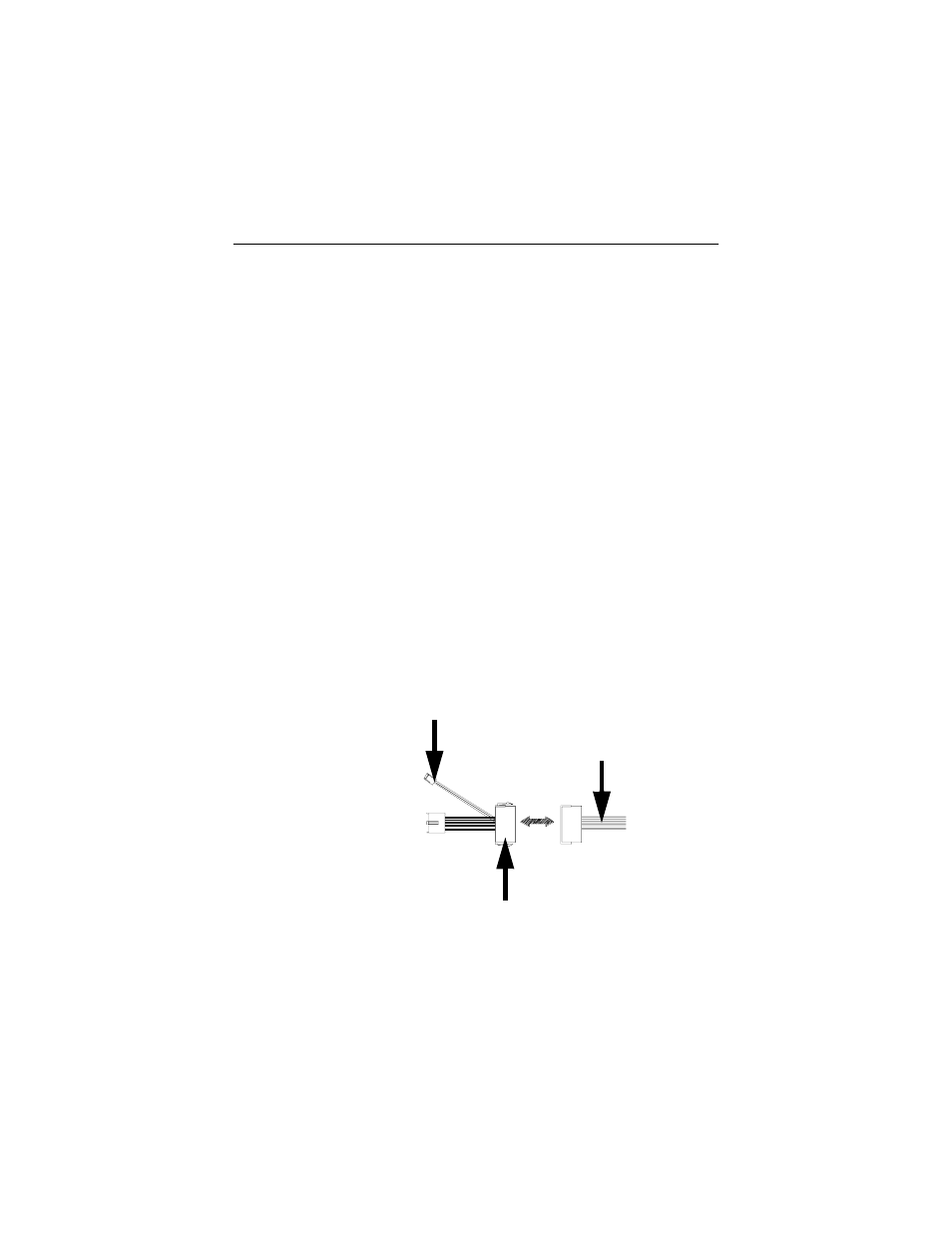

Figure 2.4: Wiring for ATX soft power switch function
to CN3 ATX
features connector
ATX
power supply
to main power
connector CN11
20-pin
female connector
