12 - 1
SECTION 12
HM-118/N (OPTIONAL UNIT)

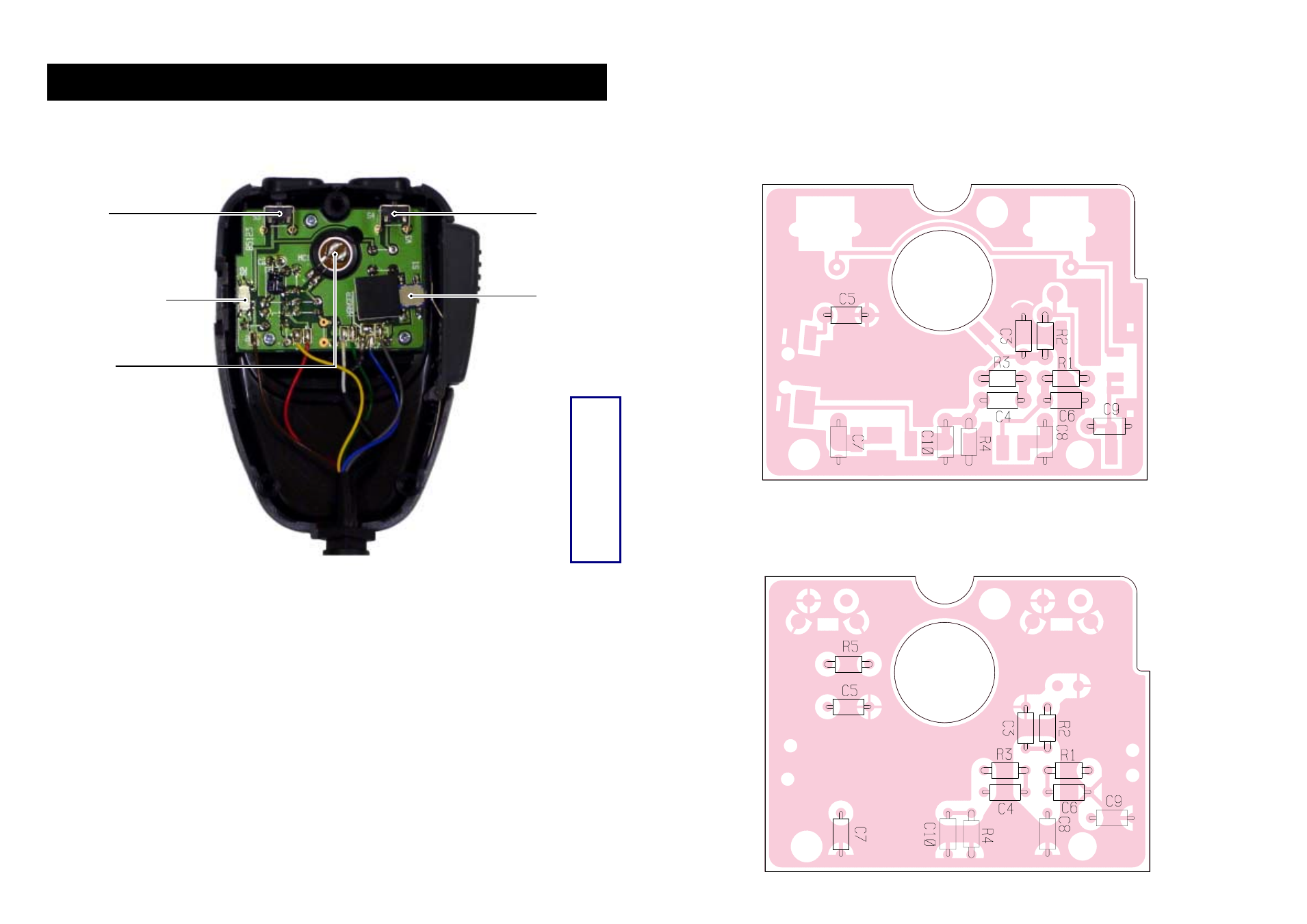

12-1 INSIDE VIEW (HM-118/N)
DOWN switch
(S4: SKHHLM)
PTT switch
(S1: JPM1990-2013R)
UP swtich
(S3: SKHHLM)
UP DOWN LOCK switch
(S2: SSSS81560A)
Microphone
(MC1: KUC2123-030245)
DOWN switch
(S4: SKHHLM)
PTT switch
(S1: JPM1990-2013R)
UP swtich
(S3: SKHHLM)
UP DOWN LOCK switch
(S2: SSSS81560A)
Microphone
(MC1: KUC2123-030245)
12-2 BOARD LAYOUTS
• TOP VIEW (MAIN UNIT)
• TOP VIEW (MAIN-A UNIT)
