C
ONNECTIONS

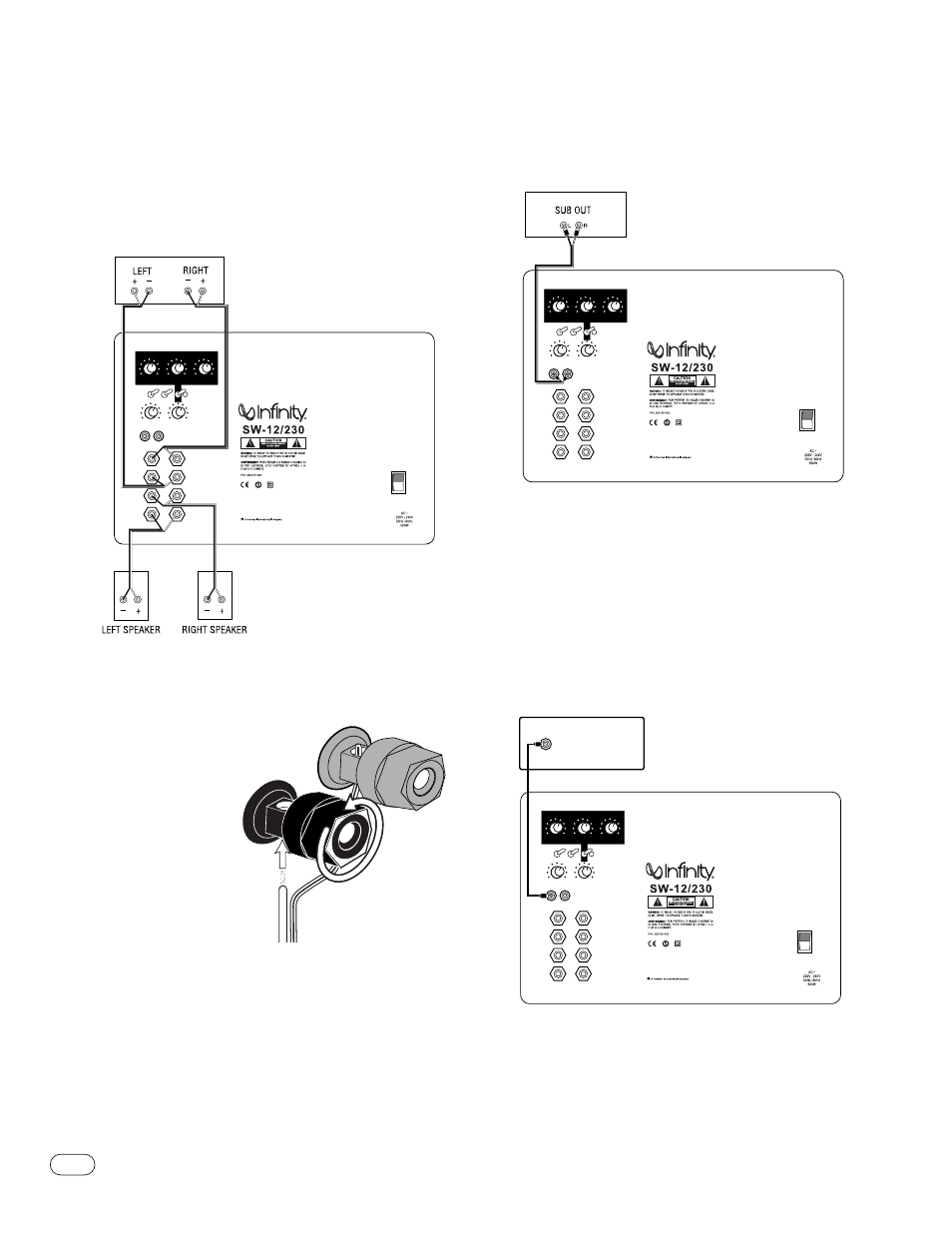

If your receiver/amplifier does not have subwoofer
outputs for the left and right channels or an LFE
output: If your receiver/processor has subwoofer
outputs for the left and right channels:
• Set Normal/LFE Switch to “Normal.”
NOTE: Some receivers have a single subwoofer output (do not confuse
this with a single LFE output as described below). In that case, it is
recommended that you use a Y connector (not included) to maximize
performance.
If you have a Dolby* Digital or DTS ® receiver/processor
with a low-frequency-effects (LFE) output:
• Set Normal/LFE Switch to “LFE.”
NOTE: In this case, you do not need to use a Y connector. Simply
connect the LFE output on your receiver/processor to either the left
or right input on the subwoofer.
RECEIVER/AMPLIFIER
Front Speaker Output
B A S S O P T I M I Z A T I O N S Y S T E M
FREQUENCY
R L
180
0
POWER
OFF
ON
LEVEL
OFF
GREEN: ON
RED: STANDBY PHASE
LINE LEVEL IN
HIGH
LEVEL IN
HIGH
LEVEL OUT Infinity Systems
Northridge, CA USA
+ _
R
L
R
L
50 150
CROSSOVER MIN MAX
LEVEL
POWER
ON
WIDTH
Normal
LFE
B A S S O P T I M I Z A T I O N S Y S T E M
FREQUENCY
R L
180
0
RECEIVER/PROCESSOR
POWER
OFF
ON
LEVEL
OFF
GREEN: ON
RED: STANDBY PHASE
LINE LEVEL IN
HIGH
LEVEL IN
HIGH LEVEL
OUT Infinity Systems
Northridge, CA USA
+ _
R
L
R
L
50 150
CROSSOVER MIN MAX LEVEL
POWER
ON
WIDTH
Normal
LFE
SUBWOOFER OR
LFE OUTPUT
POWER
OFF
ON
B A S S O P T I M I Z A T I O N S Y S T E M
FREQUENCY LEVEL
OFF
GREEN: ON
RED: STANDBY PHASE
LINE LEVEL IN
HIGH LEVEL
IN
HIGH
LEVEL OUT
Infinity Systems
Northridge, CA USA
R L
+ _
R
L
R
L
180
0
50 150
CROSSOVER MIN MAX
LEVEL
POWER
ON
WIDTH
Normal
LFE
• Set Normal/LFE Switch to “Normal.”
LOOSEN TERMINALS
INSERT BARE END;
TIGHTEN TERMINALS
1.
2.
BLACK = –
NO STRIPE = – STRIPE = +
RED = +
