Infinity BETA SW-12 - Manual (Page 4)

2 BETA SW-12
Rear Panel
C
ONTROLS AND
C
ONNECTIONS
POWER
OFF
ON
B A S S O P T I M I Z A T I O N S Y S T E M
FREQUENCY LEVEL
OFF
GREEN: ON
RED: STANDBY PHASE
LINE LEVEL IN
HIGH
LEVEL
IN
HIGH
LEVEL
OUT
Infinity Systems
Northridge, CA USA
R L
+
_
R
L
R
L
180
0
50 150
CROSSOVER
MIN MAX
LEVEL
POWER
ON
WIDTH
Normal
LFE
C
9
A
B
8
7
6 5
4
3 2 1
0

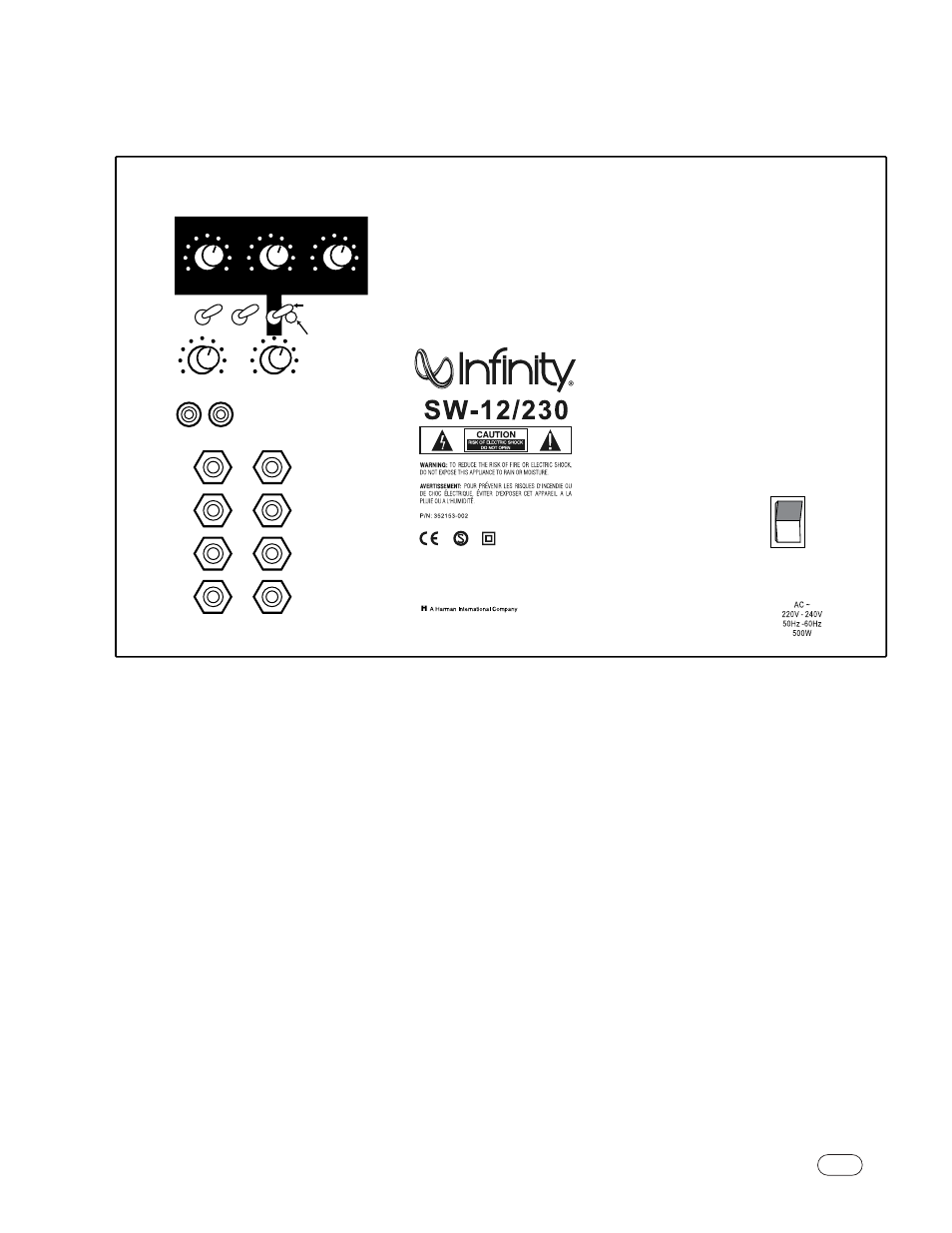

Bass Optimization Controls (see page 5)
0 Bass Optimization System Selector
1 Center-Frequency Adjustment
2 Bass Optimization System Level Control
3 Bass Optimization System Bandwidth Control
4 Phase Switch
5 Normal/LFE Switch
6 Power Indicator
7 Crossover Adjustment
8 Subwoofer Gain (Volume) Control
9 Line-Level Inputs
A High-Level (Speaker) Inputs
B High-Level (Speaker) Outputs
C Power Switch
