Assembly
ALLEN BOLT
M8*15
WASHER
Φ9*Φ22*2
Pop Pin
Pop Pin
Step 2

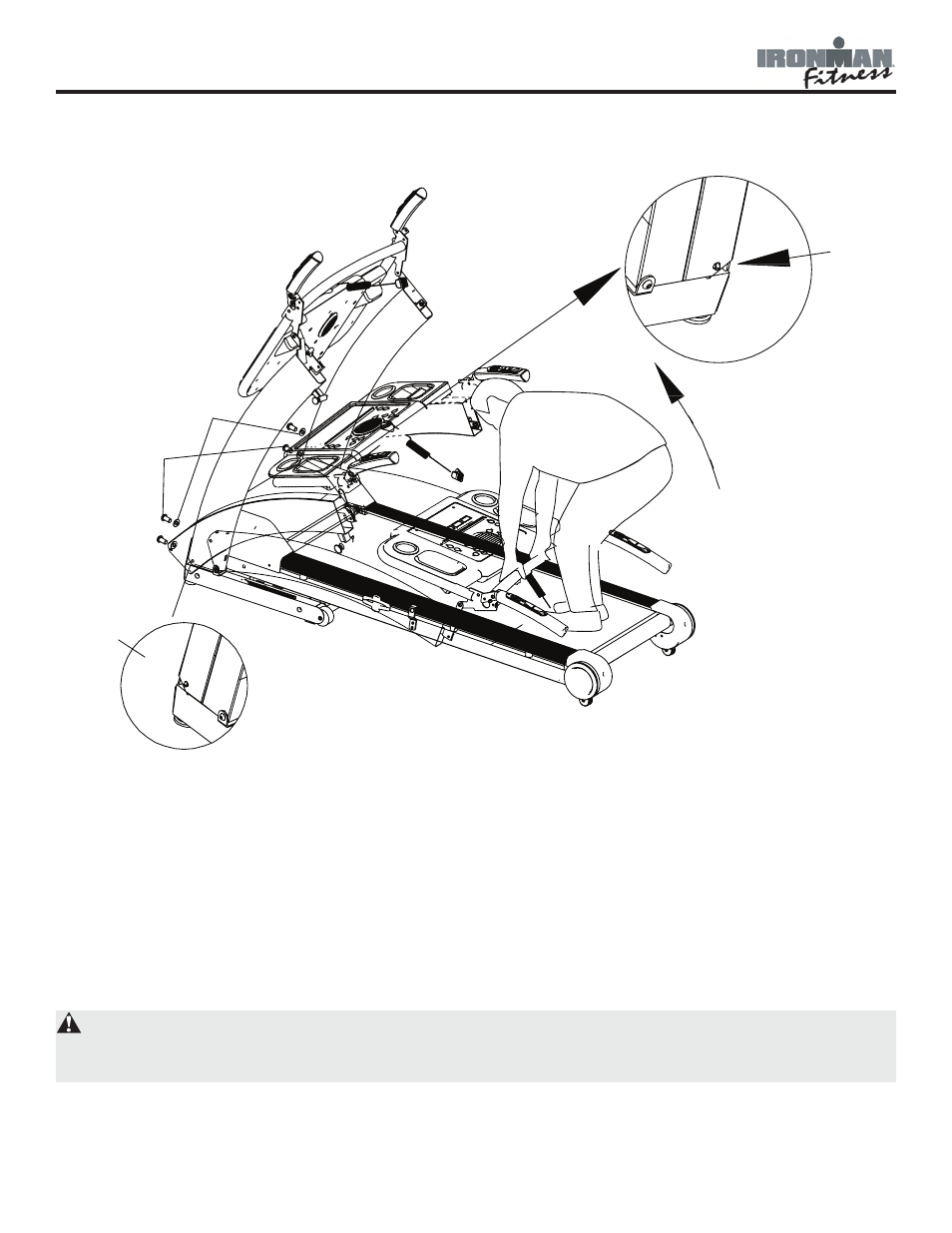

While standing on the treadmill, hold onto the center cross bar located on the console. Carefully
lift up and backwards, lifting the uprights into place.
Do so until you hear both pop pins click. This clicking sound signifies that the uprights are
locked into place. This is done to prevent any injury while proceeding to the following steps.
Align the holes on the treadmill to the holes on the uprights. Secure the uprights by using two
washers 9*22*2 and two allen bolts M8*15 on each side. Note: Do not overtighten bolts.
WARNING!
The uprights are only being held in place by 2 pop pins. To prevent personal injury or damage to
the unit, do not lean on the uprights or use excessive force when assembling.
