Assembly: Parts Identifier
The Ironman Quest Treadmill will require assembly before operating. Place unopened box on
a clean, level surface. After opening the box, remove any packing material from the treadmill.
Do not throw away any packing materials until the unit is working properly.
Do not remove unit from box until it has been fully assembled.
Make sure the electrical cord will easily reach an electrical outlet.
If at anytime you need assistance with assembly, call 888-559-8810.

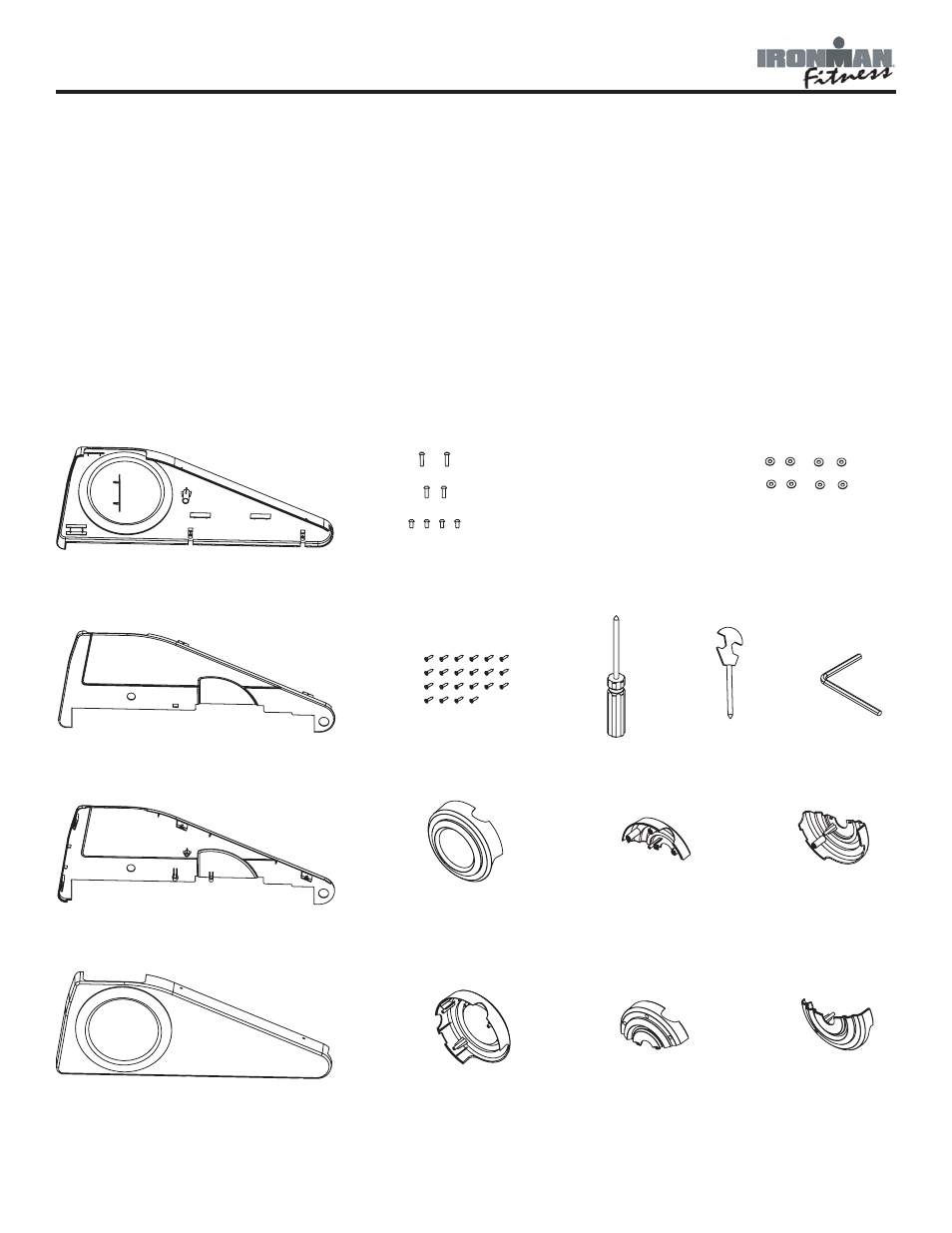

Locate the hardware pack and identify the following parts required for assembly.
Tools:
1. Allen Wrench- 3/16”
2. Allen Wrench- 7/32”
3. Phillips Screwdriver
LEFT OUTSIDE FENDER
LEFT INSIDE FENDER
RIGHT INSIDE FENDER
RIGHT OUTSIDE FENDER
RIGHT OUTSIDE
HANDLE COVER
RIGHT LOWER
HANDLE COVER
RIGHT UPPER
HANDLE COVER
LEFT OUTSIDE
HANDLE COVER
LEFT UPPER
HANDLE COVER
LEFT LOWER
HANDLE COVER
PHILLIPS SCREWS
ST4.2*16 22 PCS
ALLEN BOLT M8*30 2 PCS
ALLEN BOLT M8*20 2 PCS
ALLEN BOLT M8*15 4 PCS
WASHER Φ9*Φ22*2
8 PCS
SCREW
DRIVER
ALLEN
WRENCH
MULTI-TOOL
