Both screws push the Peg on the Tripod Head. This means you have to loosen one screw
when tightening the other. The screw that holds the equatorial mount to the tripod may
have to be loosened slightly too.
Keep in mind that adjusting the mount is done during the polar alignment process only.
Once polar aligned, the mount should NOT be moved. Pointing the telescope to a target
is done by moving the mount in right ascension and declination as described earlier in
this manual.
Attach the Coiled Cables

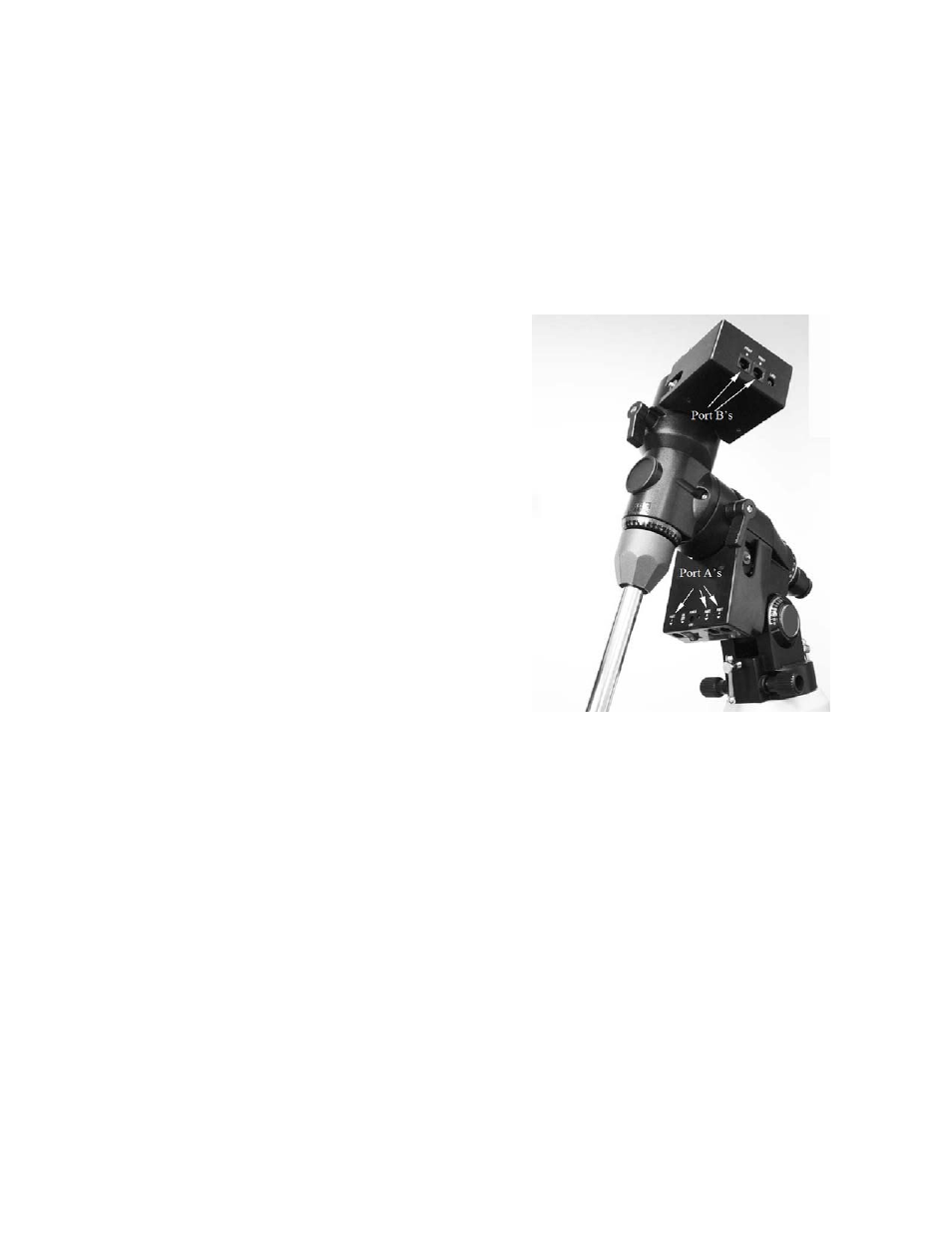

There are two Port B’s which are equivalent.
There are three Port A’s which are equivalent to
each other, too.
Use one of the coiled cables to connect one Port A
and one Port B. Plug the cable from the 8401
controller to one of the Port A’s. Extra ports are
reserved for other future accessories.
Now plug in the AC adapter, or DC adapter, and
turn on the power.
If you R.A. and DEC motors are not installed on
the mount, please refer to the installation
instructions here:
http://www.ioptron.com/manuals/GoToNovaKit-
Manual.pdf
