Congratulations on your purchase of an Ikelite Digital Camera
Housing Ikelite has over years of experience in the underwater
photographic and lighting market Our products are designed and
built in the USA by Ikelite for both the professional and amateur
photographer
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens
Ikelite Digital Housings are slightly negative in salt water for
stability This housing has been water pressure tested at the
factory Housing is pressure tested to ’ ( m)
Ikelite Digital Housing
i n s t r u c t i o n m a n u a l
Housing #6111.5 for Sony DSC-H5
2

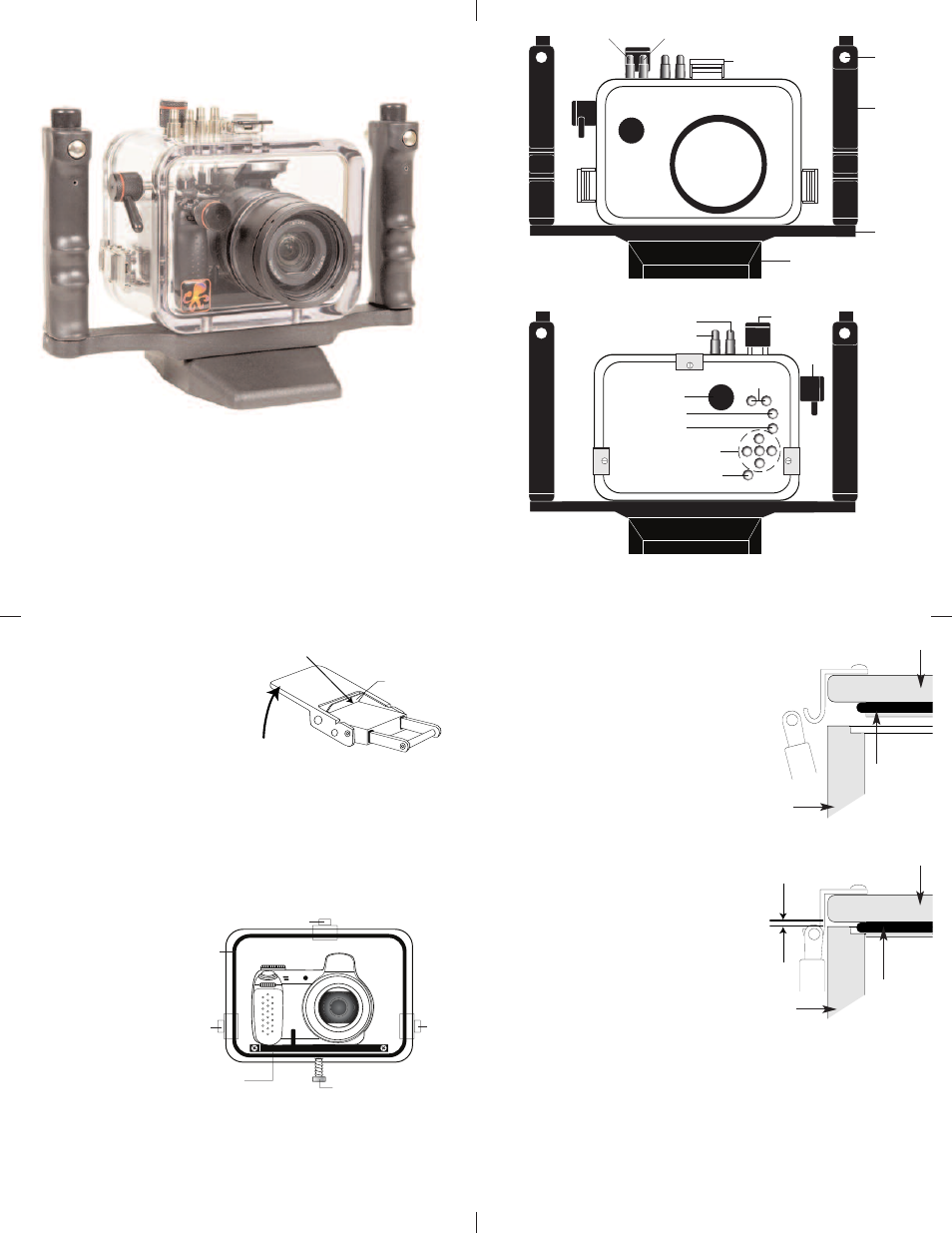

Front View
Shutter
Button
Lid
Snap
Zoom
Lens
Port
Back View
Lid
Snap
Focus Bracket
Lid
Snap
Display
Mode Dial
Menu
Image Size/Delete
Control Buttons
Playback/
Finder
Power
Steady Shot
Jog Dial
Quick Release
Button
Rubber
Handles
Tray
Base
3
O Oppeenniinngg tthhee H Hoouussiinngg
Lid Snaps have a LLoocckk
To open push Lid Snap Lock
forward and lift as shown Keep
pressure on the Lid Snap so it
does not fly open quickly
Some lid snaps have a lot of
spring tension once they go over center have a firm grip on the
lid snap Lid Snaps may be opened one at a time
IInnssttaalllliinngg tthhee CCaam meerraa
Remove the back from the housing The mounting tray for the
camera is secured to the housing back Position the camera on
the tray and secure it with the mounting bolt which threads
into the camera's tripod socket U Ussee aa ccooiinn oorr ffllaatt bbllaaddeedd
ssccrreew wddrriivveerr ttoo ttiigghhtteenn
tthhee m moouunnttiinngg bboolltt ssoo
tthhee ccaam meerraa iiss ffllaatt
aaggaaiinnsstt tthhee ttrraayy
PPoopp uupp FFllaasshh
Make sure the Pop up
Flash is in the open
position before closing
the housing
CCAAU UTTIIO ON N::
Some camera tripod socket threads are plastic The mounting
tray bolt is metal Do not cross thread or over tighten as you
may damage the camera tripod socket threads
Lift
Push Forward
Lid Snap Lock
CAMERA / MOUNT
Lid
Hook
O' Ring
Mounting Bolt
Mounting
Tray
Lid
Hook
Lid
Hook
4
CClloossiinngg tthhee H Hoouussiinngg
Place housing face down in your lap
Check to see that there is an o’ring
on the housing back and that it is
clean and in its proper location
Guide the back onto the housing
The o’ring should touch the housing
all the way around There should be
an even gap all the way around
between the housing and the
housing back
Lift the lid snaps so they are
extended and place the lid snap
into the hook on the housing back
To close the housing push
down on the lid snaps until
they snap into place Lid
snaps on opposite sides of
the housing should be closed
at the same time Be sure they
are down far enough to engage
the lock
D Doouubbllee cchheecckk Once the housing is
closed check the o’ring seal Check the gap between the
housing back and the housing it should be even all the
way around
Look through the clear plastic back at the o’ring You should see
a darkened area where the o’ring is compressed against the
housing back If you do not see an even black compression seal
all the way around the back open the lid snaps reseat the
housing back and close the lid snaps Visually check the seal again
o’ring
housing back
housing back
housing
housing
o’ring
even gap
all 4 sides
