8
Insignia NS-LCD37 LCD TV
www.insignia-products.com
For a full home theater sound experience, you
must connect your Hi-Fi or audio processor to
the S/PDIF (optical) terminal on the television.

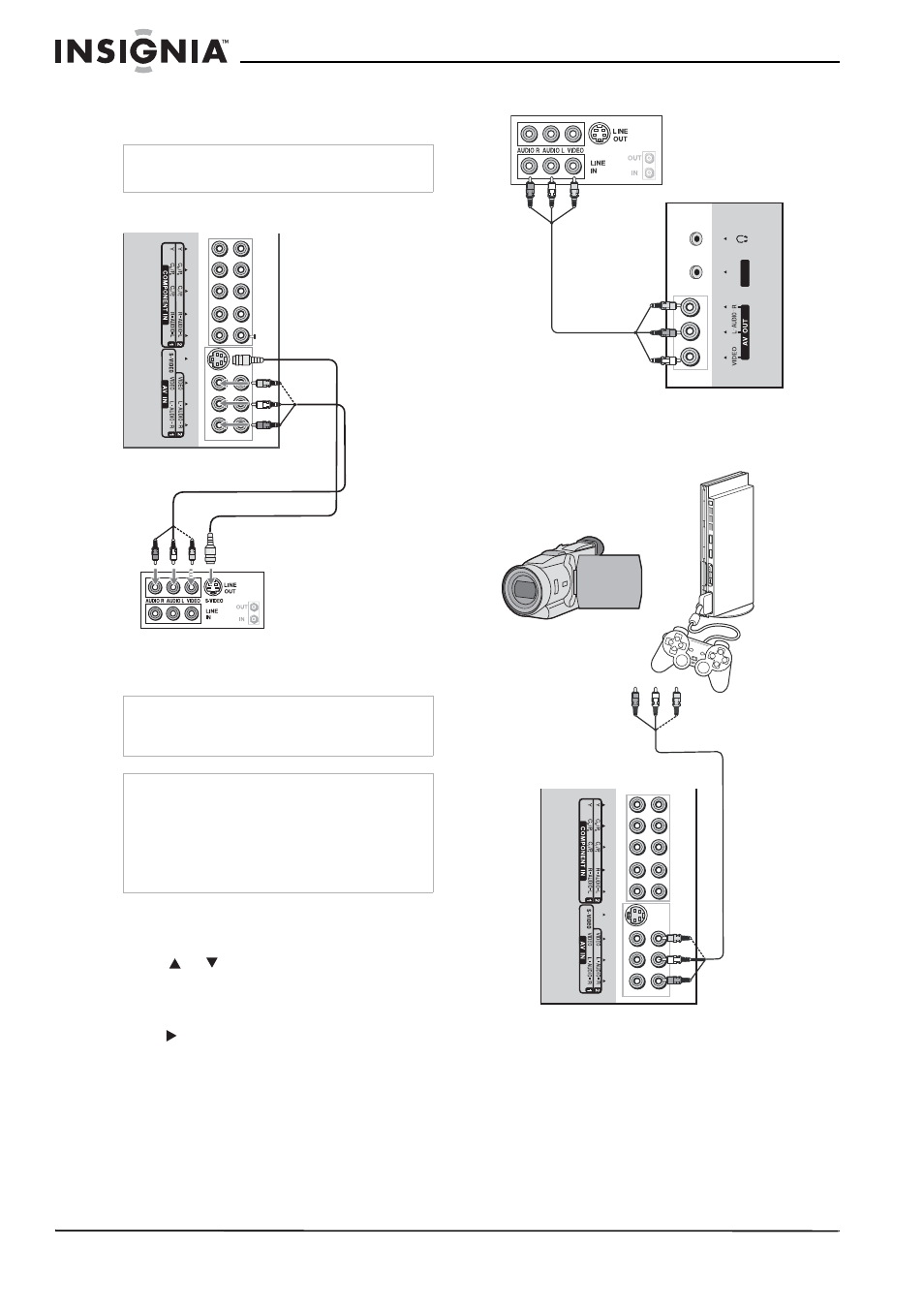

Connecting a VCR
Connect the Audio/Video cables between the
Audio (L/R)/Video jacks on the television and
VCR.
To play the VCR:
1 Turn on your television, then press the INPUT
button. The SOURCE INPUT menu opens.
2 Press or to select Composite-1(or
S-Video if S-VIDEO jack is connected), then
press OK to confirm.
3 Turn on your VCR, insert a videotape, then
press .
Connecting a VCR (for recording)
Connecting a camcorder or video game
console
Note
The S/PDIF OUT jack can output digital audio
from digital TV programs only.
Note
Cables are often color-coded to connectors.
Connect red to red, white to white, and yellow to
yellow.
Note
• For better video, you can use the S-video
terminal if your source supports it.
• The S-video terminal shares the same audio
jacks with VIDEO1 and has priority over the
VIDEO1 and VIDEO2 jacks. To use a device
connected to the video jacks, disconnect any
plug from the S-video terminal.
VCR
TV right side
AV cable
S-Video cable
S-VIDEO
RS-232
AV cable
VCR for recording
TV Left Side
TV right side
AV cable
Camcorder
Video game
console
