9

TSS-1200 (120V)

S

UBWOOFER

C

ONNECTIONS

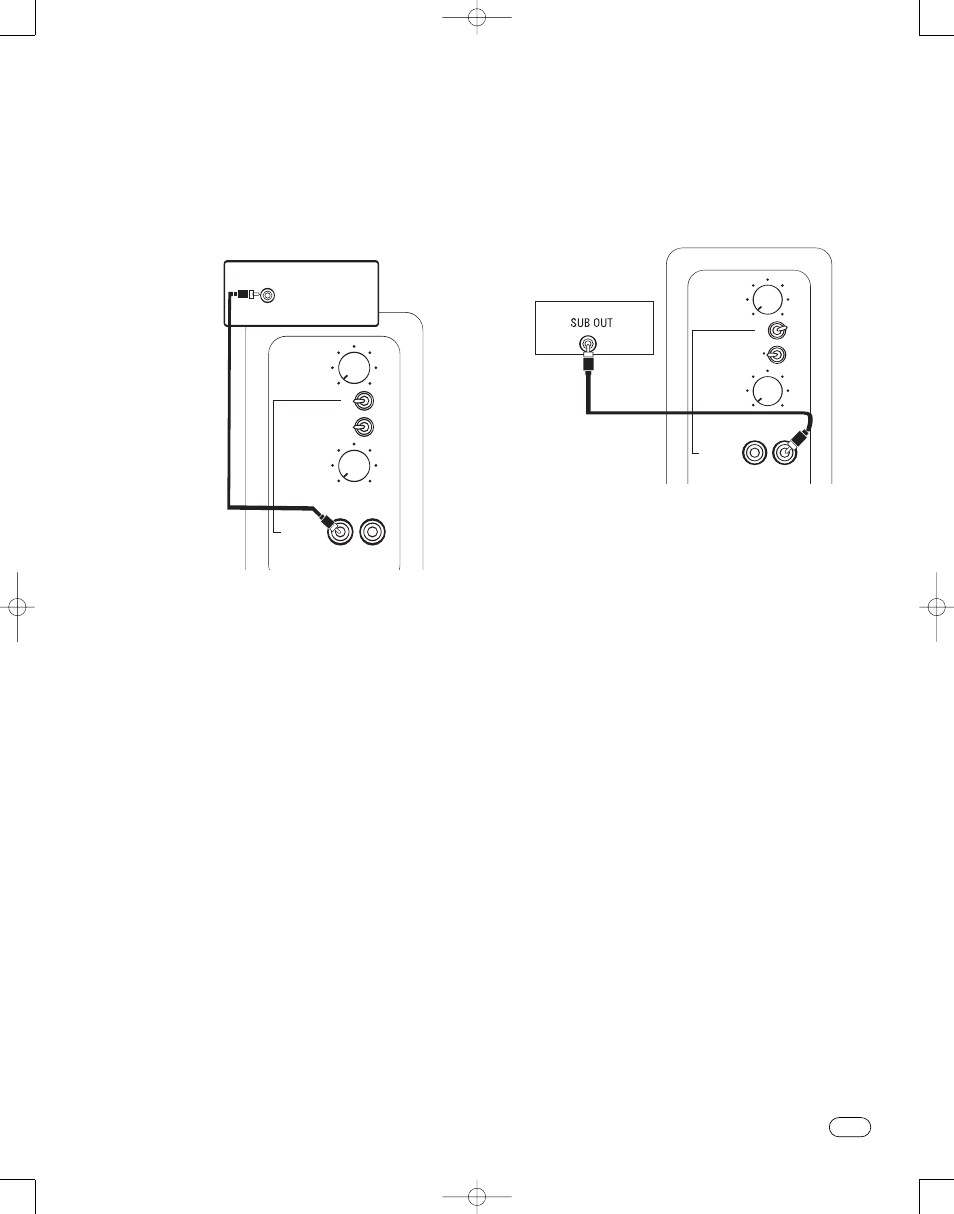

If your receiver/processor does not contain
a Dolby Digital or DTS processor but has a
subwoofer output:

Set line-level/LFE switch to “Normal.”

N

NO

OT

TEE: If your receiver/processor has only one sub out,

you may use either the L or R input.

If you have a Dolby

®

Digital or DTS

®

receiver/

processor with a low-frequency-effects (LFE)
or subwoofer output:

CROSSOVER
FREQUENCY

LEVEL

LINE LEVEL IN

PHASE

Min

Max

L R

For LFE use L or R

LFE NORMAL

POWER

50Hz

80Hz

180˚

150Hz

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ON

OFF

NRTL/C

CSA22.2

UL1492

®

®

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVERTISSEMENT: POUR PRÉVENIR LES RISQUES D’INCENDIE OU

DE CHOC ÉLECTRIQUE, ÉVITER D’EXPOSER CET APPAREIL A LA

PLUIE OU A L’HUMIDITÉ.

SUBWOOFER OR

LFE OUTPUT

Set line-level/LFE switch to “LFE.”

CROSSOVER
FREQUENCY

LEVEL

LINE LEVEL IN

PHASE

Min

Max

L R

For LFE use L or R

LFE NORMAL

POWER

50Hz

80Hz

180˚

150Hz

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ONOFF

NRTL/C

CSA22.2

UL1492

®

®

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVERTISSEMENT: POUR PRÉVENIR LES RISQUES D’INCENDIE OU

DE CHOC ÉLECTRIQUE, ÉVITER D’EXPOSER CET APPAREIL A LA

PLUIE OU A L’HUMIDITÉ.

RECEIVER/PROCESSOR

15'

subwoofer

cable

included

15' subwoofer

cable included
