Refer to Figure 3 as you perform the following steps:

1. Open each accessory pack and locate the following items:

four feet (with spike/round ends), four locking nuts, four
nylon domes and one wrench.

2. Lay each speaker on its side and locate the four threaded

holes on the bottom.

3. For carpets, screw the round end of a foot into each hole

and hand-tighten a nut onto each one. Leave a minimum of
5/8" of exposed spike. (On thicker carpets, you can increase
the length of exposed spike up to 1-1/8.") For hard-surface
floors, screw the spike end into each hole instead and leave
5/8" of round end exposed.

4. Carefully flip each speaker upright to sit on its feet.

5. If needed, adjust the feet so each speaker is level and then

tighten each nut with the enclosed wrench. To protect hard
surfaces (e.g., wood floors), slip a nylon dome onto each
round end.

I

NSTALLING

F

EET

Nylon Dome

(optional for

wood floors)

Locking Nut

HARD-SURFACE

FLOORS

CARPETED

FLOORS

Foot

round end

spike end

Bottom

of Speaker

5

8

"

5

8

"

min.

1

1

8

"

max.

F

IGURE

3

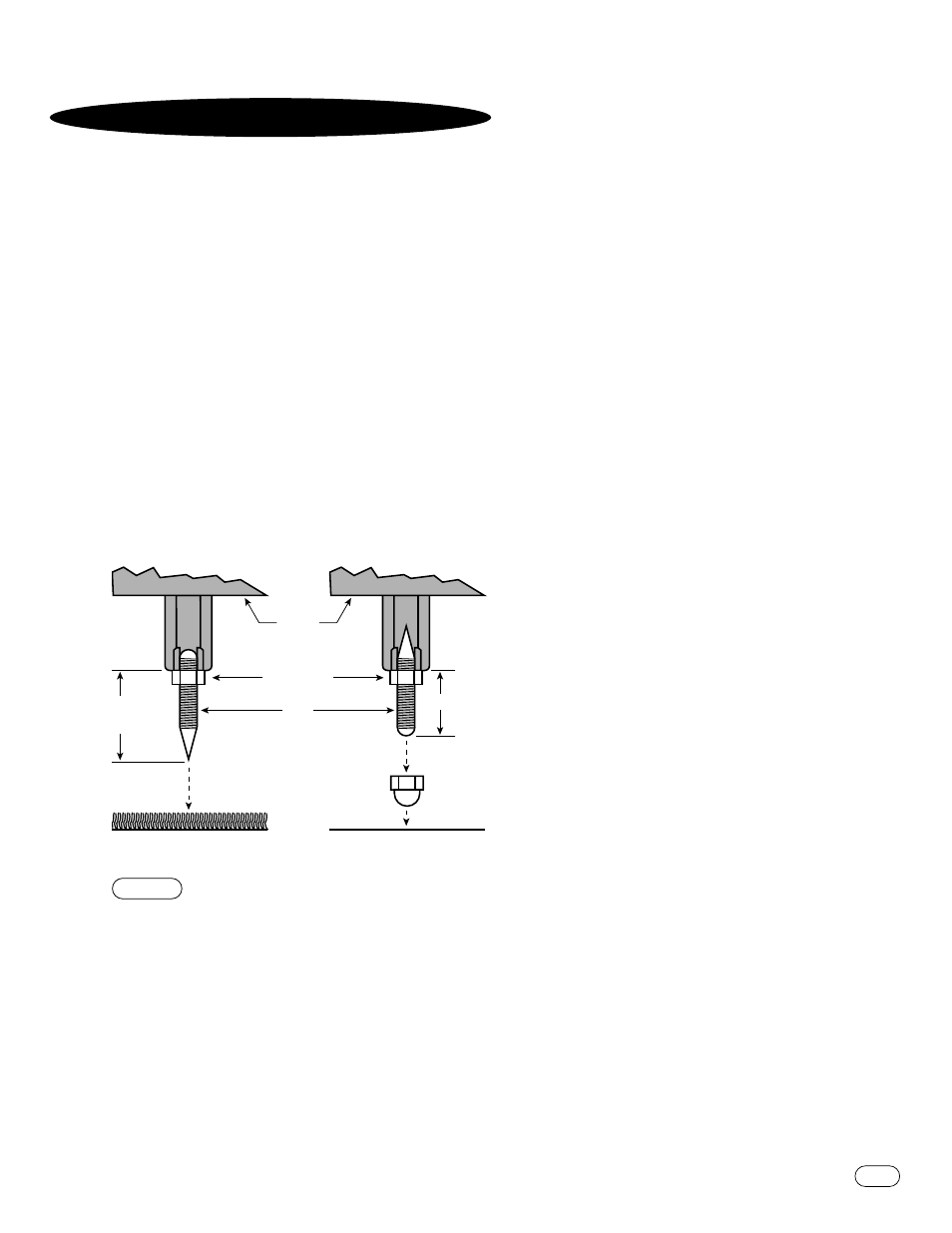

– This cross section shows how to install a foot

onto the bottom of an IL30 or IL40 floorstanding speaker.
