MFI Series Operation: Water
Page 14
Water enters the machine through the 3/8 inch male flare at the rear of the cabinet, goes to the water reservoir
which it enters through the float valve. The water then goes out the bottom of the reservoir tank to the bottom
of the evaporator. Reservoir overflow or evaporator condensation is routed to the drain.
Water cooled models have a separate water circuit for the cooling water. The water enters at the rear, goes to
the water regulating valve, then to the water cooled condenser and down the drain.

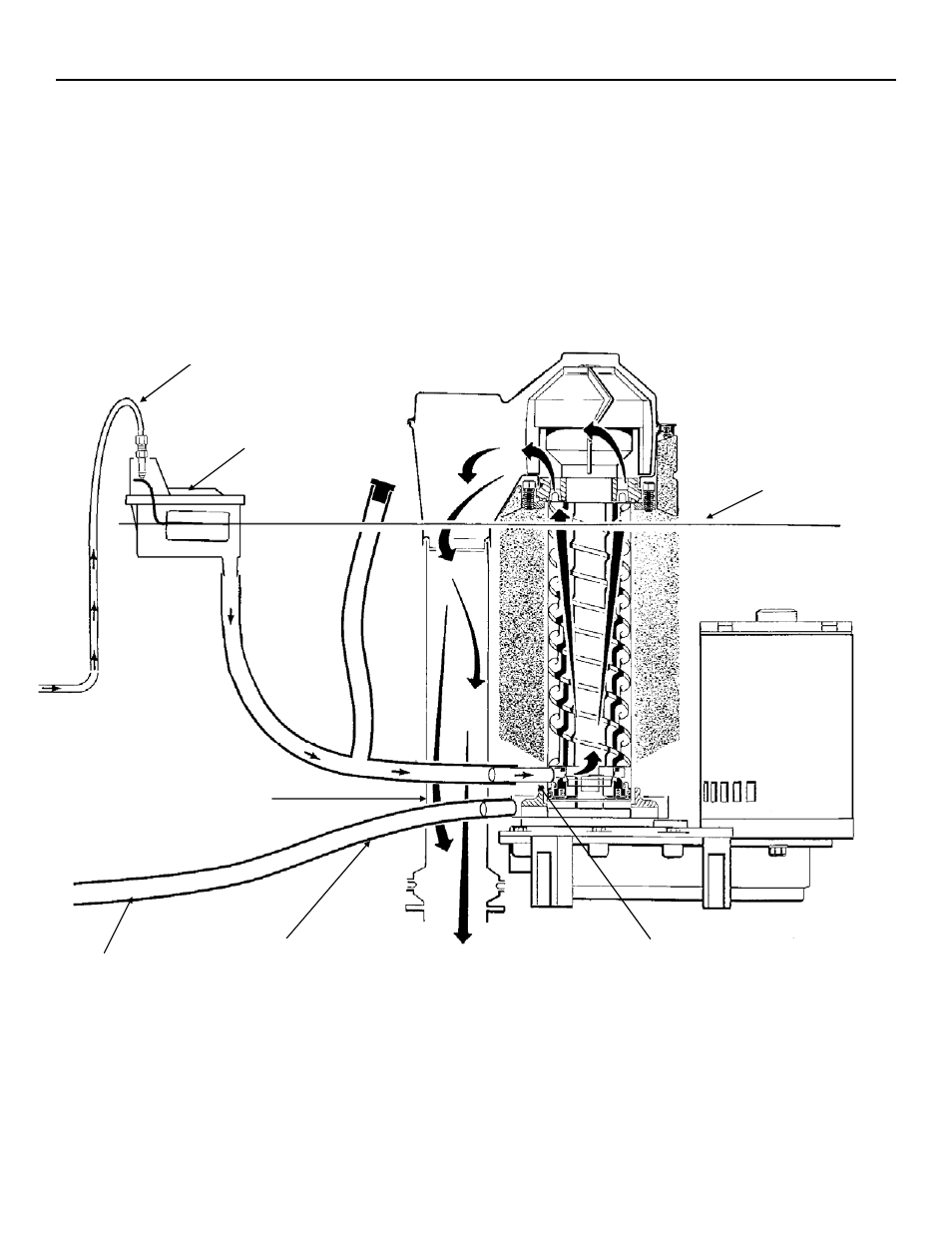

Water System
Water Inlet
Water Level
Evaporator Water Inlet
Ice Chute
Evaporator Drain
Drain
Reservoir
