v Screen resolution of 1024 x 768 pixels required for DVD authoring functions
v Audio adapter supporting 44.1 or 48 kHz sampling rate
v Optional stereo speakers
Before you begin
Before you install the DVD-RAM/DVD-R drive, read the information in the
following section on handling precautions and on using the drive controls and
connectors.
Handling precautions
Use the following handling precautions to protect your drive:
v Keep the DVD-RAM/DVD-R drive in the antistatic bag until you are ready
to install the drive. Limit your movement when installing; movement can
cause static electricity buildup.
v Handle the drive with care. Dropping or jarring the drive can damage the
components inside the drive housing.
v Do not force insertion of the IDE or power cables. Doing so might damage
the connector or the drive.
Drive controls and connectors
The following diagrams show the location and functions of the drive controls
and connectors.

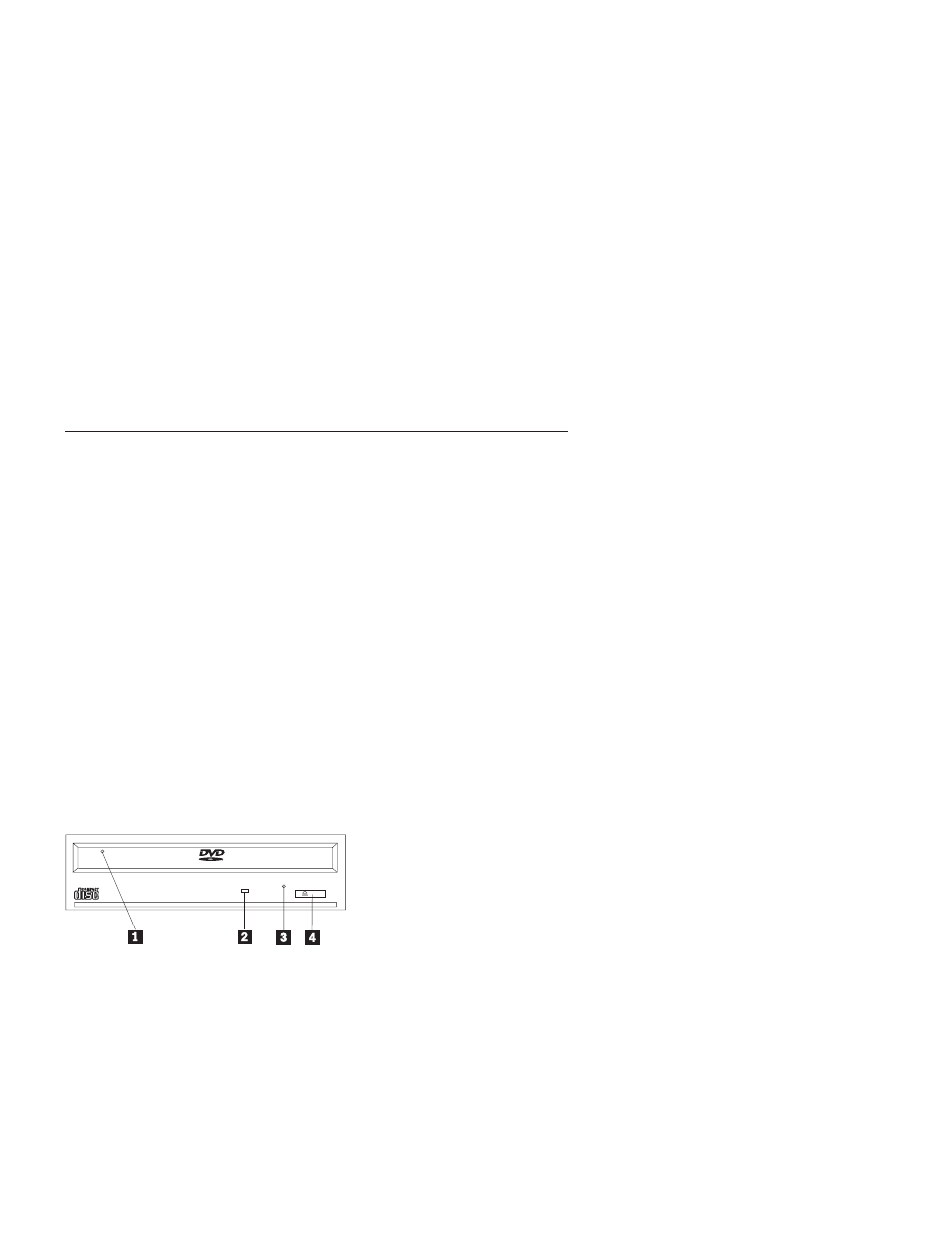

Front view of the drive
R A M/R
1 Disc drawer
This drawer is where you load and unload a disc.
2 Busy indicator
This light comes on when the drive reads from, writes to, or plays a disc.
3 Emergency eject hole
Installation and user’s guide 1-3
