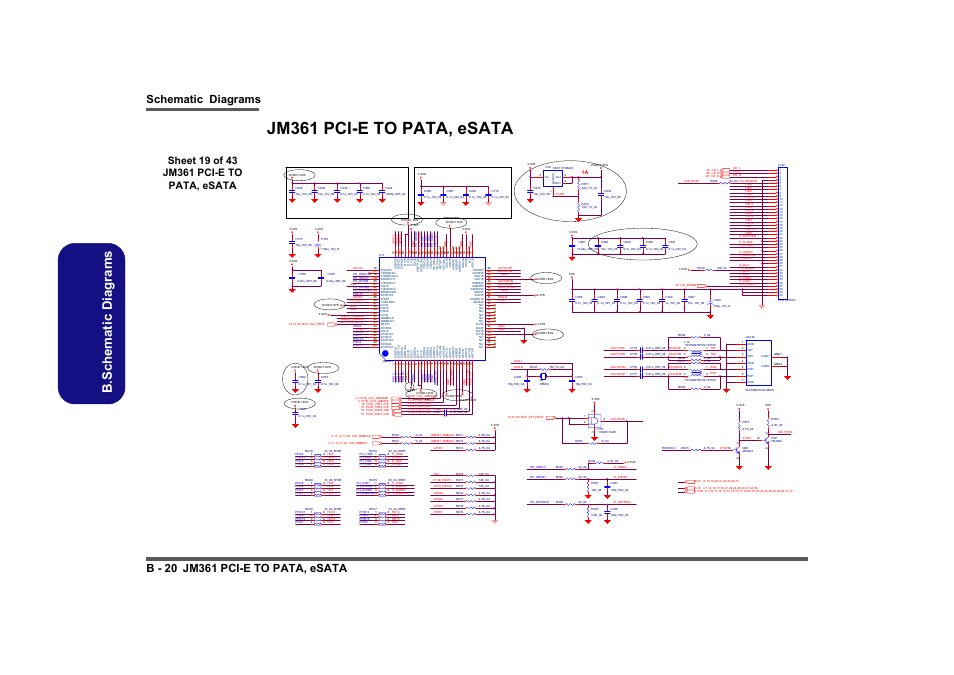

Jm361 pci-e to pata, esata, Sheet 19 of 43 jm361 pci-e to pata, esata, Jmb363 – Intel LV19C Series User Manual

Page 73: B.schematic diagrams, Esata

Text mode
Original mode

Jm361 pci-e to pata, esata, Sheet 19 of 43 jm361 pci-e to pata, esata, Jmb363 | B.schematic diagrams, Esata | Intel LV19C Series User Manual | Page 73 / 97
