SECTION 1
DESCRIPTION

G. Air Fingers

The Air Finger Assemblies are made up of three parts as
follows (See Figure 1-7):

1. Outer Plate - The Outer Plate is the removable cover
with tapered holes, which directs the air stream onto the
product to be baked.

2. Inner Plate -The Inner Plate is vital to forming the
columnated air jets. It must be assembled onto the

manifold with its holes lined up with outer plate holes.

The inner plate is also manufactured with no rows of
holes. This type of finger is a non-columnating air finger.

3. Manifold - The Manifold is the assembly which slides
on tracks into the oven plenum.

4. Blank Plates- The Blank Plates are installed on the
plenum where air fingers are not required.

NOTE: On a PS200-R68 Series Red Lobster oven the 2 upper fingers (M3) have 3 rows of holes in the outer plate
and a non-columnating inner plate. The 4 bottom fingers (M6) have 6 rows of holes completely across the inner and
outer plates.

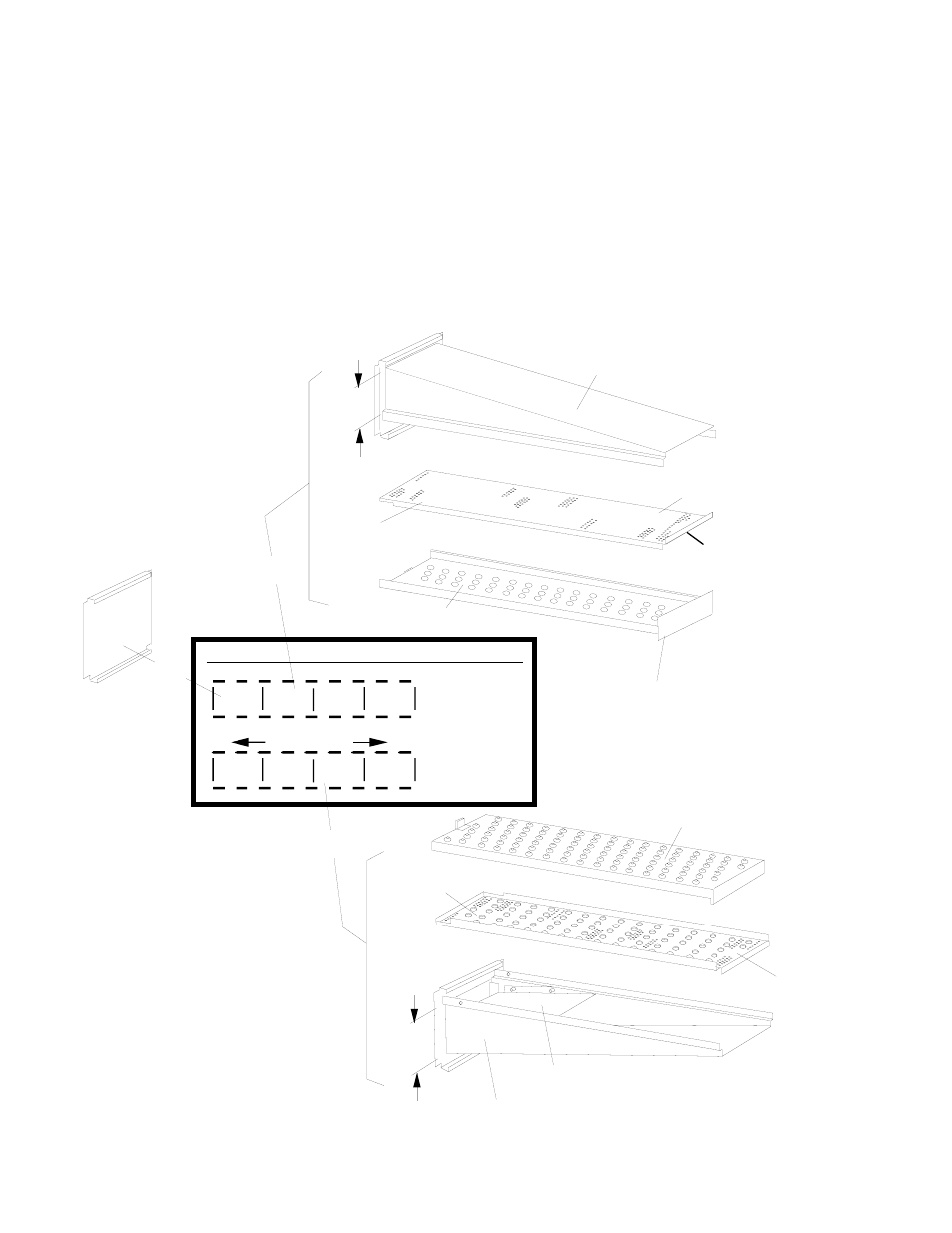

Figure 1-7. Fingers

Large Holes &
Perforated

Outer Plate with
3 Rows of Holes

5-5/32" Rear

Opening

M3RN

Product Direction (Either Direction)

Upper Fingers

Lower Fingers

RED LOBSTER FINGER CONFIGURATION IN OVEN

No Large Holes,
Perforated Only

Raised Front
(Stamped "UPPER")

Outer Plate
with 6 Rows
of Holes

M3RN
Finger

M6
Finger

Full
Blank

UPPER

Stamped "UPPER"

4-1/32" Rear

Opening

Baffle

Manifold

Inner
Plate

Manifold

Inner
Plate
