11

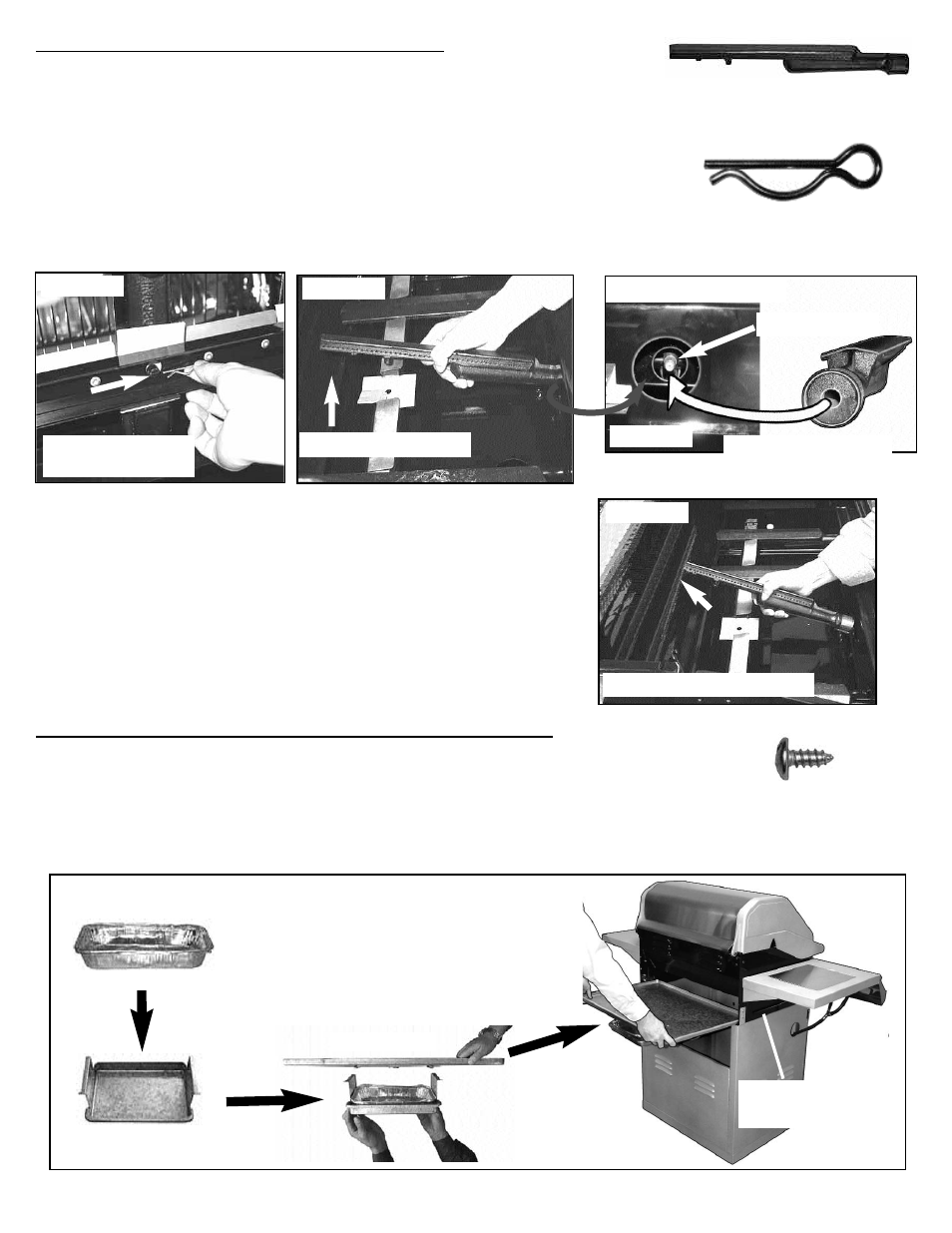

STEP 11) BURNER REMOVAL/RE-ASSEMBLY:
The Burners (49) are already installed in the grill. There is some
cardboard packing underneath each burner; it will burn off the first
time of use. If you wish to remove it:
1. Remove the burner pin. (FIG. 11A)
2. Lift the burner upwards. (FIG. 11B)
3. Gently pull the burner mouth away from the valve injector. (FIG. 11C)
4. Lift the burner out and remove the cardboard packing. (FIG. 11D)
(49) MAIN BURNER
To install the burners (Follow photos in reverse order):
1. Carefully slide the burner venturi hole over the valve
injector nozzle. The Burner venturi hole fits centrally
around the injector nozzle.
2. Lower the burner into the body.
3. Insert the locating stud through the support.
4. Lock into place by inserting the burner pin through the
stud from underneath.
Remove Burner Pin
from underneath. Lift Burner Upwards.
Lift Burner up and out.
View from inside Body
Injector nozzle.
FIG. 11A FIG. 11B
FIG. 11D
FIG. 11C
Burner venturi hole
fits centrally around
the injector nozzle.
(50) MAIN BURNER PIN
STEP 12) FOIL PAN/GREASE PAN/DRIP TRAY ASSEMBLY:
Insert the Foil Pan (51) into the Grease Pan (52). Slide the Grease Pan
underneath into the guides of the Drip Tray (53). Slide the Drip Tray with
Foil pan and Grease Pan into the bottom of the Bowl assembly. (Fig. 12)
Secure Drip tray into cart with two ST4.0 x 10 mm Screws.
(51) FOIL PAN
Fig. 12
(52) GREASE PAN
(53) DRIP TRAY
(13) ST4.0 X 10MM
SCREW
ON EACH SIDE
(13) ST4.0 x 10MM SCREW
