Rear panel – Milan Technology MIL-S8000G User Manual
Page 7
5
LED
Status Description
Green Power On
Power
Off
Power is not connected
Green The port is operating at the speed of 1000Mbps.
1000M
Off
No device attached or in 10/100Mbps mode
Green The port is operating at the speed of 100Mbps.
100M
Off
No device attached or in 10Mbps mode
Green The port is connecting with the device.
Blinks The port is receiving or transmitting data.
LK/ACT
Off
No device attached.
Yellow The port is operating in Full Duplex mode.
FD
Off
No device attached or in Half Duplex mode.
Table 2-1. Descriptions of LED Indicators
Rear Panel
The 3-pronged power plug and ventilation fan are located at the rear
panel. The switch will work with AC in the range 100-240V AC, 50-60Hz.

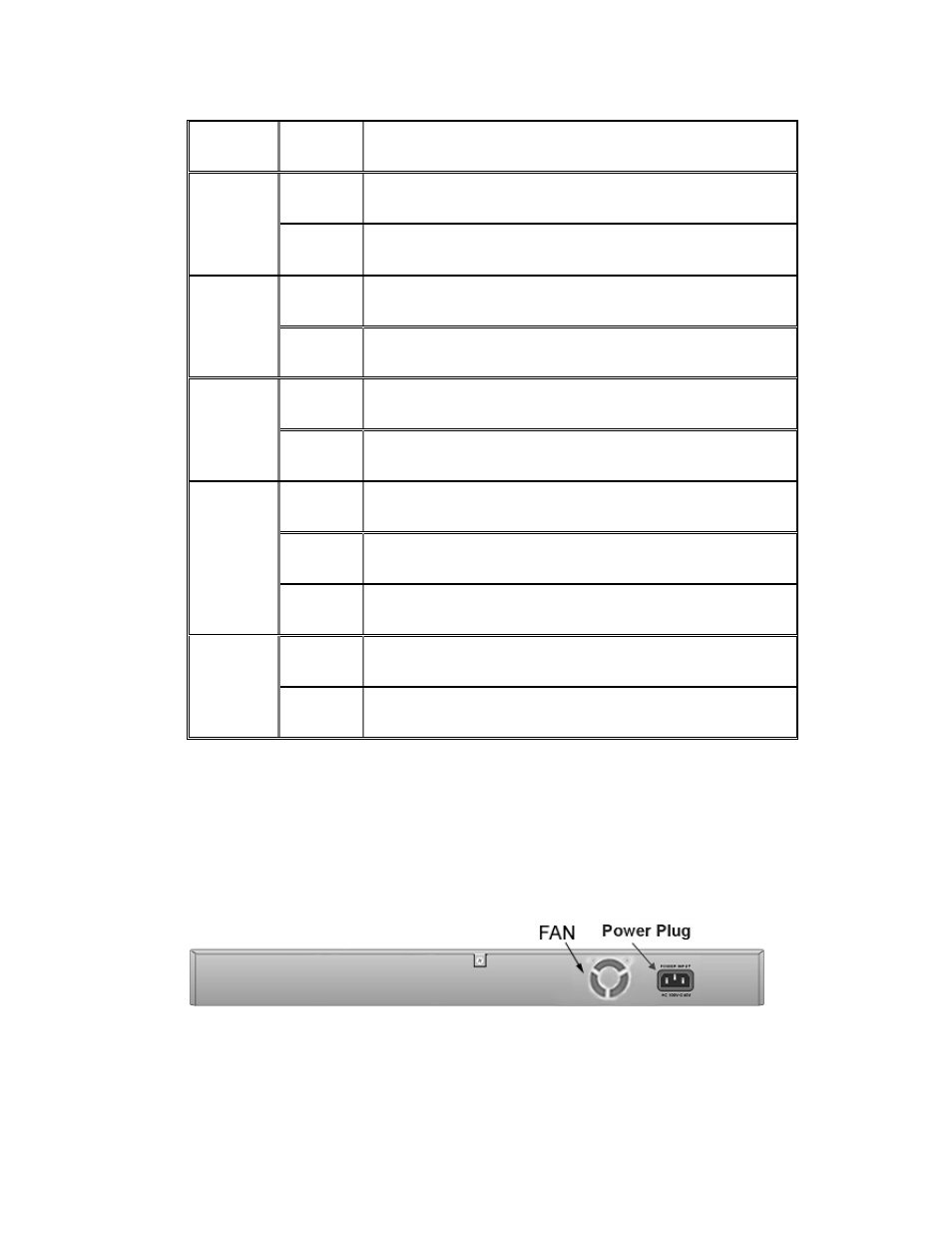

The rear panel of the MIL-S8000G Gigabit switch is shown below.
Figure 2-3. The Rear Panel of the MIL-S8000G Switch
