9
Workgroup A
Workgroup B

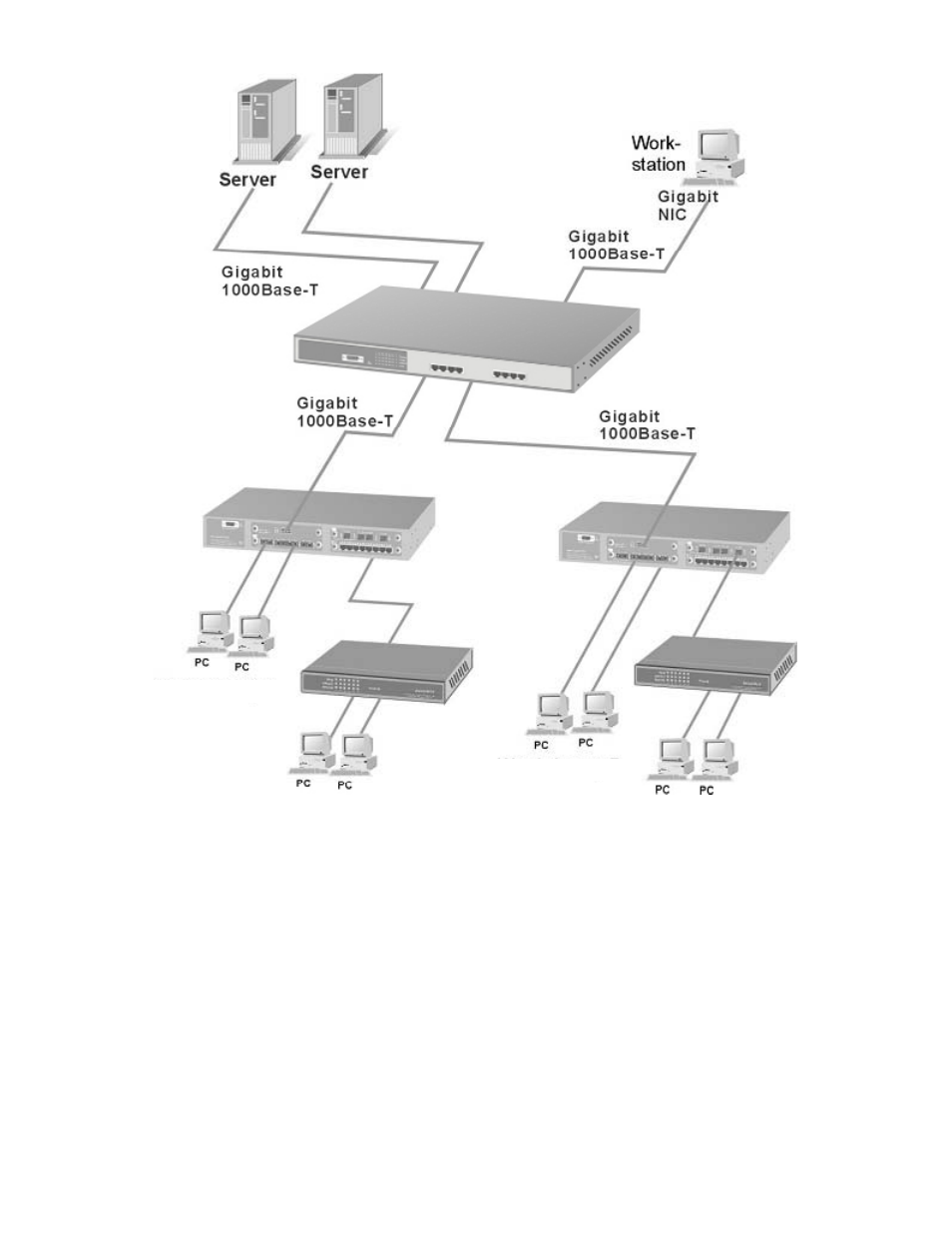

Figure 4-1. An example of a network connection, with the MIL-S8000G
Switch acting as the core switch.
This switch is an ideal solution for backbone connectivity. In the above
example, servers, department switches, and workstations are directly
connected to the core switch, the MIL-S8000G Switch.
