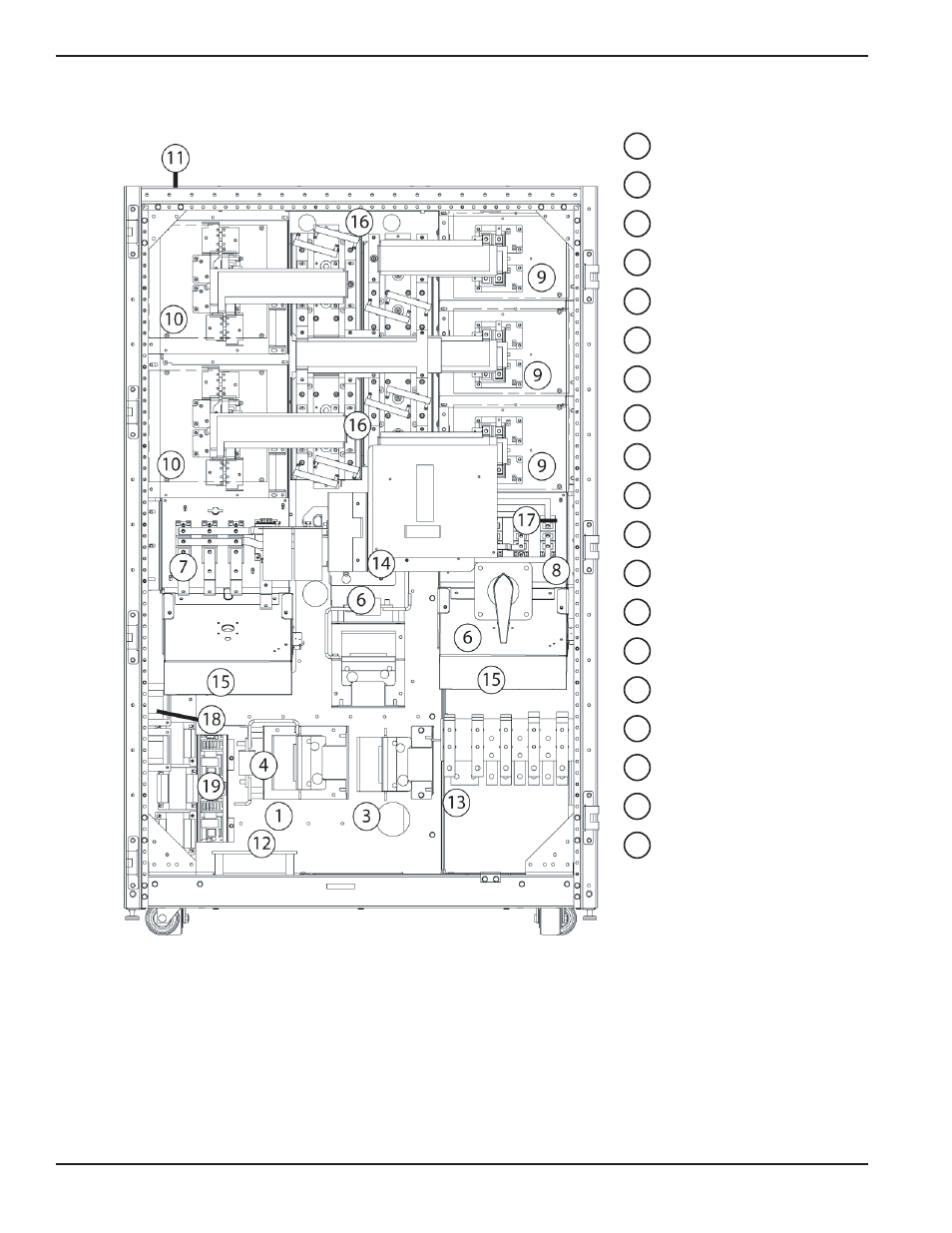

Figure 1-7: Front View of the Comet 100-150kVA.

Comet 40-150kVA

System Description and Specifications

1 — 6

86-160310-00 E00

(KA1) Input Contactor

(K3N) Output Contactor

(KA2) Bypass Input

(F1, F2, F3) Input Fuses

(F4, F5, F6) Output Fuses

(SR1) Rotary Switch

Rectifier

Static Switch

Inverter Assembly

Chopper Assembly

Interconnect PCA

Ground Busbar

Neutral Busbar (option)

Charger PCA

Heatsink Cooling Fans

DC Cap Modules

(TB5) Control Terminal Block

(FU1-FU21) Control Fuses

Power Supplies Assembly

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1
