9

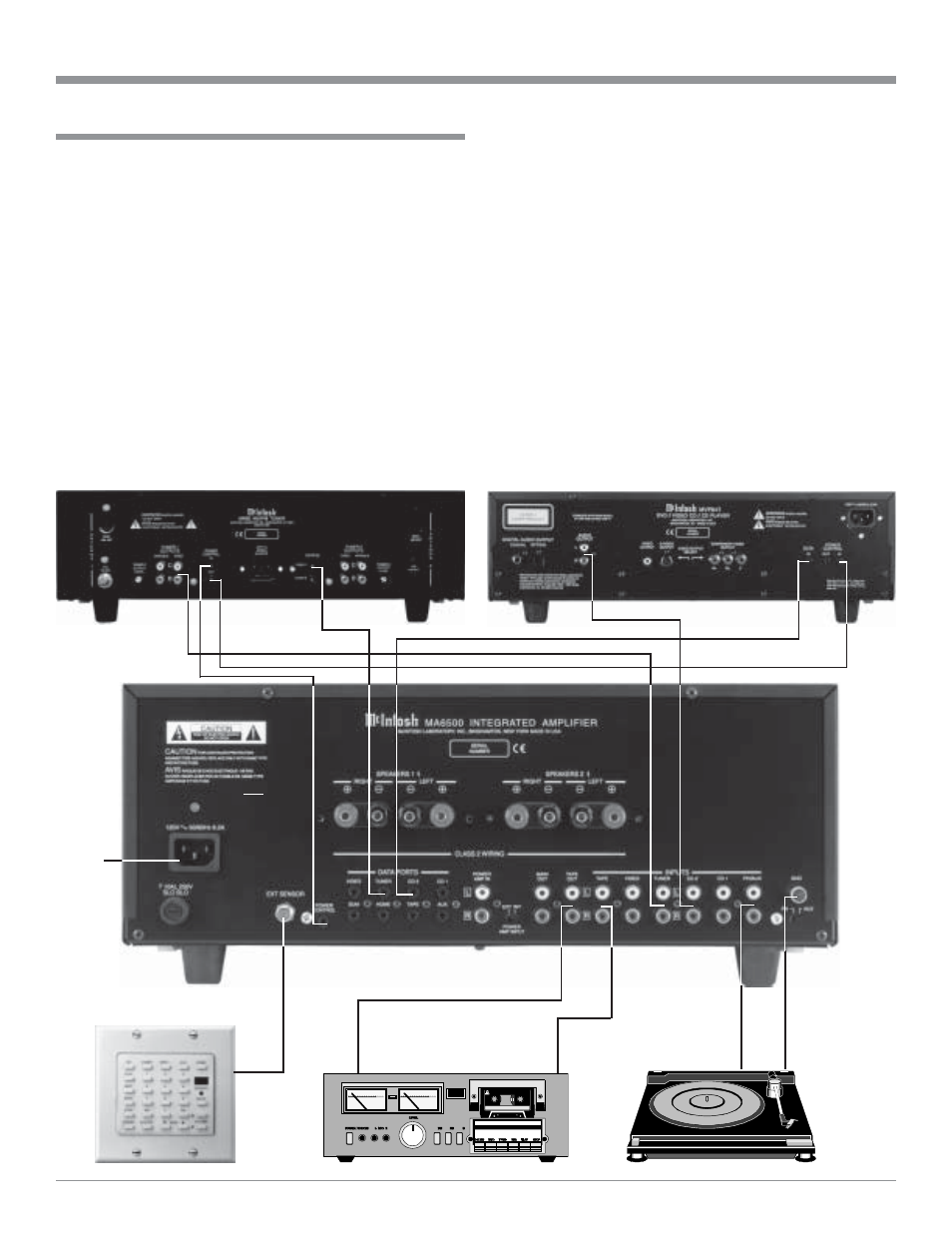

How to Connect Audio Components
1. Connect an Audio Cable from the McIntosh CD Player
Audio Outputs to the MA6500 CD2 INPUTS.
2. Connect an Audio Cable from a McIntosh Tuner 1 Out-
puts to the MA6500 TUNER INPUTS.
3. Connect an Audio Cable from a Turntable to the
PH/AUX INPUTS and the Turntable Ground Connec-
tion to the GND grounding post.
4. Connect an Audio Cable from the MA6500 TAPE
OUTPUTS to the Record Inputs of a Tape Recorder
and from the MA6500 TAPE INPUTS to a Tape Re-
corder Outputs.
5. Connect a Control Cable from the MA6500 POWER
CONTROL ACC Jack to the Power Control In on the
McIntosh Tuner.
6. Connect a Control Cable from the McIntosh Tuner
Power Control Out Jack to the Power Control In jack
on the McIntosh CD Player.
7. Connect a Control Cable from the MA6500 TUNER
DATA PORT Jack to the McIntosh Tuner Data In
(Tuner 1).
8. Connect a Control Cable from the MA6500 CD2
DATA PORT Jack to the McIntosh CD Player Data In
Jack.
9. Connect an RG6 or RG59U coaxial cable from the
EXTernal SENSOR Jack to a Keypad.
Note: A Wall Mounted IR Sensor may also be used in place
of the keypad.
10. Connect the MA6500 Power Cord to a live AC outlet.
To AC
Outlet
Tape Recorder Turntable
McIntosh CD Player McIntosh Tuner
How to Connect Audio Components
Out In
Keypad
