16

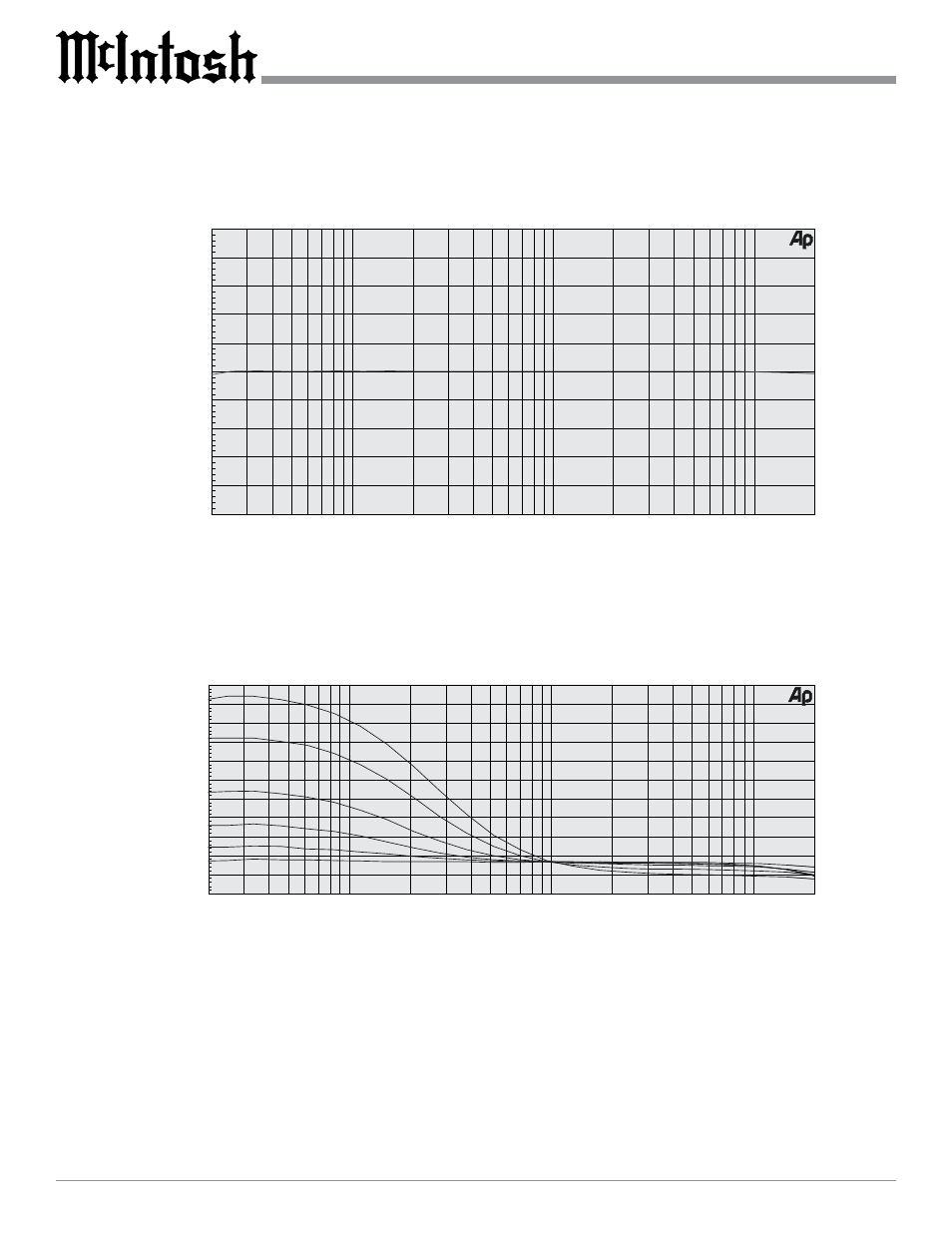

Loudness Compensation Range
dB
(Decibel)
Hz (Hertz)
-10
+10
-8
-6
-4
-2
+0
+2
+4
+6
+8
20 20k 50 100 200 500 1k 2k 5k 10k
dB
(Decibel)
Frequency Response
Hz (Hertz)
Note: The Loudness Compensation Range is a combination of
the Loudness Circuitry and the Volume Control’s
rotational position. When the Loudness Circuit is active,
the first 50% rotation of the Volume Control achieves
maximum loudness compensation, as shown on the
upper curve. When the Volume control is rotated beyond
the 50% point, the loudness compensation is gradually
reduced, as shown by the remaining curves.
-1
+10
+0
+1
+2
+3
+4
+5
+6
+7
+8
+9
20 20k 50 100 200 500 1k 2k 5k 10k
