USER GUIDE
10
Connecting CATx cables
Connect the CATx cables between the System ports of the Broadcaster/Transmitter
and Receivers/Receivers Long.
Where there are Line Splitters/ Line Splitters Long:
1. Connect the CATx cables between the System ports of the
Broadcaster/Transmitter and the System In ports of the Line Splitters/ Line
Splitters Long.
2. Connect the CATx cables between the System Out ports of the Line Splitters/
Line Splitters Long and the System ports of the Receivers/Receivers Long.
DS Vision 3000
Broadcaster
CATx cable to
Receiver unit
Player
computer
CATx cables to
Receivers or
Line Splitters
To Audio Out
To Mic. port
Stereo Audio cable
To Serial port
To
Serial
port
1 2 3 4 5 6 7 8
5VDC
CONTROL VIDEO IN
VIDEO OUT LOCAL
SERIAL
AUDIO OUT
AUDIO IN
To Audio In
VIDEO SERIAL
L L&R R
5VDC SYSTEM TUNING
Receiver side 1
Receiver side 2
Video cable
Serial Extender cable
To Serial port
Serial Download cable
SYSTEM IN
5VDC
SYSTEM OUT
TUNING
CATx cables to
Receivers
Screen
Speakers /
Audio Serial port /
device

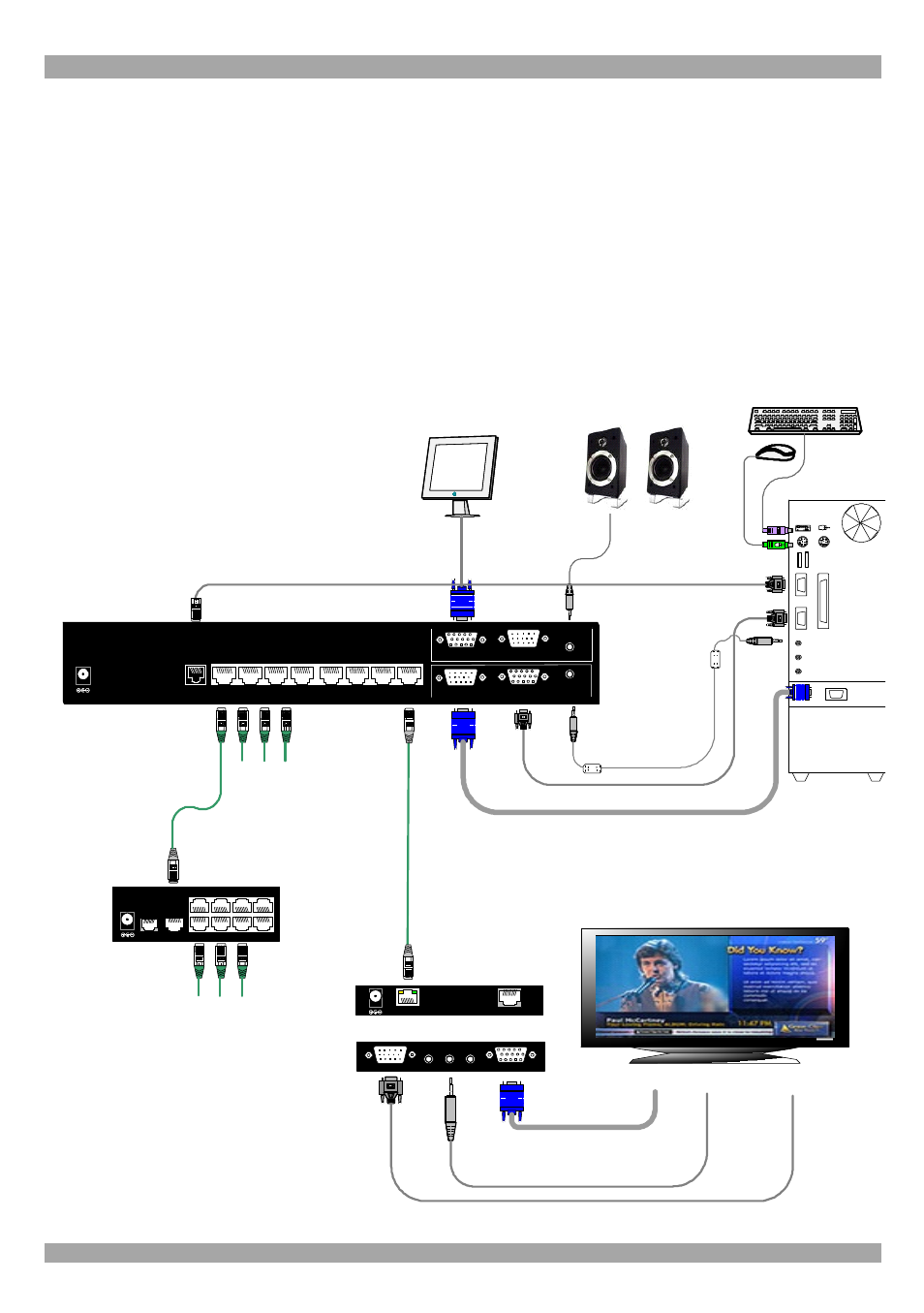

Figure 13 Connection diagram
