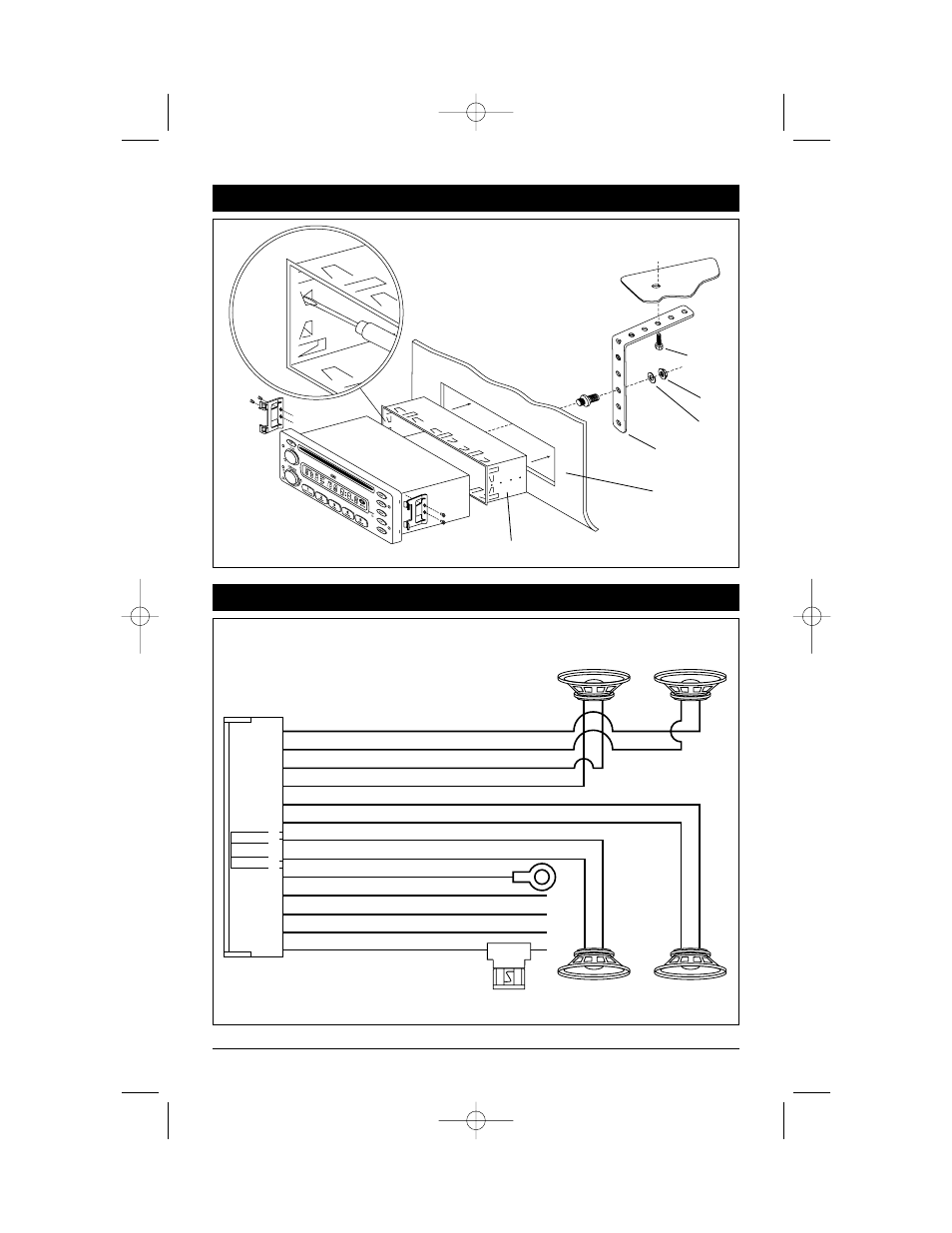

Installation

Nut

Washer

Sheet
Metal

Screw

Metal Strap

Dashboard

Mounting Sleeve

Left

Front Speaker

Left

Rear Speaker

+ -

+ -

Blue Wire: Power Antenna

Yellow Wire: 12 VDC Constant

Black Wire: Ground

Green Wire: Rear Left Speaker (+)

Green/Black Wire: Rear Left Speaker (-)

Right

Rear Speaker

Right

Front Speaker

+ -

+ -

White Wire: Front Left Speaker (+)

Gray/Black Wire: Front Right Speaker (-)

White/Black Wire: Front Left Speaker (-)

Gray Wire: Front Right Speaker (+)

Orange Wire: Dimmer

Red Wire: Switched

Purple/Black Wire: Rear Right Speaker (-)

Purple Wire: Rear Right Speaker (+)

13

12

11

10

9

8

7

6

5

4

3

2

1

1 5 A

Speaker Connection
