Quick Installation

• Make sure the computer is turned off.

• Attach the female end of the power cord (

Indication E

) to the AC adapter (

Indication D

), then plug the AC adapter

connector to the power “DC-IN (

Indication A

)” jack of the LCD monitor.

• When using a power cord, plug the male end into the wall socket.

• Plug one end of the 15 pin D-Sub signal cable (

Indication F

) in the “D-SUB” video signal connector (

Indication B

) of

LCD monitor. If you use digital signal, plug one end of the 24 pin DVI-D signal cable (

Indication G

) in the “DVI-D” video

signal connector (

Indication C

) of LCD monitor.

• Turn on the computer.

• Turn on the LCD monitor.

• Before your operations of the monitor, please refer to P.6 “Operations” first.

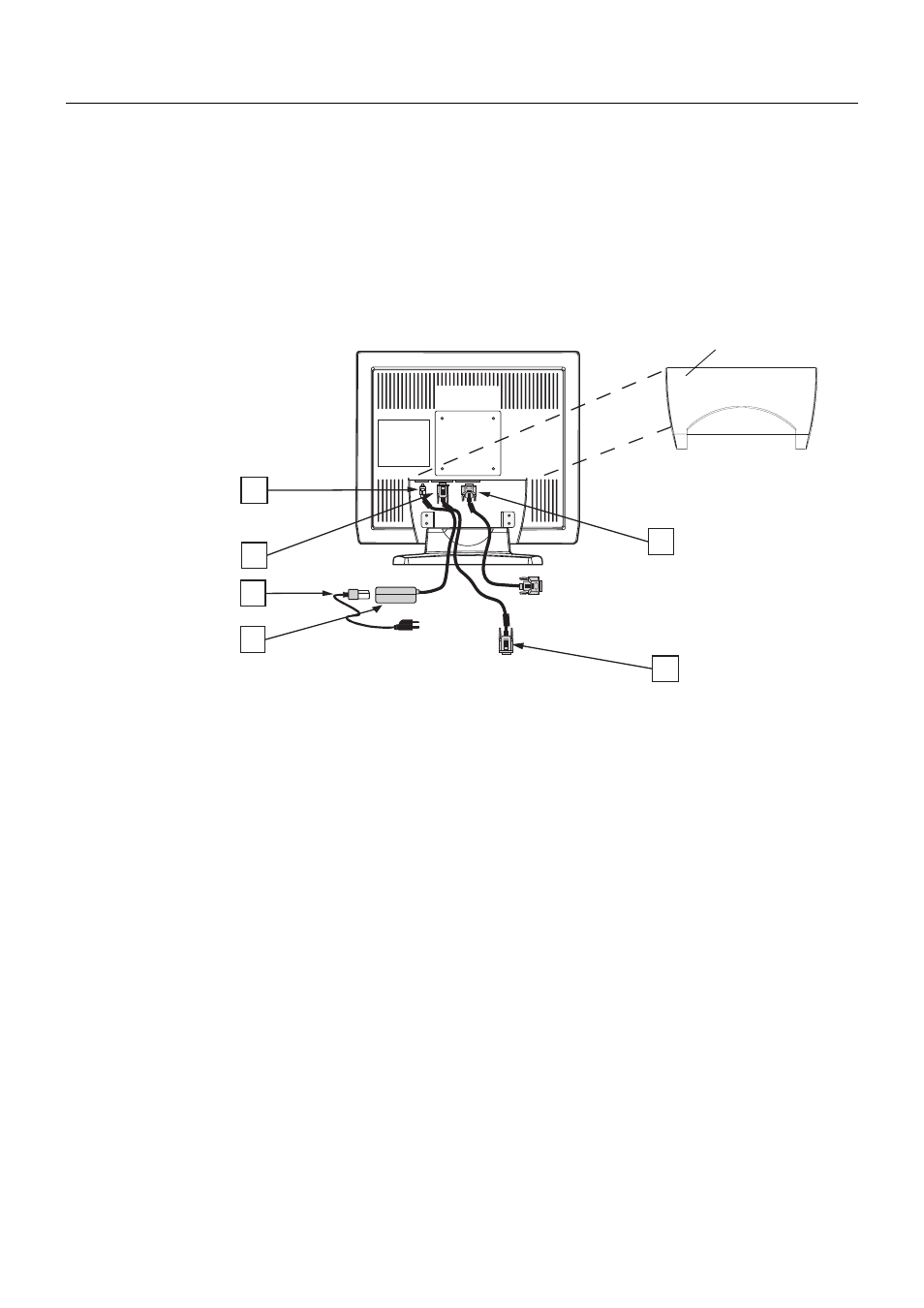

A. DC In

B. D-SUB

C. DVI-D

D. AC Adapter

E. Power Cord

F. D-Sub Signal Cable

NOTE :

When operating this LCD monitor with an AC125-240V power source, please refer to “Recommended Use”
for proper power code selection. Use supplied AC Adapter.

Connector cover
