OM-222 166 Page 17
803 993-C

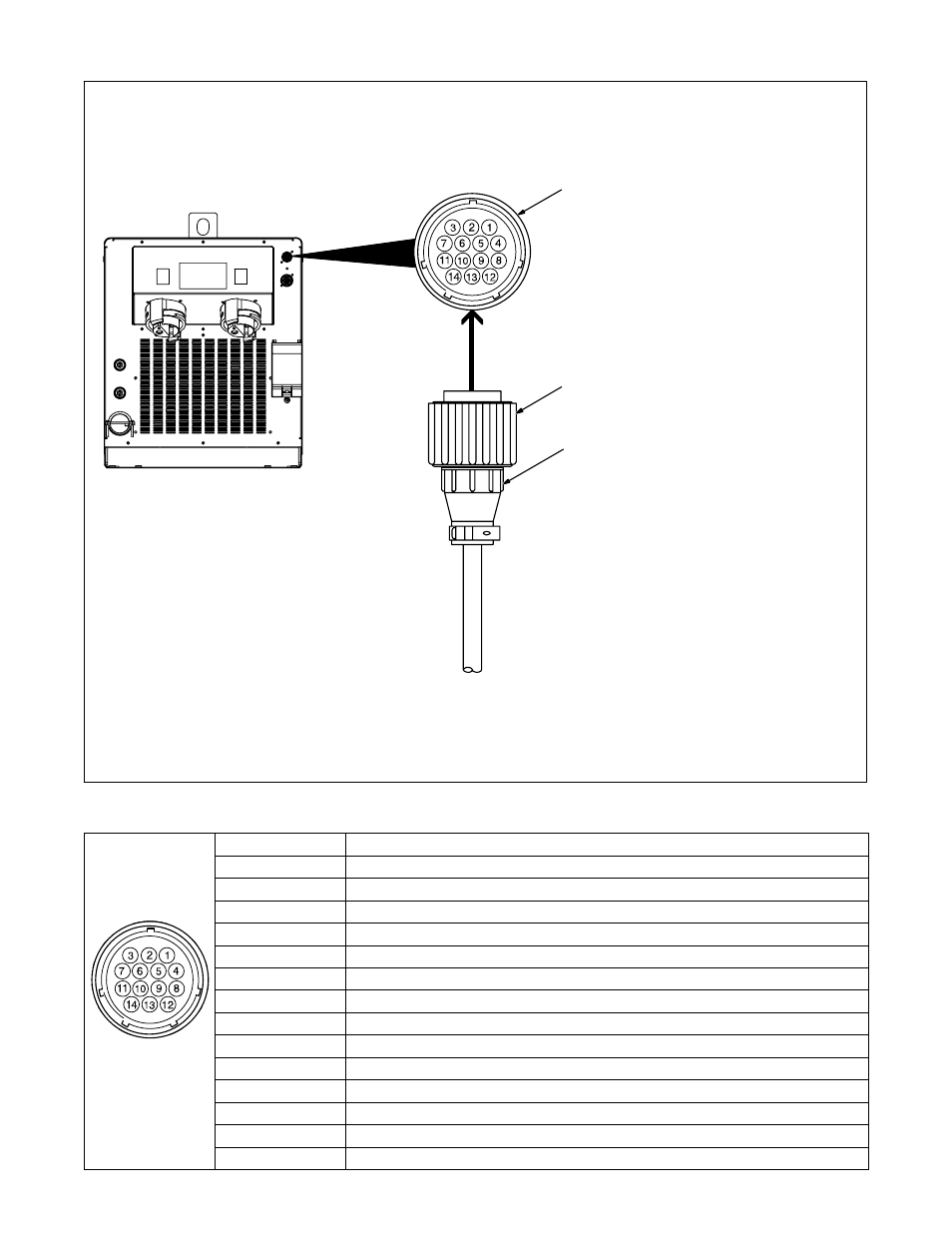

4-10. Temperature Recorder Receptacle RC9 Information And Connections
1 Plug
2 Threaded Collar
3 Temperature Recorder
Receptacle RC9 (See Section
4-11)
To connect to receptacle, insert
plug and tighten threaded collar.
3
2
1
1 2
4-11. Temperature Recorder Socket Information
Socket No. Socket Information
1 Thermocouple No. 1 (TC1), 0-10 volt dc signal [0V = −50° F (−46° C), 10V = 1500° F (816° C)]
2 Thermocouple No. 2 (TC2), 0-10 volt dc signal [0V = −50° F (−46° C), 10V = 1500° F (816° C)]
3 Thermocouple No. 3 (TC3), 0-10 volt dc signal [0V = −50° F (−46° C), 10V = 1500° F (816° C)]
4 Thermocouple No. 4 (TC4), 0-10 volt dc signal [0V = −50° F (−46° C), 10V = 1500° F (816° C)]
5 Signal Common
6 Thermocouple No. 5 (TC5), 0-10 volt dc signal [0V = −50° F (−46° C), 10V = 1500° F (816° C)]
7 Thermocouple No. 6 (TC6), 0-10 volt dc signal [0V = −50° F (−46° C), 10V = 1500° F (816° C)]
8 Unused
9 Unused
10 Chassis Ground
11 Unused
12 Unused
13 Unused
14 Unused
