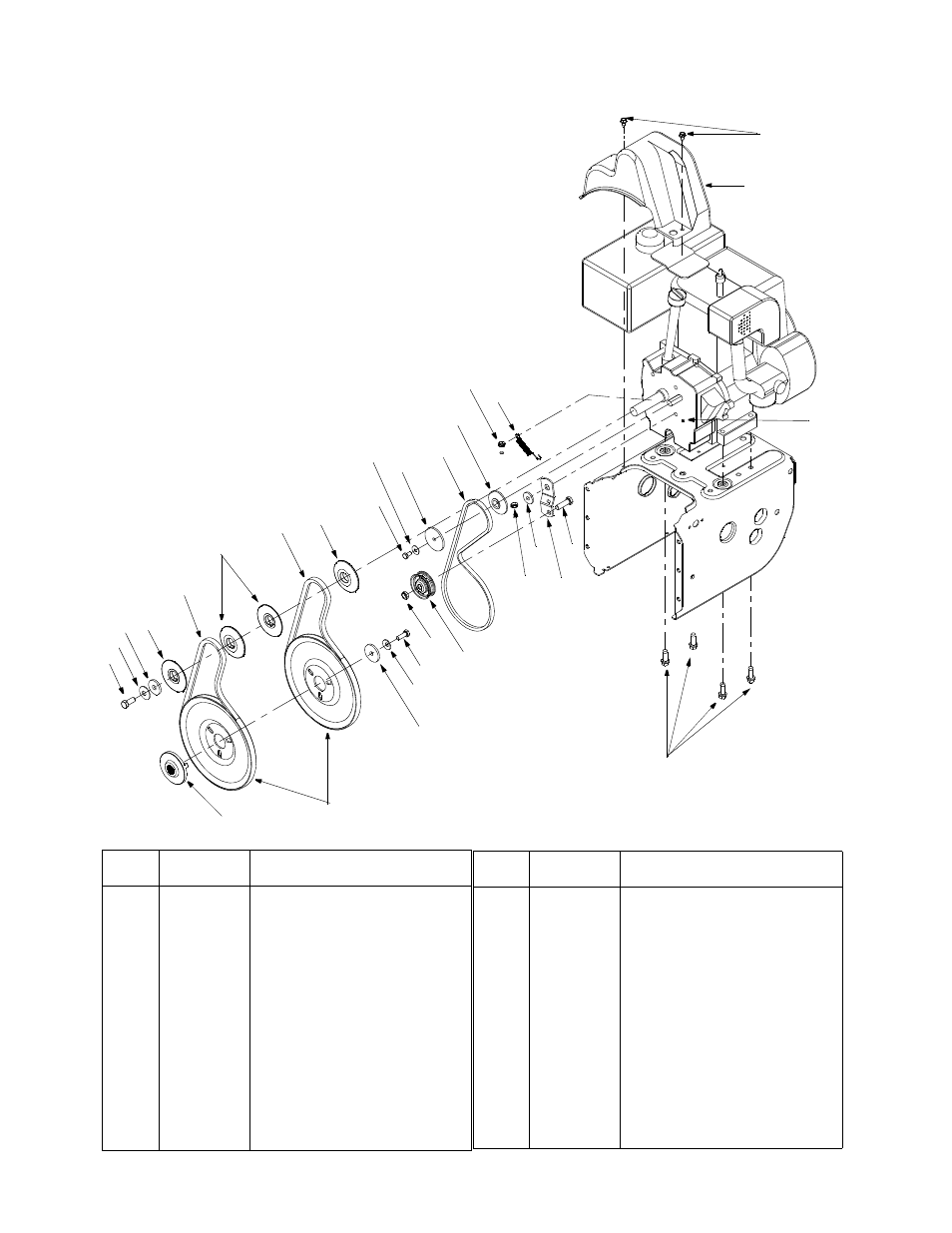

MTD 31AH553G401 - Manual (Page 24)

24
Model 553
11
3
4
17
8
1
18
3
26
20
25
14
2
22
9
6
12
16
23
21
23
21
23 13
15
5
24
19
7
10
Ref. No. Part No. Description
1. 05896A Idler Bracket
2. 710-0230 Hex Bolt 1/4-28 x 0.5” Gr.5
3. 710-0627 Hex Screw w/ Patch: 5/16-24 x
0.75”
4. 710-0654A Hex Washer HeadTT Sems Screw
5. 710-0696 Hex Bolt 3/8-24 x .875” Gr.8
6. 710-1245 Hex Screw w/ Patch: 5/16-24 x
.875” Gr.5
7. 710-1652 Hex Washer Head TT
8. 710-3005 Hex Screw: 3/8-16 x 1.0”
9. 712-0181 Top Lock Jam Nut: 3/8-16
10. 731-1324 Belt Cover
11. 732-0710 Extension Spring
12. 736-0242 Bellevile Washer
13. 736-0247 Flat Washer
14. 736-0270 Bell Washer
15. 736-0331 Bell Washer
16. 736-0505 Flat Washer
17. 737-3007 Grease
18. 748-0234 Shoulder Spacer
19. 748-0360 Adapter Pulley
20. 754-0346 V-Belt
21. 754-0430A Belt
22. 756-0313 Flat Idler
23. 756-0569 Pulley Half
24. 756-0967 Auger Pulley
25. 756-0986 Pulley Half
26. 756-0987 Pulley Half
