Microstar G41M - Manual (Page 20)

MS-7563 Mainboard
2-6

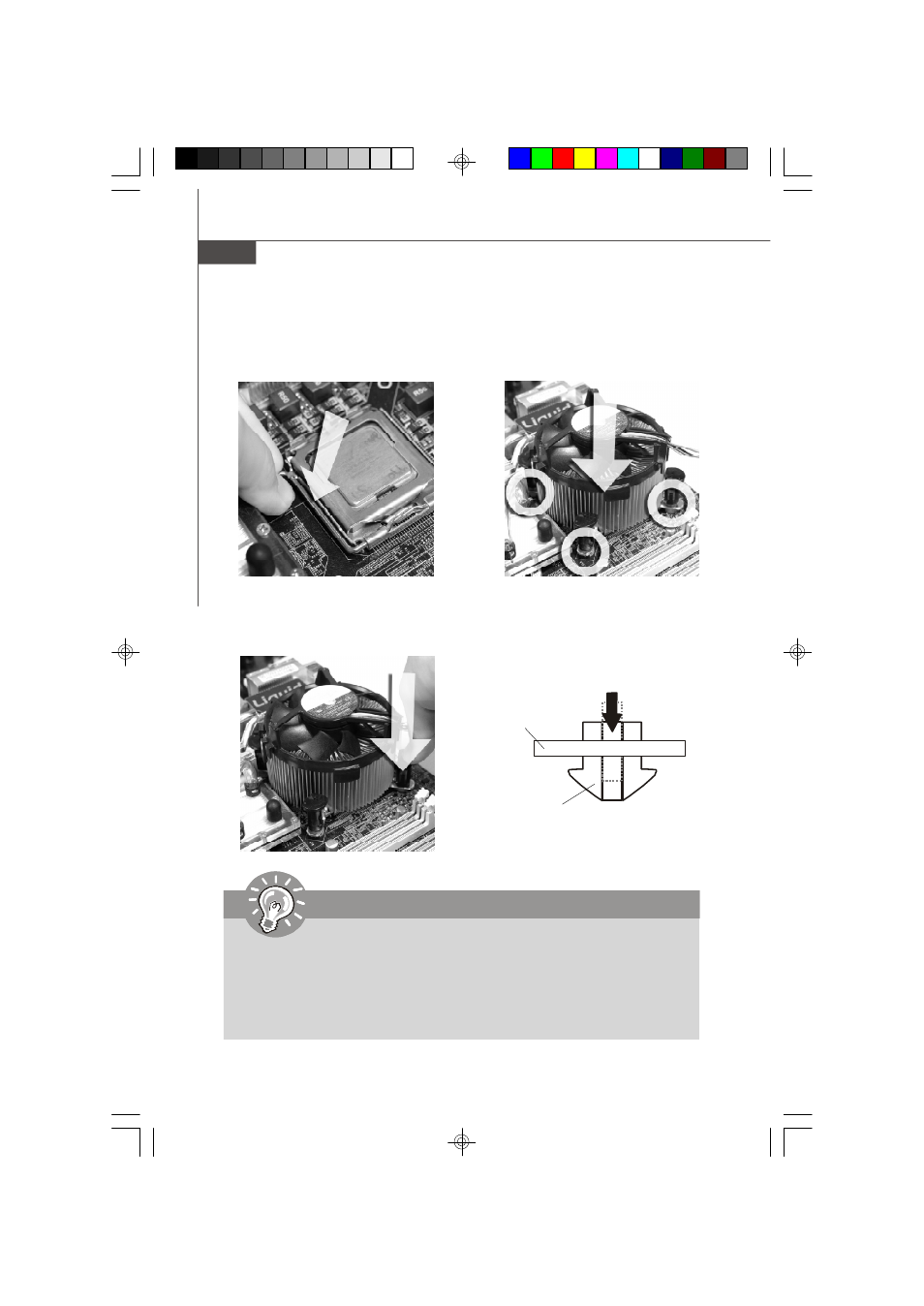

10. Align the holes on the mainboard
with the heatsink. Push down the
cooler until its f our c lips get
wedged int o t he holes of t he
mainboard.
12. Turn over the mainboard to con-
firm that the clip-ends are correctly
inserted.
9. Press down the load lever lightly
onto the load plate, and then se-
cure the lever with the hook under
retention tab.
Important
1. Read the CPU status in BIOS (Chapter 3).
2. Whenever CPU is not installed, always protect your CPU socket pin with the
plastic cap covered (shown in Figure 1) to avoid damaging.
3. Mainboard photos shown in this section are for demonstration of the CPU/
cooler installation only. The appearance of your mainboard may vary depend-
ing on the model you purchase.
11. Press the four hooks down to fasten
the cooler. Then rotate the locking
switch (refer to the correct direction
marked on it) to lock the hooks.
locking
switch
Mainboard
Hook
