32
PD-5050 Specifications
Screen Size 43.5"(H) ן24.5"(V) inches
1106(H) ן622(V) mm
diagonal 50"
Aspect Ratio 16 : 9
Resolution 1365(H) ן768(V) pixels
Pixel Pitch 0.032"(H) ן0.032"(V) inches
0.81(H) ן0.81(V) mm
Color Processing 4,096 steps, 68.7 billion colors
Signals
Synchronization Range Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1 , DVD* 1 , DTV* 1
Input Terminals
RGB
RGB 1 (Analog) mini D-sub 15-pin ן1
RGB 2 (Analog) BNC (R, G, B, H/CS, V) ן1* 2
MONLINK (Digital) HDMI
Video
INPUT 1 BNC ן1
INPUT 2 RCA-pin ן1
INPUT 3 S-Video: DIN 4-pin ן1
DVD/HD/DTV
COMP 1 RCA-pin (Y, PB[CB], PR[CR]) ן1* 1
COMP 2 BNC (Y, PB[CB], PR[CR]) ן1* 1, * 2
MONLINK HDMI
Audio Stereo RCA ן3 (Selectable)
External Control D-sub 9-pin ן1 (RS-232C)
Sound output 9W+9W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating 7.6A (maximum)
Power Consumption 435W (typical)
Dimensions 48.1 (W) ן30 (H)ן3.9 (D) inches
1222 (W) ן736 (H)ן99(D) mm
Weight 100 lbs / 45.4 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Altitude 0 to 9180 feet / 0 to 2800 m
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Altitude 0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input/Exit,
Volume up/down/ Menu/Exit
Remote Control Functions Power on/off, Menu/Exit,Volume up/
down, Adjust (UP, DOWN,LEFT,
RIGHT), Zoom up/down
OSM Functions PICTURE (PICTURE MEMORY/CONTRAST/
BRIGHTNESS/SHARPNESS/COLOR/TINT/NR/
COLOR TEMP./WHITE BALANCE/GAMMA/
LOW TONE/SET UP LEVEL/COLORVIEW/
FILM MODE/PICTURE MODE), AUDIO (BASS/
TREBLE/BALANCE/AUDIO INPUT1/AUDIO
INPUT2/AUDIO INPUT3), IMAGE ADJUST
(ASPECT MODE/V-POSITION/H-POSITION/V-
HEIGHT/H-WIDTH/AUTO PICTURE/FINE
PICTURE/PICTURE ADJ.),
SET UP (LANGUAGE*/BNC INPUT/HD
SELECT/RGB SELECT/HDMI SET UP/COLOR
SYSTEM/BACK GROUND/GRAY LEVEL/S1/
S2/DISPLAY MENU/MENU ADJUST/ALL
RESET), FUNCTION (POWER MGT./INPUT
SKIP/LONG LIFE [PEAK BRIGHT / ORBITER /
INVERSE/WHITE / SOFT FOCUS / ORBITER
MENU / MENU CONTRAST]), SIGNAL INFO.
*English, German, French, Italian, Spanish, Swedish,
Chinese, Russian
The features and specifications may be subject to change without
notice.
* 1 HD/DVD/DTV input signals supported on this system
480P (60 Hz)
480I (60 Hz) 525P (60 Hz)
525I (60 Hz) 576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz) 720P (60 Hz)
1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)
* 2 The 5-BNC connectors are used as RGB/PC2 and COMP2 input.
Select one of them under “BNC INPUT”.

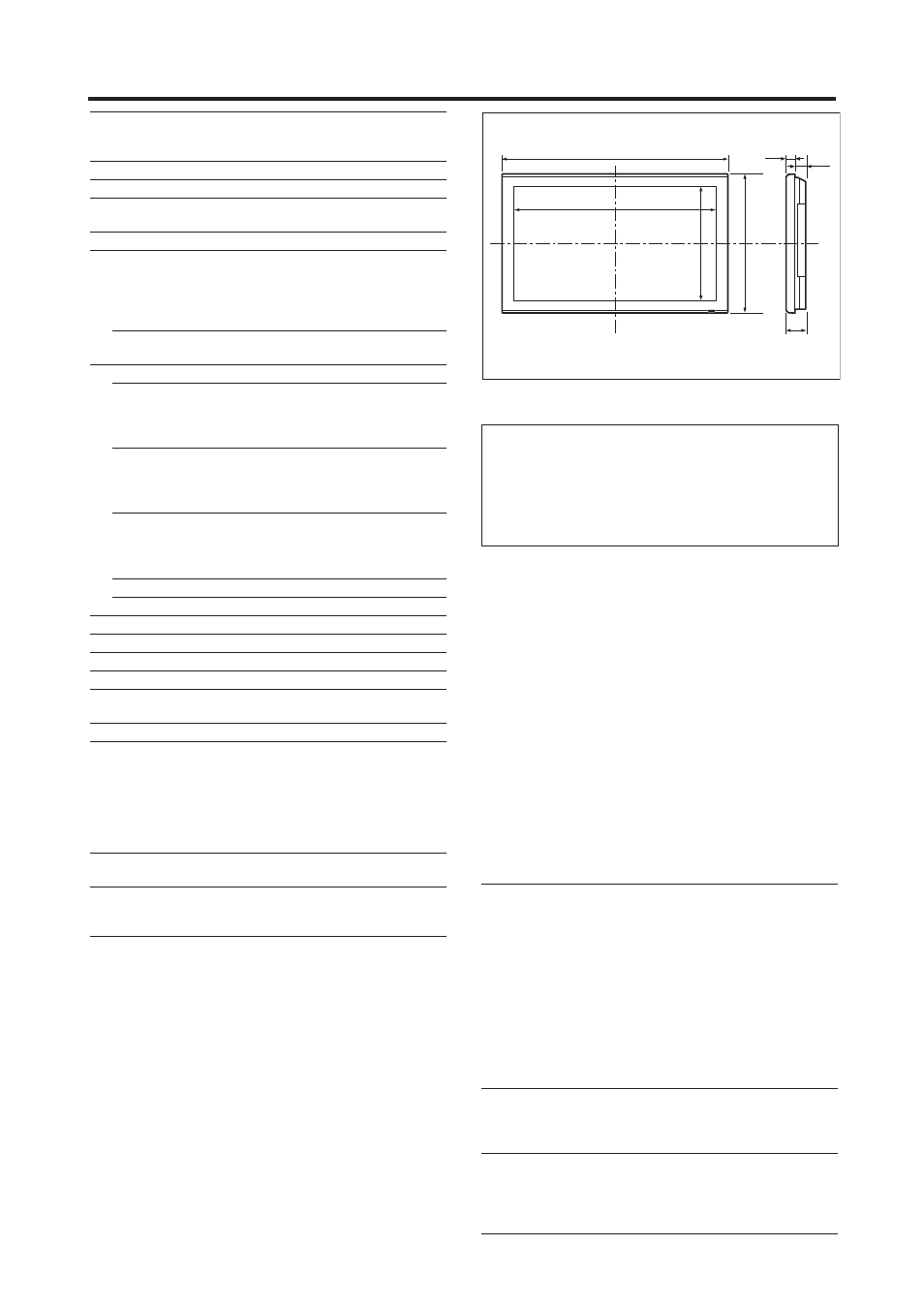

Units are in inch
(mm)
3.9"
(99)
1.6"
(41)
2.3"
(58)
48.1" (1222)
30" (736)
43.5" (1106)
24.5" (6
22
)
Other Features Motion compensated 3D Scan Converter (NTSC,
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Self Diagnosis,
Image Burn reduction tools (PEAK BRIGHT,
INVERSE/WHITE, ORBITER), Color
Temperature select (high/medium/mid low/low,
user has 4 memories), Auto Picture, Input Skip,
ColorView, Low Tone (3 mode), Gamma
Correction (4 mode), Plug and play (DDC1,
DDC2b, RGB3: DDC2b only),
Accessories Remote control with two AAA batteries, Power
cord, Owner’s Guide, Safety metal fittings, Ferrite
cores, Cable clamps, Registration Card, BNC-
RCA Adapters
Regulations UL Approved (UL 60950-1 and UL65000,
CAN/CSA C22.2 No.60950-1 and CAN/CSA-
E60065-00)
DOC Canada requirements
Meets FCC Class B requirements
Bezel color is silver.
