Servicing the Clutch Mechanism-

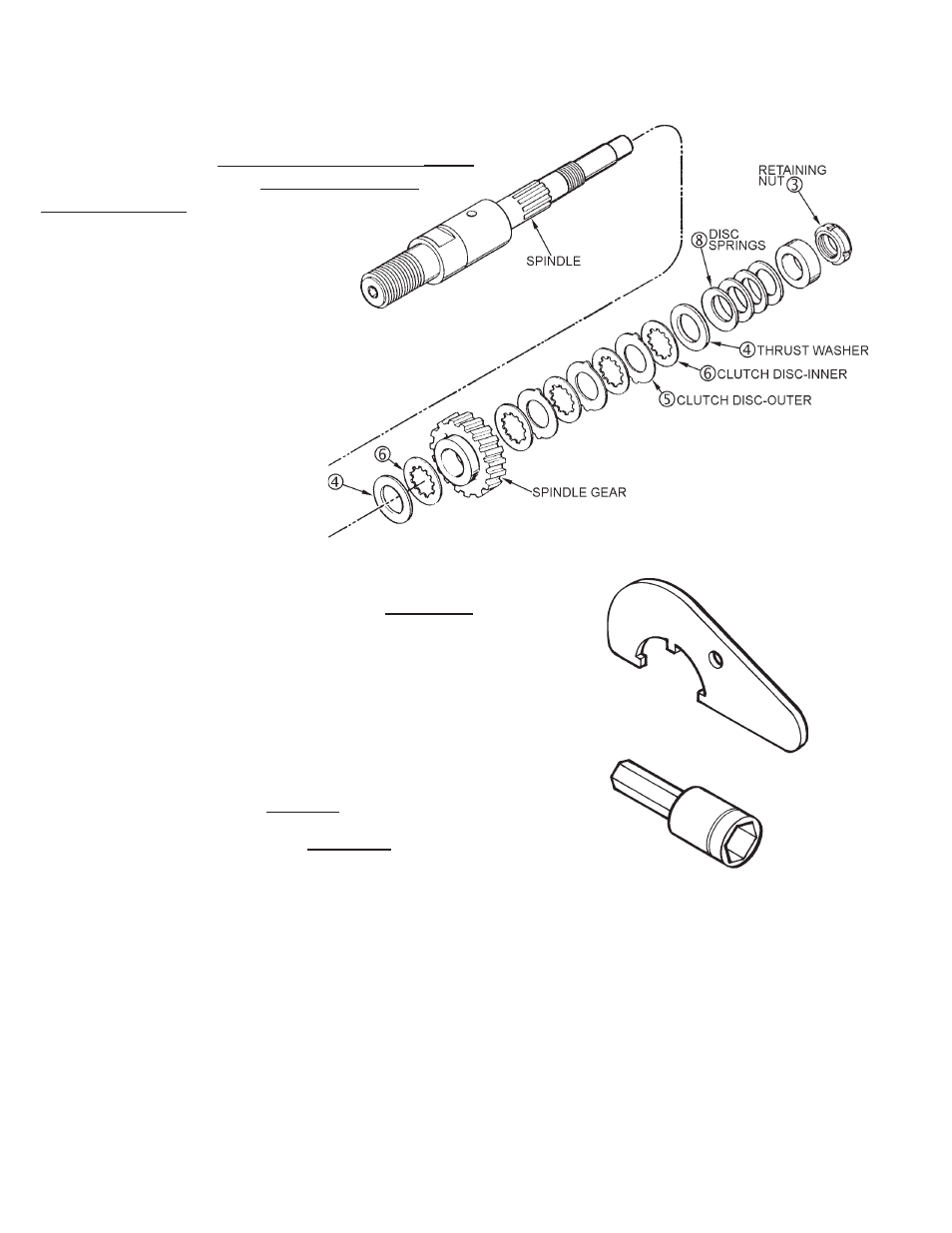

Torque Value for the Clutch Mechanism Retaining Nut (fig. no. 3).
Grease / Lubrication — when assembling the internal clutch component parts:
the Clutch Discs (fig. nos. 5 and 6), Thrust Washers (fig. no. 4) and
Disc Springs (fig. no. 8) are to be lightly coated with
grease
(Cat. No. 49-08-4220 type ‘J’) during their assembly
into the spindle gear.
Grease / Lubrication specification includes
coating internal bore of the spindle gear.
4 45-88-1140 Thrust Washers (2)
5 43-06-0160 Clutch Discs-Outer (3)
6 43-06-0150 Clutch Discs-Inner (5)
8 40-50-2150 Spring Discs
(4)
32-75-3430 Spindle Gear (1)
Service note: the assembly torque for the Clutch Mechanism Retaining Nut,
No. 06-57-1050 (fig. no. 3), which insures the static torque required to slip
the clutch mechanism, as lubricated, should be 45-50 ft-lbs.
With the gear case separated from the diaphragm & motor housing of the
Clutch Dymo-Drill motor —
•
insert & engage a 61-10-0660 retaining nut spanner with the notches
in the 06-57-1050 clutch adjustment retaining nut.
• with a 1/2" hex socket bit driver attached to a torque wrench,
interlock the male hex with the female hex found in the threaded end
of the dymo-drill spindle.
• turn the torque wrench clockwise , observing the torque reading
and tighten the clutch adjustment retaining nut on the rear of the
spindle shaft until a value of 45-50 ft-lbs is obtained.
Retaining Nut Spanner
Service Tool
No. 61-10-0660
1/2" Hex Bit Socket Driver,
Snap-On #psa16,
Pronto #5441½
or equivalent
