ST4125G/ST6125G SUBMERSIBLE PUMP• OPERATION MANUAL — REV. #0 (11/18/10) — PAGE 9
3.94 in.
(100 mm)
5.90 in.
(150 mm)
15.47 in.
(393 mm)
6.97 in.
(177 mm)
12.72 in.
(323 mm)
16.89 in.
(429 mm)
6.97 in.
(177 mm)
12.72 in.
(323 mm)
34.21 in.
(869 mm)
28.9 in.
(734 mm)
11.89 in.
(302 mm)
11.89 in.
(302 mm)
4.57 in.
(116 mm)
30.67 in.
(779 mm)
35.67 in.
(906 mm)
4.57 in.
(116 mm)
ST4125G ST6125G

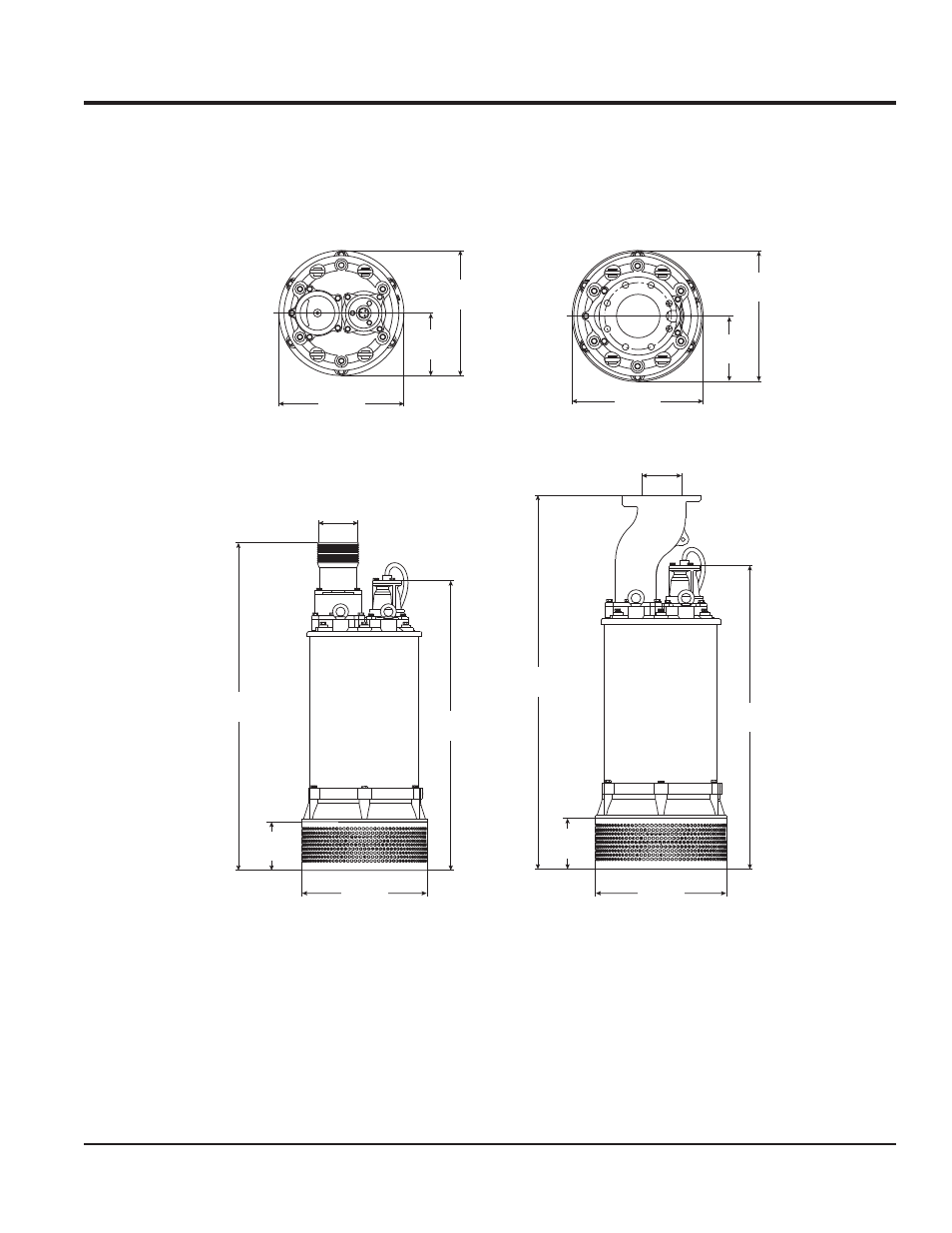

ST4125G/ST6125G SUBMERSIBLE PUMP — DIMENSIONS
Figure 1. ST4125G/ST6125G Pump Dimensions
