3
5

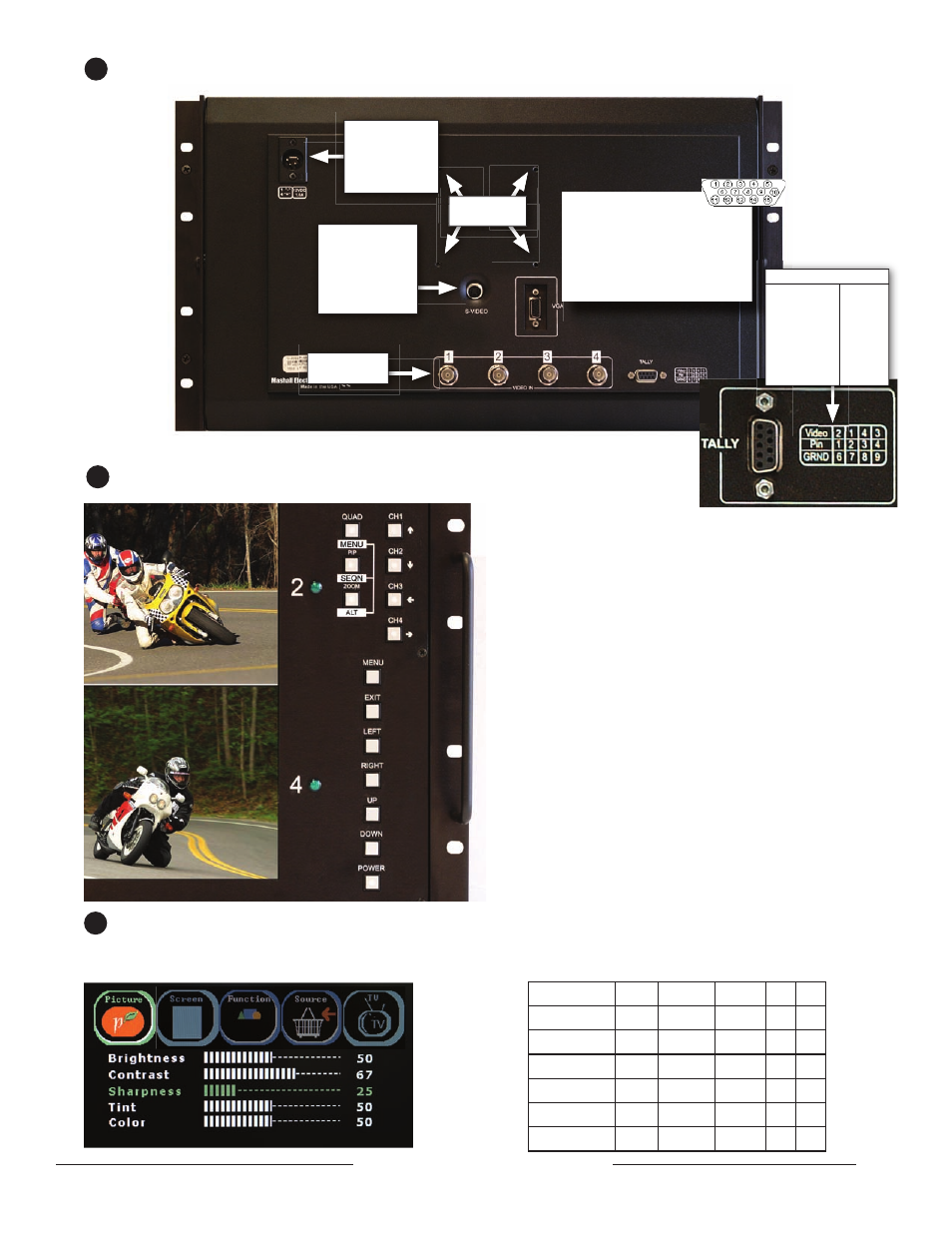

Connectors
6 Front Panel Indicators and Controls
Marshall Electronics
VESA 75mm
Attach Points
7 Menu Functions
Note: MENU select will toggle through 5 menus, PICTURE, SCREEN, FUNCTION, SOURCE and TV
1. Picture Menu
(Use UP/DOWN/LEFT/RIGHT buttons to select function)
YPrPb S-Video Video PC DVI
Brightness 9 9 9 9 9
Contrast 9 9 9 9 9
Sharpness 9 9 9
Tint 9 9 9
Phase 9 9
Color 9 9 9
Color temp 9 9
12 VDC from
power supply
4 Pin Male XLR
Pin 4 - Pos
Pin 1- Neg
4 Composite
Video Inputs
S-Video IN
4 Pin Din (Female)
Pin1 - GND
Pin2 - GND
Pin3 – Y in
Pin4 – C in
VGA/XGA Connector
PIN# SIGNAL PIN# SIGNAL
1 RED 9 NC
2 GREEN 10 NC
3 BLUE 11 NC
4 NC 12 NC
5 GND 13 HSYNC
6 RED SHIELD 14 VSYNC
7 GREEN SHIELD 15 NC
8 BLUE SHIELD Pin1- Green
Pin2- Red
Pin3-Amber
Pin4 Gnd -
Pin5-
Pin6-
Pin7- Pin8-
Pin 9-
Pin10-
Pin11-
Pin12-
Pin13-
Pin14-
Pin15-
Tally IN HD-15 Female
