Master Lock MGY5000C - Manual (Page 18)

18 107359-01
PORTABLE DIESEL GENERATOR
R
This list contains replaceable parts used in
your generator. When ordering parts, fol-
low the instructions listed under Replace-
ment Parts on page 14 of this manual.

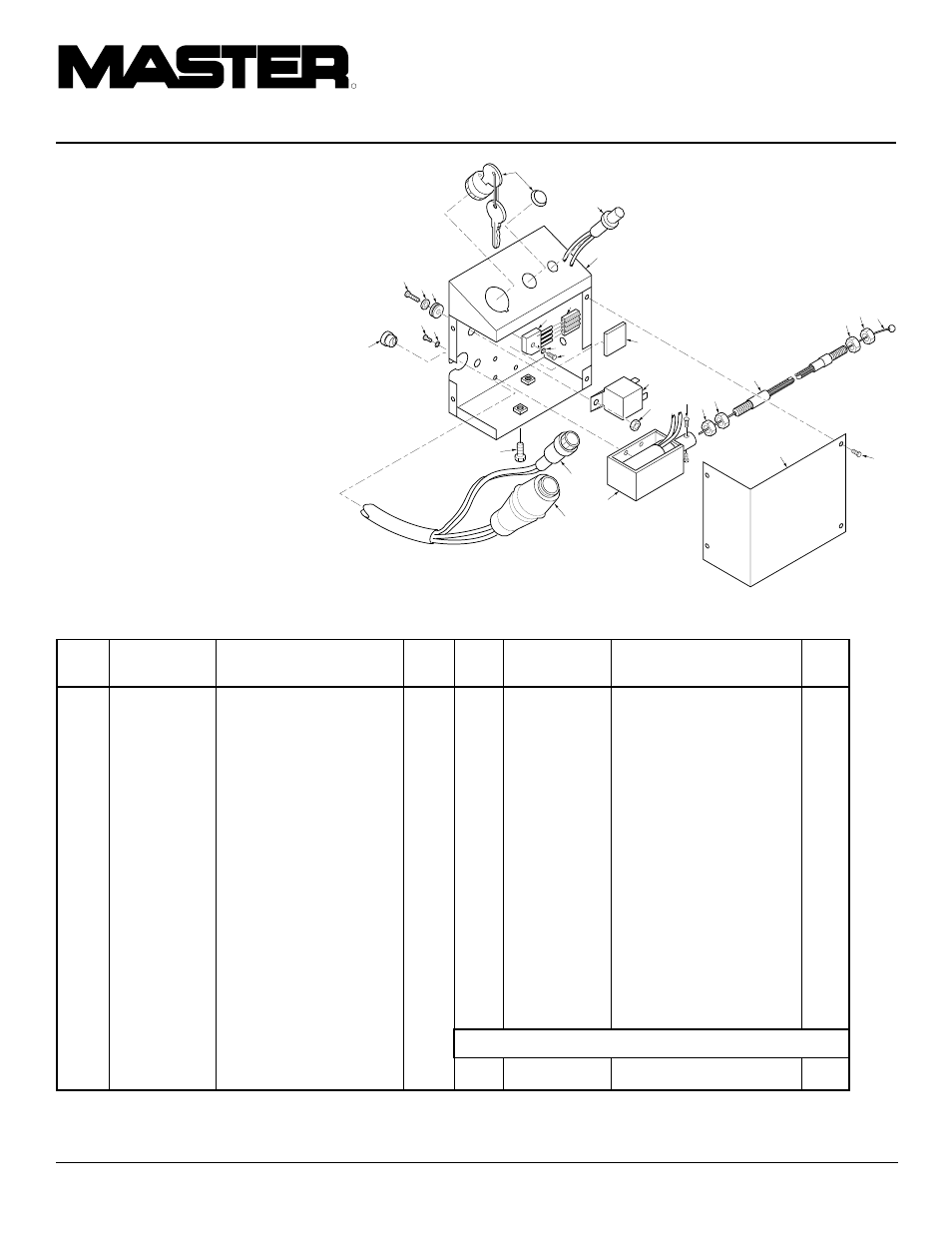

ILLUSTRATED
PARTS LIST
SWITCH CONTROL BOX
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 101037-01 Switch control box 1
2 22721000 Low oil light 1
3 099936-01 Key switch, lamp, and
harness assembly 1
4 101039-01 1/4-28 Keps Nut 4
5 099760-01 Strain relief bushing 1
6 101040-01 1/4-20 x 5/8"
Hex Head Sems 2
7 26498000 Relay 1
8 NTF-3C #10-32 Hex locknut 1
9 RN12000100 Adhesive-backed
PVC foam 1
10 * Connector 1
11 * #6-32 x 1/2"
Hex tapping screw 1
12 * #6 Internal-tooth
lockwasher 5
KEY PART
NO. NUMBER DESCRIPTION QTY.
13 26509000 Full bridge 1
14 26002006 #8-32 x 3/8" Screw 4
15 15020000 Grommet 1
16 WP-3C #10 Flat washer 1
17 26499000 #10-32 x 3/4"
Hex-head screw 1
18 26490000 Solenoid 1
19 26494000 M4 x 8 Hex-head screw 2
20 26492000 M3 x 8 Hex-head screw 4
21 101038-01 Control Box Cover 1
22 101036-01 Cable 1
23 101035-01 Conduit 1
† 101103-01 Switch Control Box
Assembly 1
101042-01 Wire Nut 1
* Available from your local hardware store
† Includes reference numbers 1 through 23
17
16 15
7
8
9
14
21
23
4
4
4
4
10
11
12
13
12
20
18
19
3
6
3
5
22
2
3
1
PARTS AVAILABLE - NOT SHOWN
