17 107359-01
OWNER’S MANUAL
This list contains replaceable parts used in
your generator. When ordering parts, fol-
low the instructions listed under Replace-
ment Parts on page 14 of this manual.

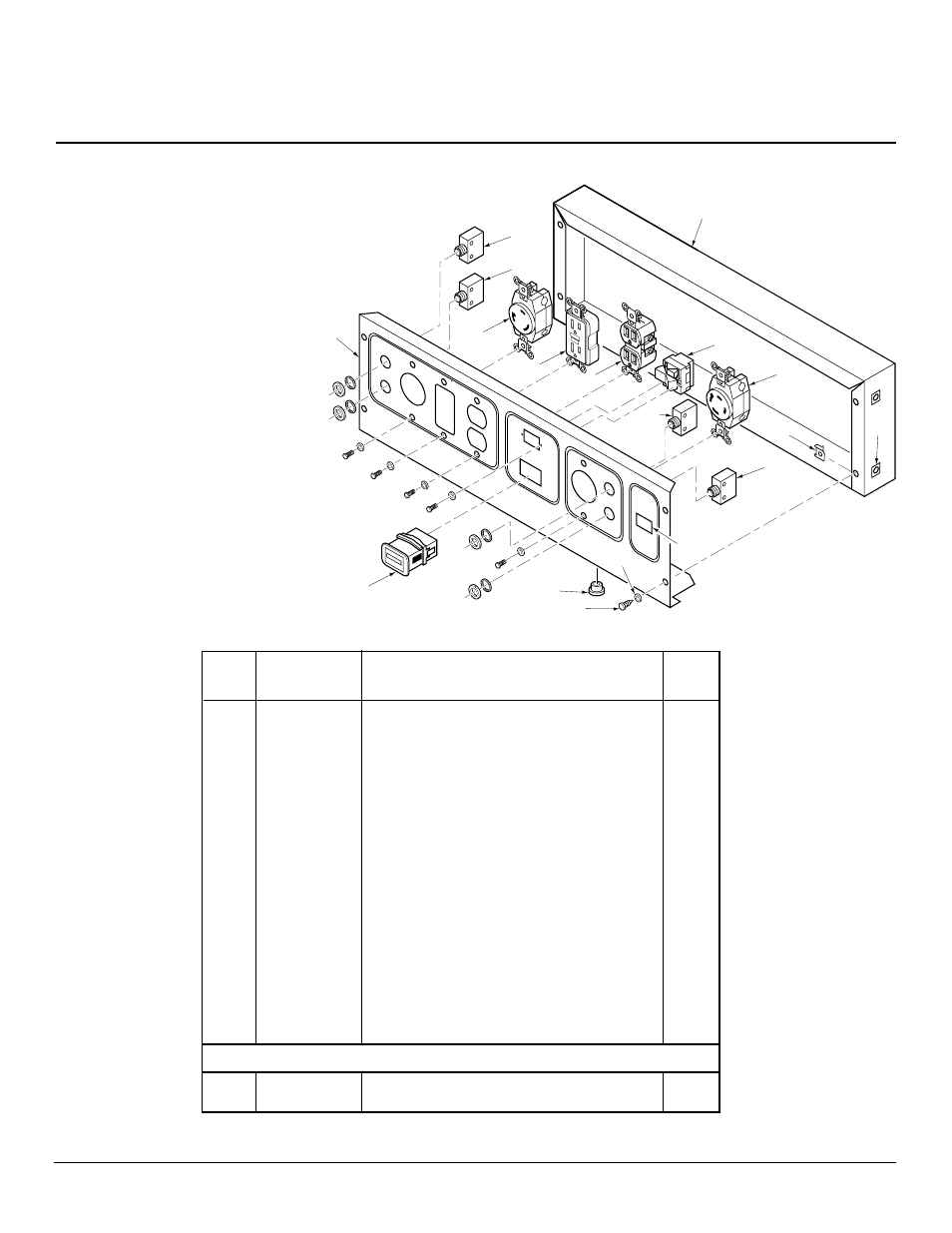

ILLUSTRATED
PARTS LIST
CONTROL PANEL
* Includes fastening hardware
† Includes reference numbers 1 through 15
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 103349-02 Control Panel 1
2 22616009 Circuit Breaker, 20 Amp * 2
3 099833-01 120V, 30A Twist-Lock Receptacle * 1
4 100445-01 120V, 15A Duplex (GFCI) Receptacle * 1
5 099956-01 Full Power Selector Switch * 1
6 22616011 Circuit Breaker, 25 Amp * 2
7 099834-01 120/240V, 20A Twist-Lock Receptacle * 1
8 101350-01 Hour Meter 1
9 099760-01 Bushing 1
10 24306006 Screw, #8-18 x 1/2" 4
11 100149-01 Control Box 1
12 22261000 Speed Nut, #8 8
13 WLI-2BL Lock Washer, #8 4
14 099997-01 Switch Plug 1
15 099836-01 120V, 15A Duplex Receptacle * 1
† 103348-02 Control Panel Assembly 1
PARTS AVAILABLE - NOT SHOWN
100177-07 Panel Schematic Decal 1
1 3
4
11
120 VOLTS
RESET
TEST
2
15
2
120/240 VOLTS
RESET
RESET
7
6
6
9
10
12 12
14
13
FULL POWER
SELECTOR
5
8
120 ONLY
120/240V
ENM 00000005
HOURS 1/10
