Page 43

4. Turn the headlamps on and make sure they work properly. If the

headlamp was correctly aligned before you changed the bulb, you
should not need to align it again.

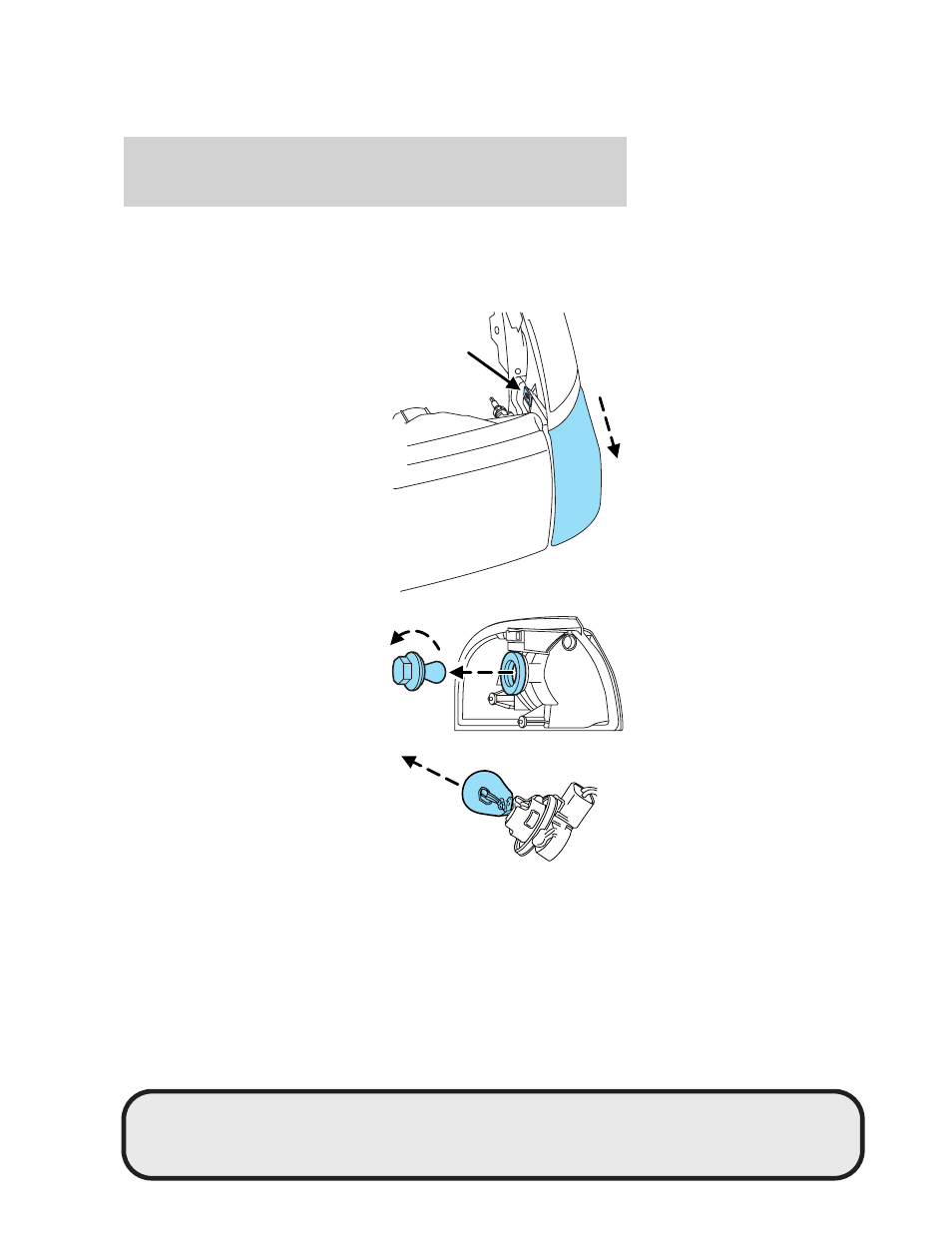

Replacing front park/turn side marker bulbs

1. Make sure headlamp switch is in

OFF position, then open the
hood.

2. Remove the screw from lamp

assembly.

3. Disengage lamp assembly by

pulling it straight forward. It has
a snap fit.

4. Rotate bulb socket

counterclockwise and remove
from lamp assembly.

5. Carefully pull bulb straight out

of socket and push in the new
bulb.

6. Install the bulb socket in lamp

assembly by turning clockwise.

7. Align the lamp on the vehicle

and push to snap in place.

8. Install the screw on lamp assembly.
